CALEFFI

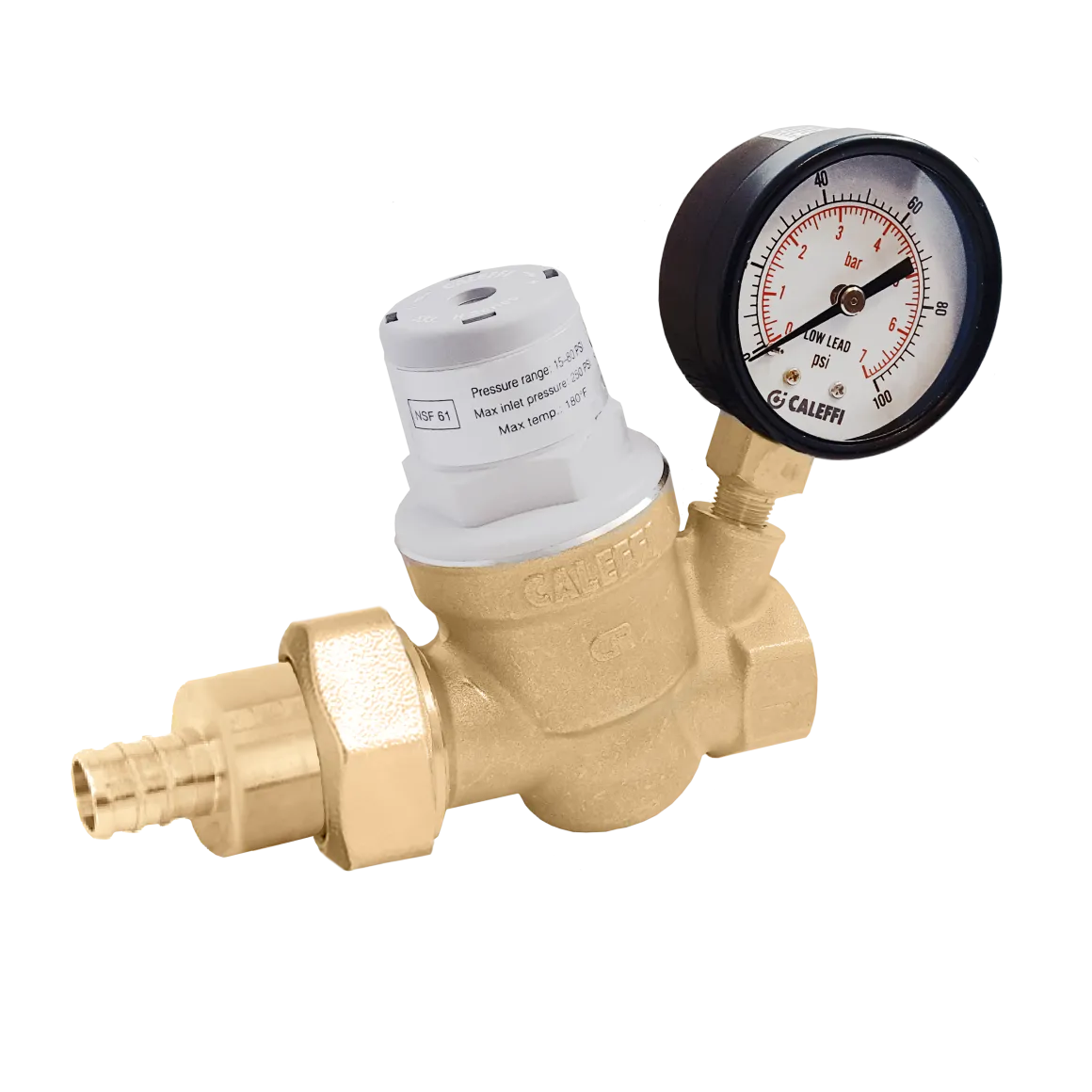

3/4" Compact Pressure Reducing Valve - PEX Crimp

3/4" Compact Pressure Reducing Valve - PEX Crimp

533751HA



Regular price $65.70
Sale price $65.70 Regular price $94.20
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Pressure reducing valves are devices which, when installed in water systems, reduce and stabilize the pressure of the water entering from the water supply main
• This pressure, in general, is too high and variable for domestic systems to operate correctly
• It is easily serviced with a replaceable cartridge and has an integral stainless steel filter (35 mesh), helpful for water systems that may contain sediment or debris
• A tamper-resistant cap is included to replace the standard cap to hide the adjustment screw to help prevent set point tampering

DIMENSIONS

LENGTH

4.56 in

HEIGHT

3 in

PRODUCT OVERVIEW



SPECIFICATIONS

Body Material

Brass

Dimensions

3 in H x 4-9/16 in L

End Style

PEX Crimp

Flow Rate

5.6 to 10 gpm

Media

Water

Nominal Size

3/4 in

Pressure Range

250 psi

Series

533

Softgoods Material

PTFE Piston Ring/EPDM Diaphragm

Temperature Rating

35.6 to 180 deg F

Trim Material

Stainless Steel

Type

Compact
