TRACPIPE

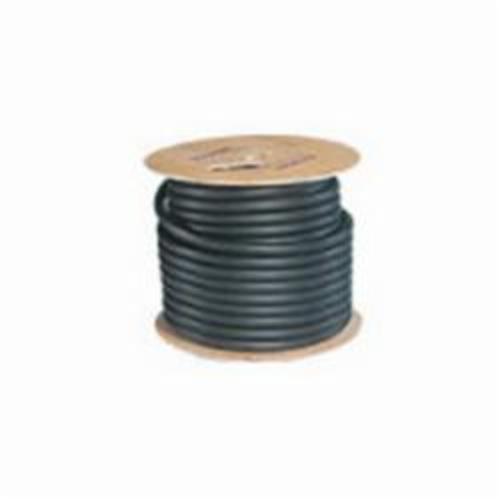

3/4" Counterstrike Underground Gas Pipe - Csst

3/4" Counterstrike Underground Gas Pipe - Csst

FGP-UGP-750-100

$9.76
$9.76 $17.04
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Black jacketed pre-sleeved flexible gas piping approved for direct burial in underground natural gas and liquefied petroleum (propane) gas applications, used with TracPipe® PS-II male adapter fittings or couplings
• Semi-rigid tubing
• Fully vent-capable polyethylene sleeve
• 2400 deg F tubing melting point
• 350 deg F jacket melting point
• UV/Ozone resistant polyethylene jacket
• 1-3/4 in L jacket strip
• CSA international evaluation report - 125 psig max operating pressure, 3/8 in through 1-1/4 in
• Must be installed in accordance with the TracPipe® design guide and installation instructions and all applicable codes
• TracPipe® PS-II/CounterStrike® CSST

DIMENSIONS

WEIGHT

43 lb

WARRANTY

1 Year Limited

DOCUMENTS & RESOURCES

Product Brochure

PRODUCT OVERVIEW

A pre-sleeved, "one-step" gas installation system for underground, rooftop, or exterior wall applications. TracPipe® PS-II can be installed under buildings, slab, roads, driveways - it's perfect for gas installations in a variety of applications where speed, reliability, and safety are paramount.

SPECIFICATIONS

Domestic/Import

Domestic

End Style

CSST

Inside Diameter

0.82 in

Material

300 Stainless Steel

Nominal Size

3/4 in

Outside Diameter

1.32 in

Specifications

ANSI LC1/CSA 6.26, ANSI Z223.1, ASTM A240, CAN/CSA B149.1, IAPMO (UPC) File No 4665, ICC Code (IFGC, IPC), ICC PMG 1052, NFPA 54/58, UL Listed, UPC Listed

Temperature Rating

-20 to 200 deg F

Wall Thickness

0.01 in

Working Pressure

25 psi
