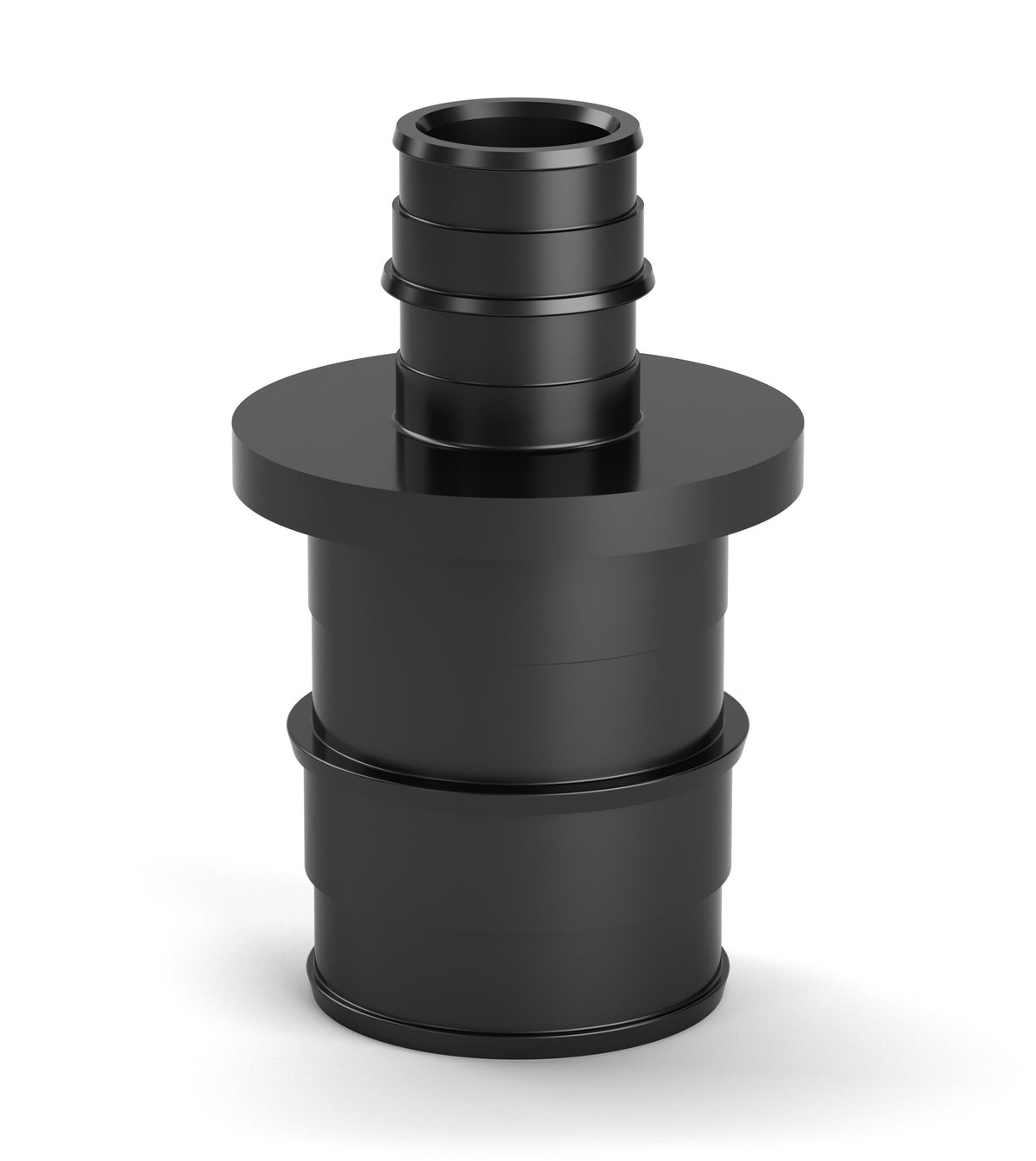

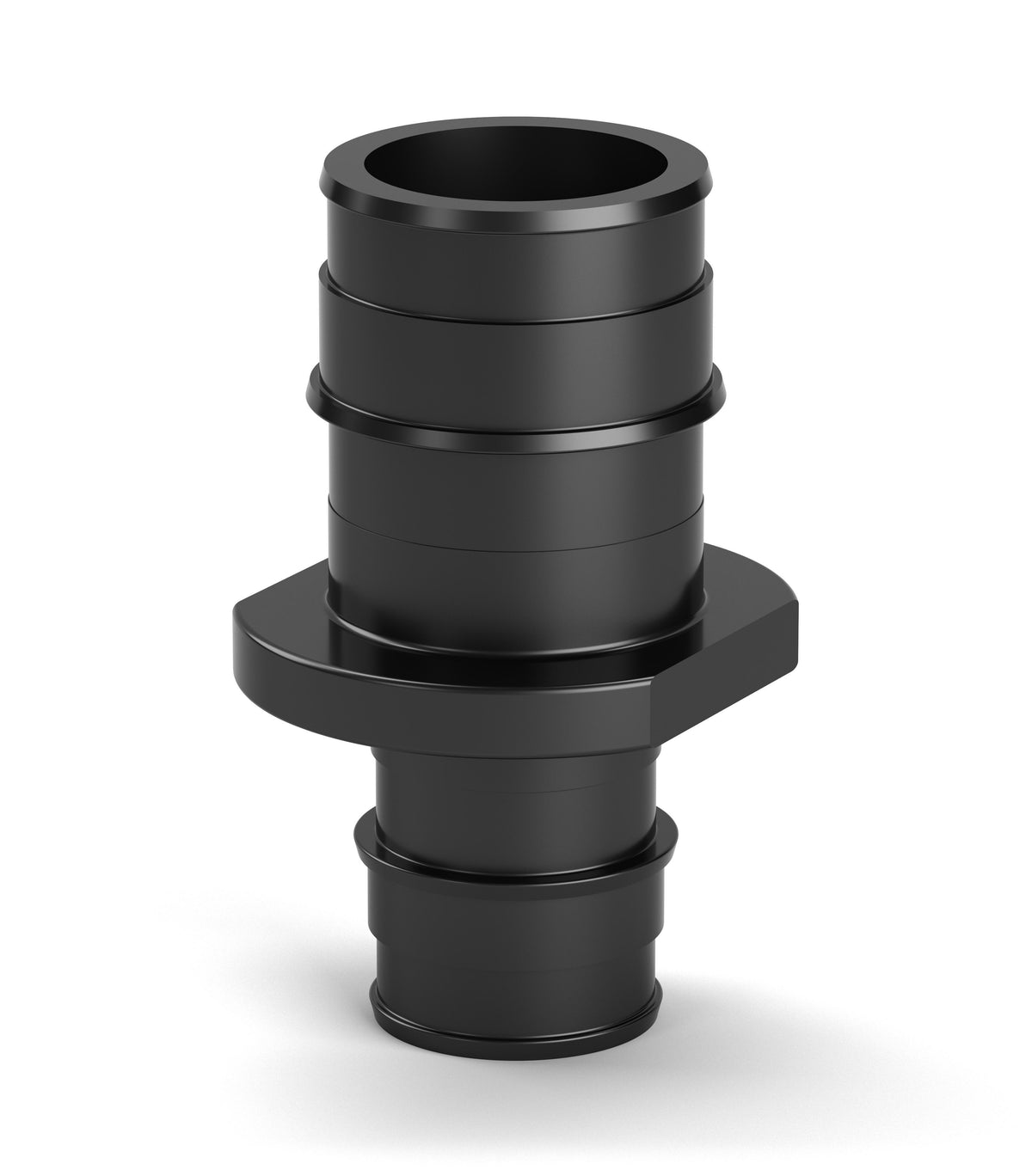

3/4" Coupling - Cr Polymer - F1960 Expansion PEX
3/4" Coupling - Cr Polymer - F1960 Expansion PEX
QEPC44X
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
DIMENSIONS
DIMENSIONS
|
LENGTH |
2.05 in |
|---|---|
|
WEIGHT |
0.02 lb |
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
The QEPC_X is used to connect Zurn® Non-Barrier PEX® tubing together in potable water applications. Molded from Polyphenylsulfone (PPSU), these fittings, as a system with Zurn® PEX® tube and Zurn® PEX® reinforcing rings are pressure rated at 160 psi at 73 deg F, 100 psi at 180 deg F and 80 psi at 200 deg F. These fittings are 3rd party certified as complying with the following standards: NSF/ANSI Standard 14, NSF/ANSI Standard 61, NSF/ANSI Standard 372 (Low Lead), ASTM F1960, CSA B137.5.
SPECIFICATIONS
|
Dimensions |
1.18 in OD |
|---|---|
|
End Style |
F1960 Expansion PEX |
|
Material |
CR Polymer |
|
Method of Manufacture |
Molded |
|
Nominal Size |
3/4 in |
|
Pressure Rating |
160 psi |
|
Temperature Rating |
73 deg F |

$2.54
