3/4" Double Union Pressure Regulating Valves - Lead-Free

3/4" Double Union Pressure Regulating Valves - Lead-Free

23894-0045



Regular price $104.94
Sale price $104.94 Regular price $151.31
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Factory set to regulate flow to a safe 45 PSI, adjustable from 10 to 70 PSI
• Integrated internal by-pass mechanism
• Cartridge based design allows for quick and easy service

DIMENSIONS

LENGTH

7.05 in

HEIGHT

5.12 in

WEIGHT

1.7 lb

PRODUCT OVERVIEW

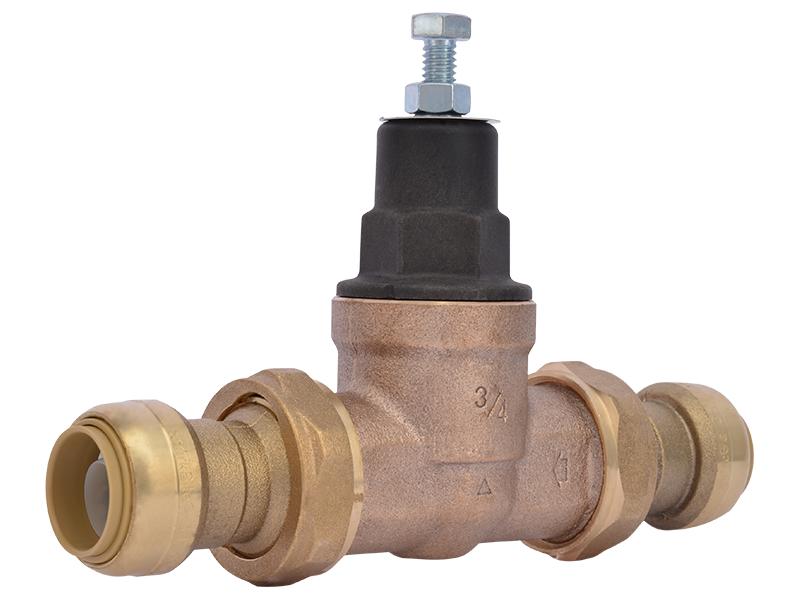

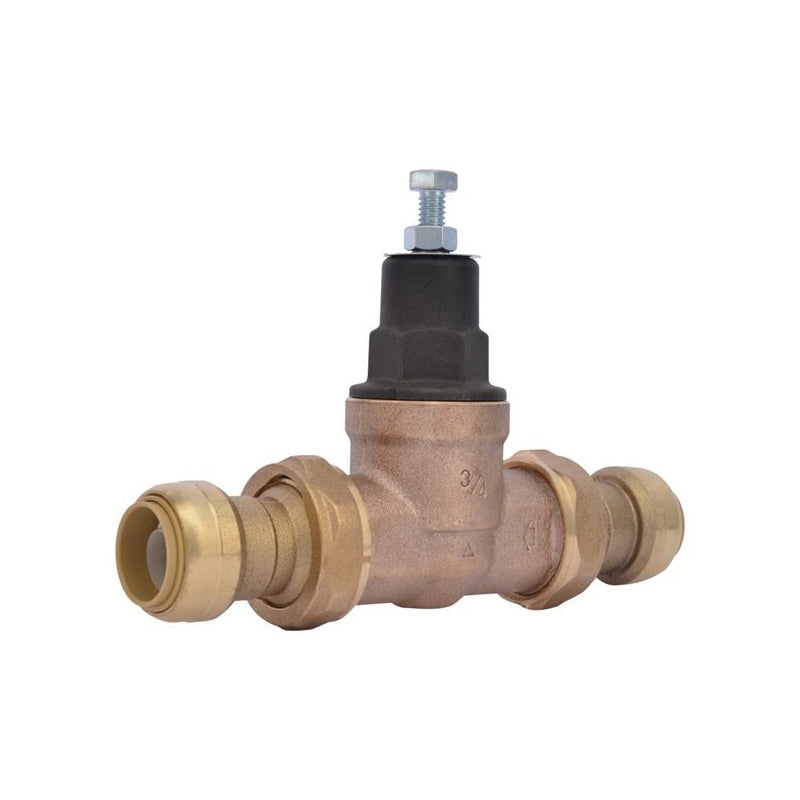

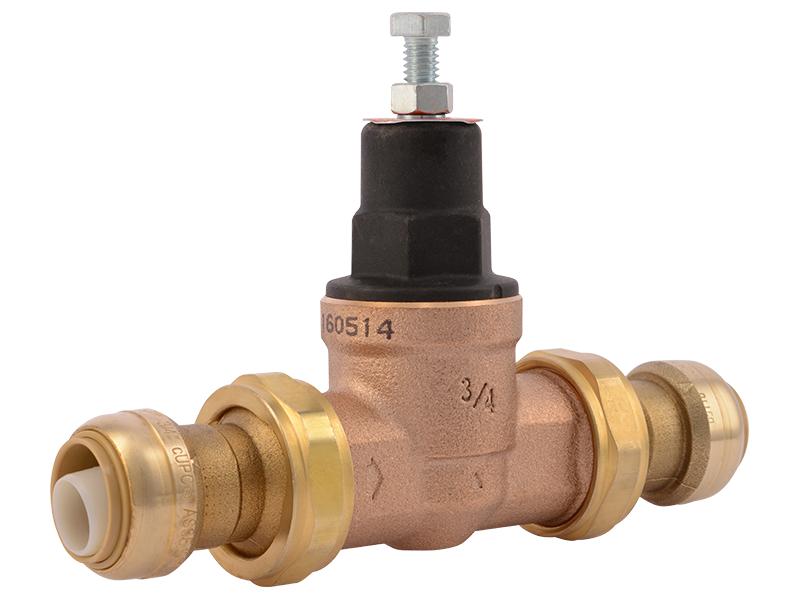

The SharkBite pressure-regulating valve is designed to reduce incoming water pressure to a safe pressure to protect plumbing components. They also help to prevent pressure surges from entering the household from the main line. High pressure can cause damage to appliances and plumbing. A pressure regulator should be installed after the main line to help protect plumbing. The SharkBite pressure regulator is a half-cartridge based pressure reducing and regulating valve with a lead-free bronze body. The valve resembles traditional regulators with a spring chamber and an adjusting screw but offers the high performance of a cartridge based valve. The valve is compatible with copper, PEX, CPVC or PE-RT pipes. Just insert the pipe and the fittings stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily removed and reused.


SPECIFICATIONS

Body Material

Bronze

Dimensions

5.12 in H x 7.05 in L

Nominal Size

3/4 in

Pressure Rating

200 psi

Temperature Rating

33 to 180 deg F

Type

Double Union
