BRASSCRAFT

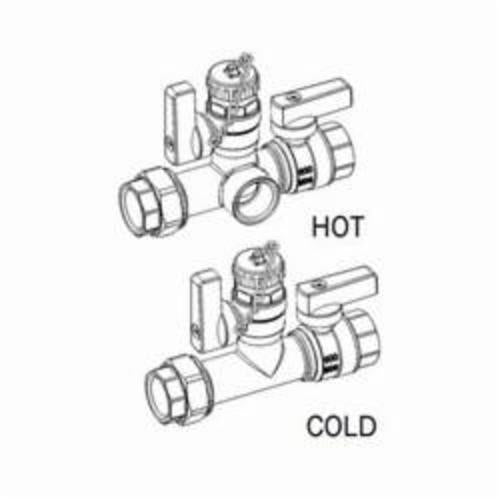

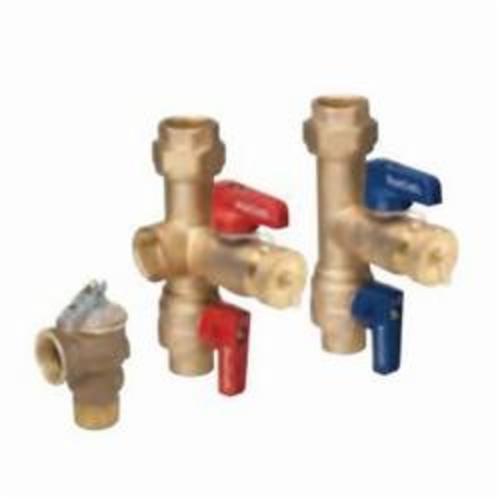

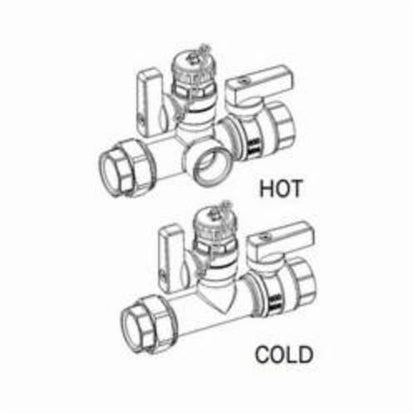

3/4" Service Valve Kit - Brass - C x IPS

3/4" Service Valve Kit - Brass - C x IPS

TWV3SRX

$105.35
$105.35 $177.30
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Compact design ideal for recessed and cover box installations
• Captive coupling nut and washer reduces opportunity for component loss making installation easier
• Captive washer won't kink or tear during installation
• Forged, one-piece construction reduces the potential for pinhole leaks
• Integrated drain valve with independent, 1/4-turn operation allows quick system diagnostic testing and maintenance
• Built-In side port for the pressure relief valve reduces the number of connections and simplifies the installation
• Right-sized handles, color-coded for immediate system identification
• 100% Complaint
• Aluminum coated handle
• Steel, zinc plated handle screw

DIMENSIONS

WEIGHT

1.92 lb

DOCUMENTS & RESOURCES

Product Brochure

PRODUCT OVERVIEW

BrassCraft®'s Service Valve Kit include Includes a 3/4 in nominal sweat x 3/4 in IPS tankless service valve, 200 K BTU/hr pressure relief valve with 3/4 in MNPT connection to service valve and 3/4 in FNPT connection to drain pipe, integrated drain valve (3/4 in male hose thread) and pressure-relief port (3/4 in FNPT) reduces the number of components and connections required to install the appliance, reduces time and cost of the installation.

SPECIFICATIONS

Body Material

Brass

End Style

C x IPS

Nominal Size

3/4 in

Pressure Rating

125 psi

Softgoods Material

Rubber Cap Gasket

Temperature Rating

40 to 180 deg F

Trim Material

Brass
