BRASSCRAFT

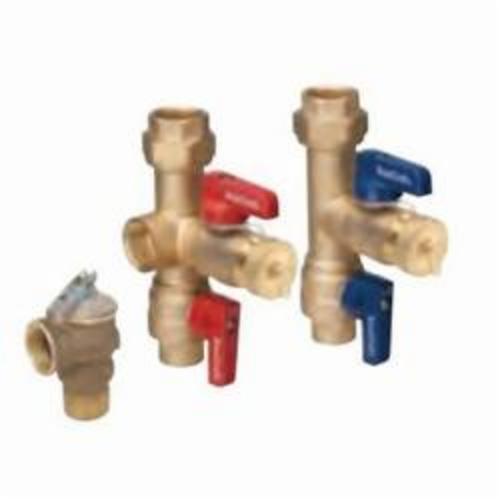

3/4" Service Valve Kit - Brass - IPS

3/4" Service Valve Kit - Brass - IPS

TWV30RX

$148.79
$148.79 $177.30
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Compact design ideal for recessed and cover box installations
• Captive coupling nut and washer reduces opportunity for component loss making installation easier
• Captive washer won't kink or tear during installation
• Forged, one-piece construction reduces the potential for pinhole leaks
• Integrated drain valve with independent, 1/4-turn operation allows quick system diagnostic testing and maintenance
• Built-In side port for the pressure relief valve reduces the number of connections and simplifies the installation
• Right-sized handles, color-coded for immediate system identification
• 100% Complaint
• Aluminum coated handle
• Steel, zinc plated handle screw

DIMENSIONS

WEIGHT

1.8 lb

DOCUMENTS & RESOURCES

Product Brochure

PRODUCT OVERVIEW

BrassCraft®'s Service Valve Kit include Includes 3/4 in IPS x 3/4 in IPS tankless service valve, integrated drain valve (3/4 in male hose thread) and pressure-relief port (3/4 in FNPT). The intergraded drain valve help reduce the number of components and connections required to install the appliance, reduces time and cost of the installation.

SPECIFICATIONS

Body Material

Brass

End Style

IPS

Nominal Size

3/4 in

Pressure Rating

125 psi

Softgoods Material

Rubber Cap Gasket

Temperature Rating

40 to 180 deg F

Trim Material

Brass
