GASTITE

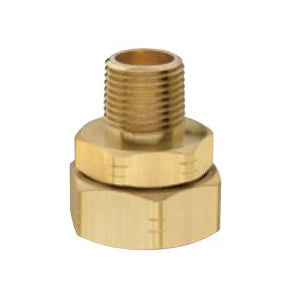

3/4 x 1/2" Fsredftg-11-08-24 Straight Reducing Fitting - NPT

3/4 x 1/2" Fsredftg-11-08-24 Straight Reducing Fitting - NPT

XR3REDFTG-11-8-24

$41.35
$41.35 $71.79
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Approved for concealed use
• Tool-less flare fitting design
• Metal-to-metal seal
• Self-guiding fitting assembly
• Patented Jacket-Bite™
• Fully reusable fitting
• Patent pending multi-point seal
• 25 psi maximum approved operating pressure
• -100 to 400 deg F operating temperature
• 1-3/8 in hex fitting

DIMENSIONS

WEIGHT

9.6 lb

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

FlashShield™ is metallically shielded corrugated stainless steel tubing system complying with ANSI LC 1 "Fuel Gas Piping Systems Using CSST" and listed with CSA®, ICC and IAPMO. The FlashShield system is also listed to protective jacket standards, ICC-ES PMG LC1024, and LC1027. All mechanical tube fittings are SAE CA360 brass incorporating double wall flare sealing and Jacket-Bite™ jacket capturing for steel tubing protection and continuous conductivity.

SPECIFICATIONS

End Style

NPT

Material

Brass

Nominal Size

3/4 x 1/2 in
