Item Status:
Discontinued
Availability is limited to remaining stock.

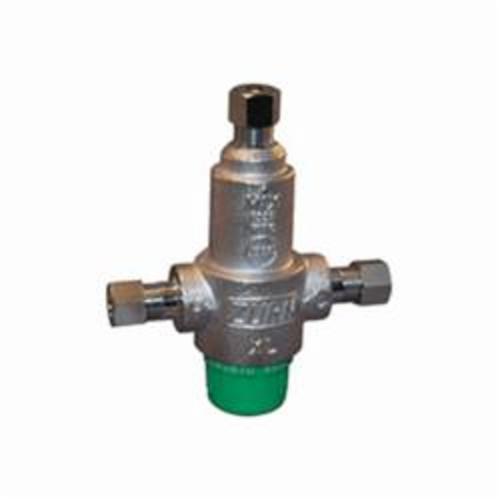

3/8" Thermostatic Mixing Valve - Cast Bronze - Compression
3/8" Thermostatic Mixing Valve - Cast Bronze - Compression
ZW3870XLT
Regular price
$167.48
Sale price
$167.48
Regular price
$217.50
Unit price
/
per
Shipping calculated at checkout.
How you'll get this item:
Available to order - Ships in 1 - 3 weeks
This is an estimated lead time. You'll get an email when it ships.
Stores Are Selected During Checkout.
Payment methods
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Most suitable for use with sensor faucetsDesigned for single fixture use
• 3 port (1 hot in, 1 cold in, 1 mixed out)
DIMENSIONS
DIMENSIONS
|
HEIGHT |
4.84 in |
|---|
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
The Aqua-Gard® ZW3870XLT Thermostatic Mixing Valve is designed to be installed with 3/8 in point of use applications (residential and light commercial installations) to mix hot and cold water from the distribution system to a final safer temperature.
SPECIFICATIONS
|
Body Material |
Cast Bronze |
|---|---|
|
Dimensions |
4-27/32 in H |
|
End Style |
Compression |
|
Flow Capacity |
0.35 to 3.1 gpm |
|
Inlet to Outlet Length |
4-3/16 in |
|
Media |
Water |
|
Nominal Size |
3/8 in |
|
Pressure Rating |
145 psi |
|
Softgoods Material |
FKM Seal |
|
Temperature Rating |
95 to 115 deg F |
|
Top to Inlet Center |
2-27/32 in |

3/8" Thermostatic Mixing Valve - Cast Bronze - Compression
$167.48
