EATON

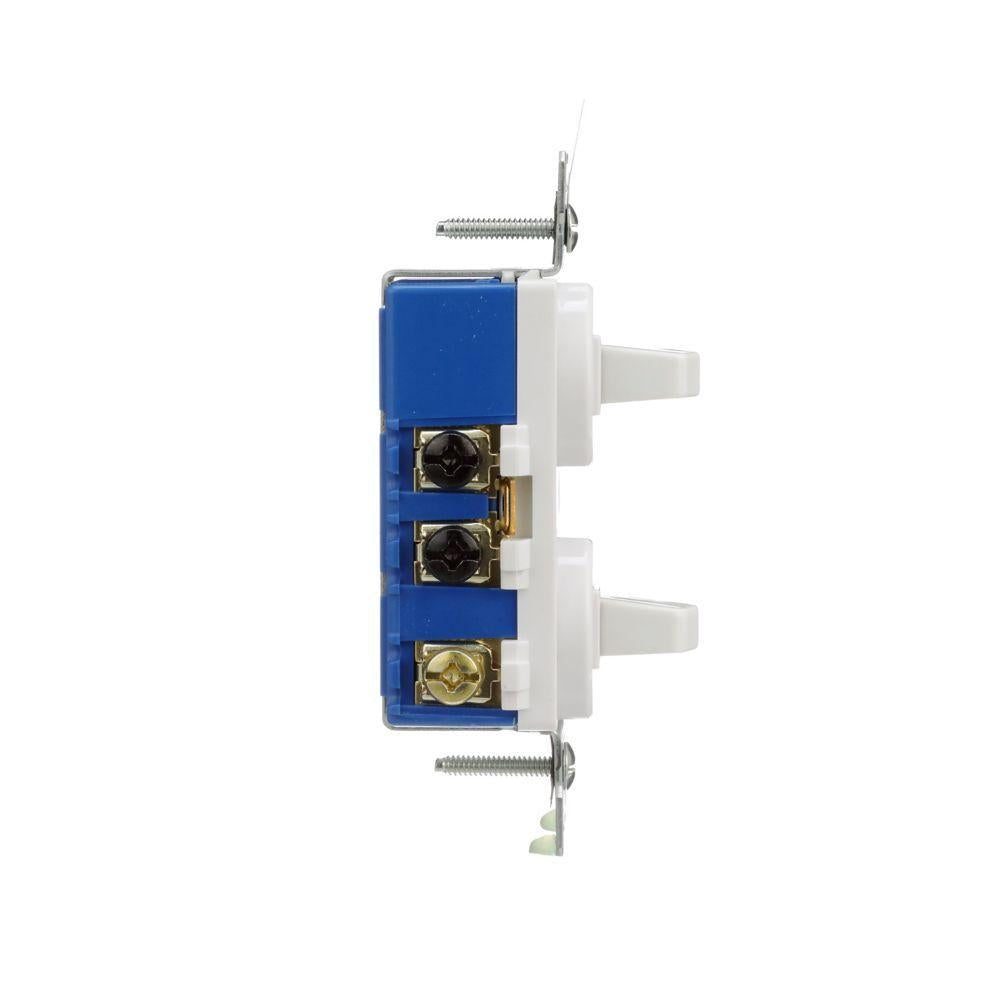

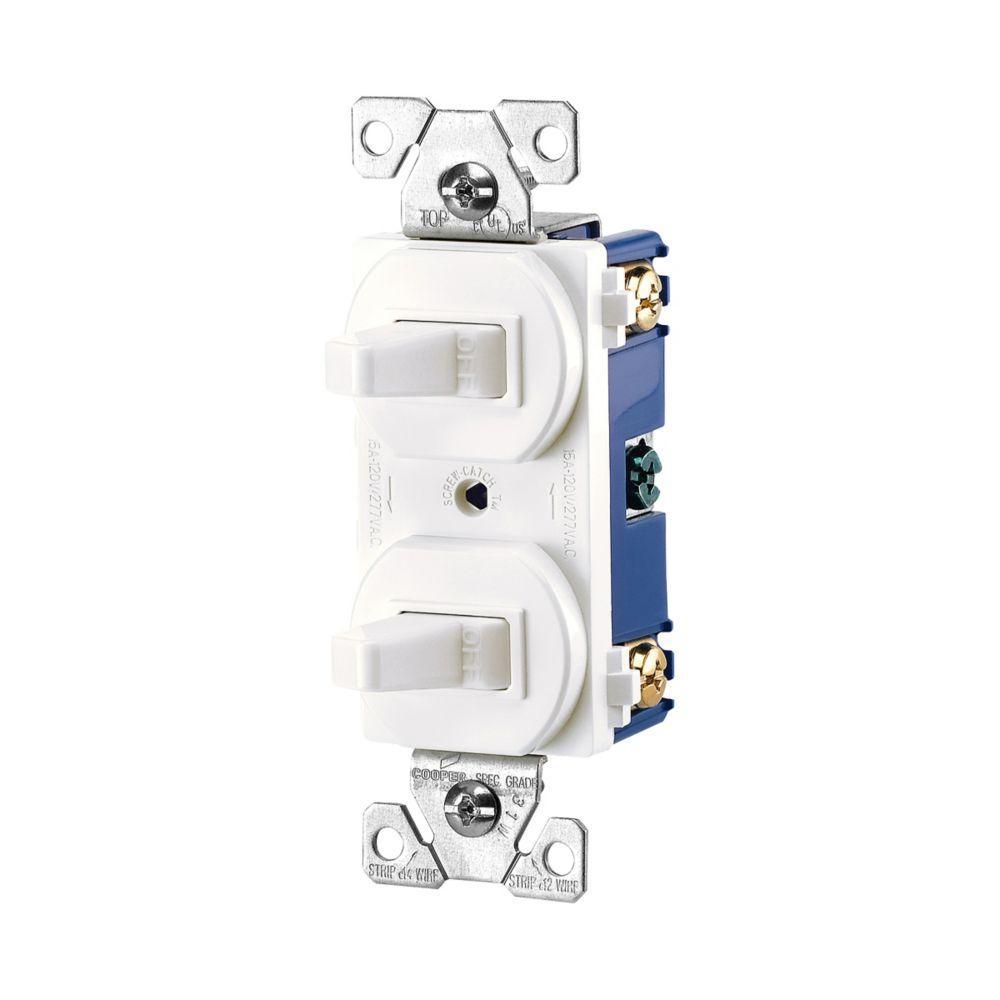

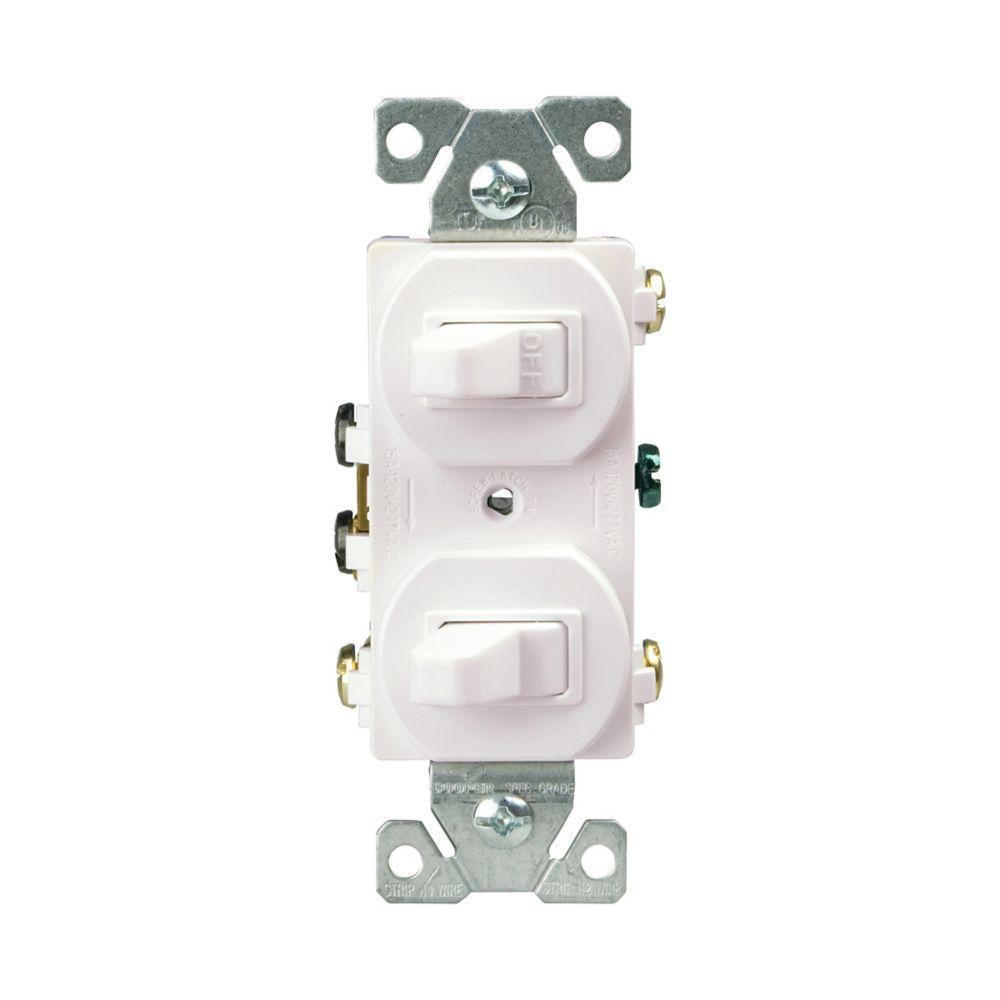

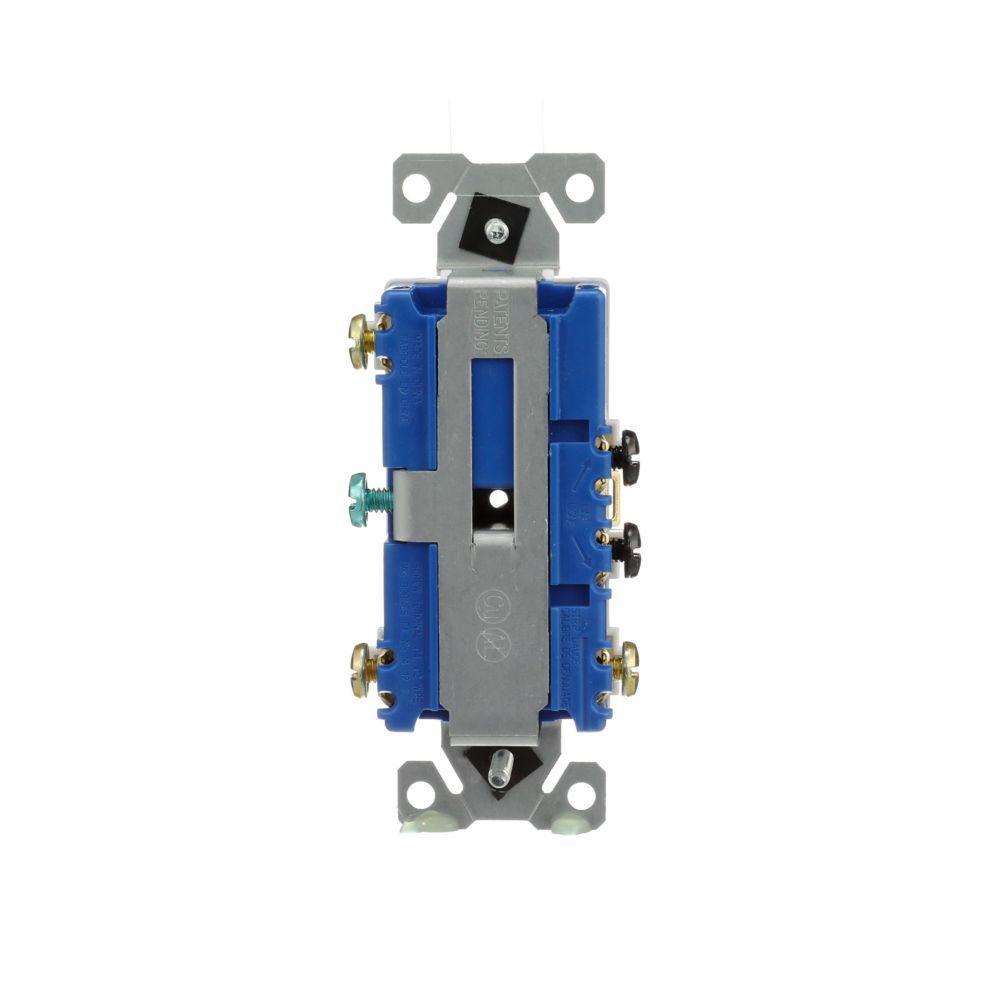

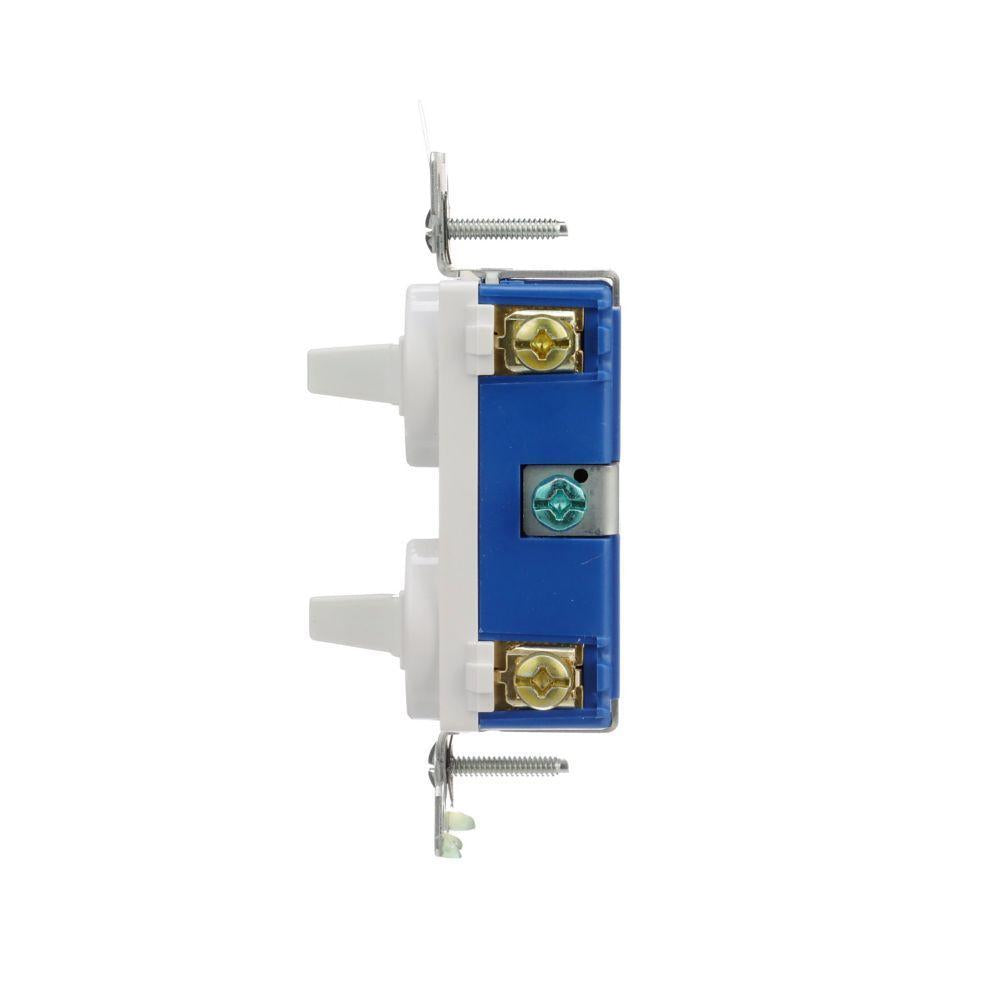

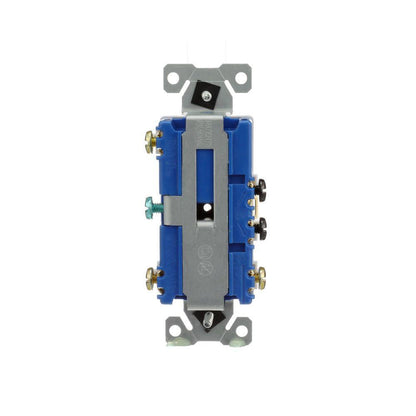

3-Way Duplex AC Toggle Combination Switch - Thermoplastic

3-Way Duplex AC Toggle Combination Switch - Thermoplastic

275W-BOX

$10.34
$10.34 $7.23
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Back and side wire connection
• Grounding terminal screw standard
• Receptacles have triple wipe line contacts and double wipe ground contacts to insure long term plug retention
• Thick steel mounting strap zinc plated for corrosion resistance
• Break off provision for wiring both devices on same circuit or on separate circuits
• Terminal screws are backed out and ready for wiring to enhance ease of installation
• Side wire terminals accept up to 10 AWG solid or stranded wire
• Pilot light may be wired to indicate power "ON" or power "OFF"
• Combination slot/Phillips® head mounting and terminal screws ease installation
• Screw connection

DIMENSIONS

WEIGHT

0.01 lb

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

Eaton's Arrow Hart commercial specification grade switches are designed to provide superior quality, reliability and performance in a variety of commercial environments.

SPECIFICATIONS

Electrical Ratings

120 V AC, 15 A

Environmental Conditions

-20 to 60 deg C Operating Temperature

Material

Thermoplastic

Mounting

Strap

Number of Poles

1

Operating Cycles

30000 Cycles

Size

4.19 in H x 1.3 in W x 1.08 in D

Type

3-Way Duplex
