EATON

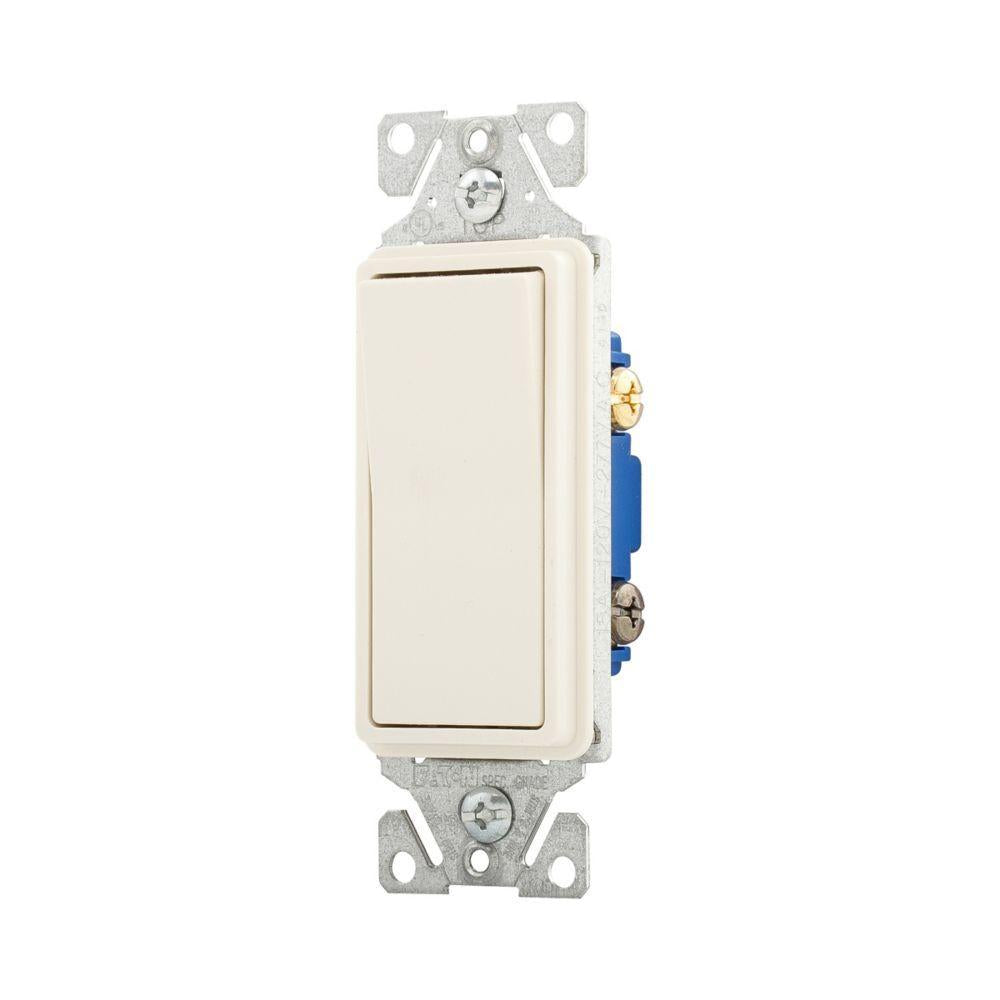

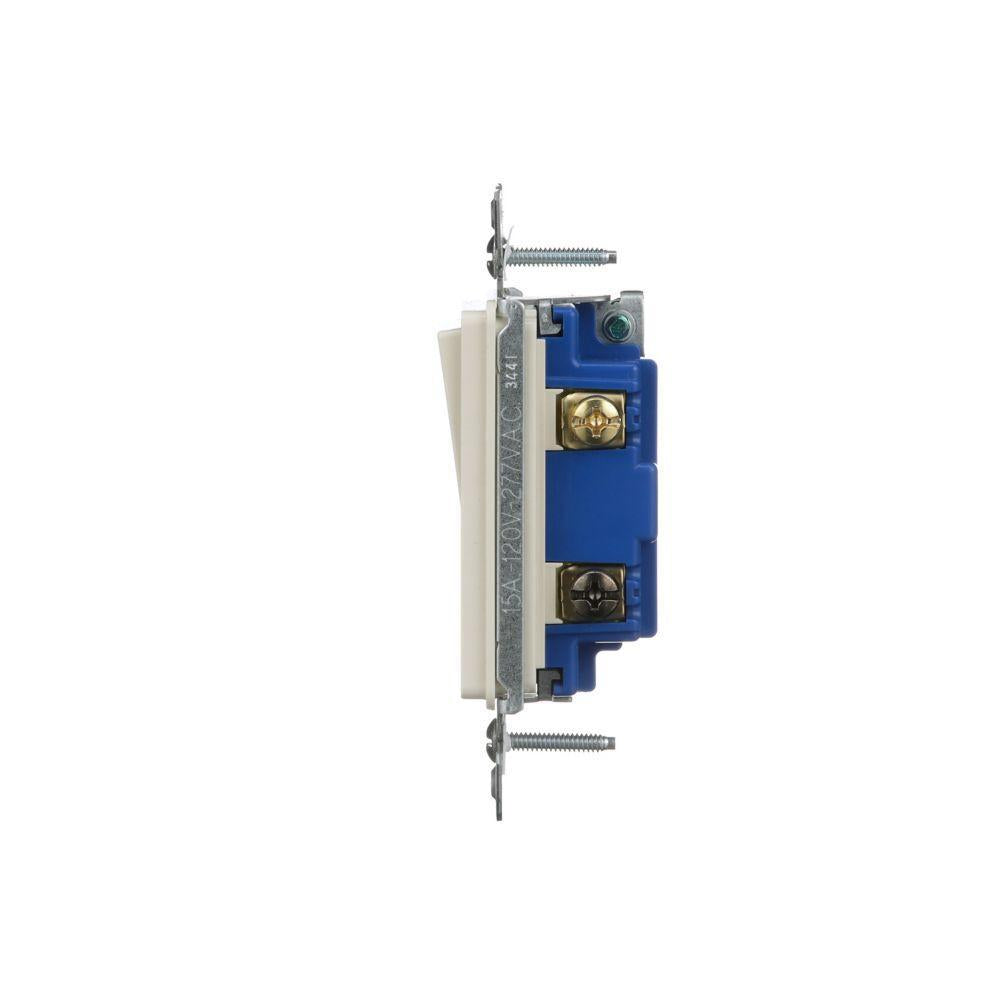

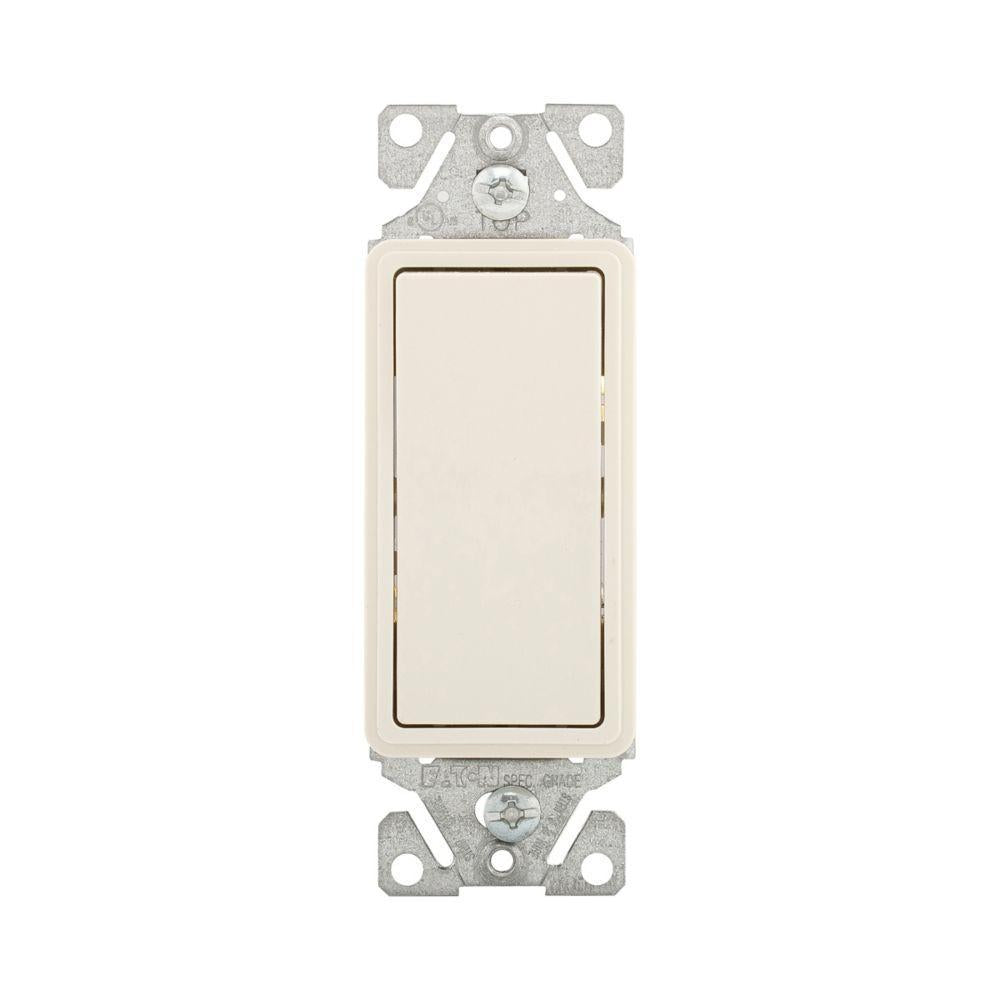

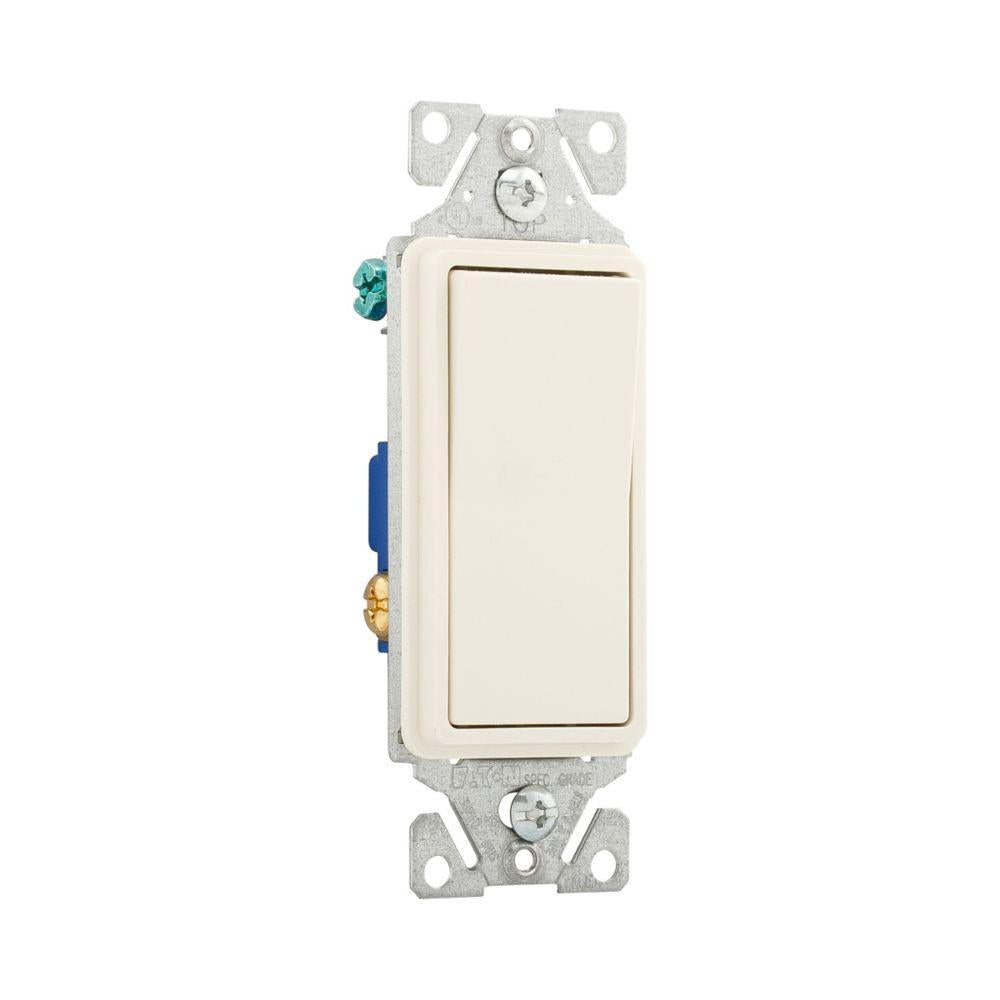

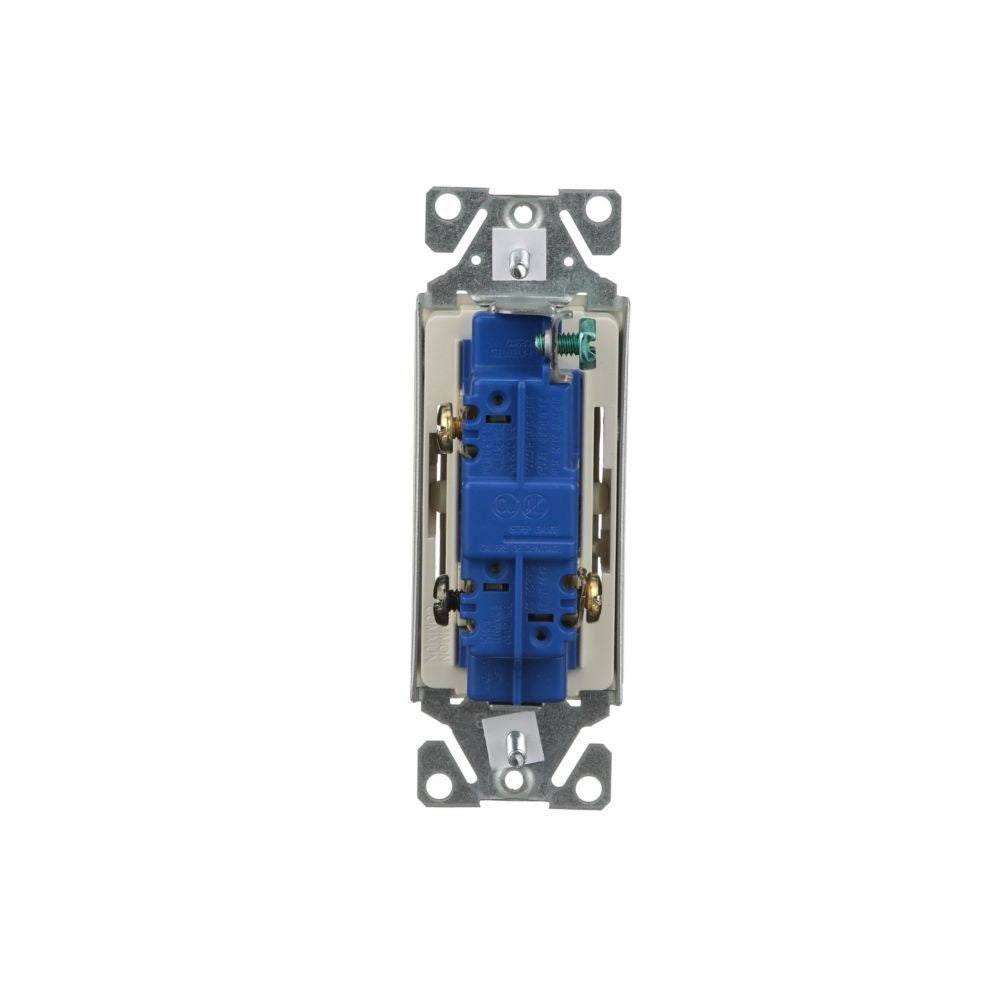

3-Way Standard Grade Decorator Switch - Thermoplastic - 15 A

3-Way Standard Grade Decorator Switch - Thermoplastic - 15 A

7503LA

$2.77
$2.77 $1.94
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Ultrasonic welding and integrated construction of the strap and body provide superior integrity
• Lighted switches glow in off position
• Thermoplastic rocker, top and back body are virtually unbreakable, promising years of durable performance
• Tri-combo screws accept slotted, Phillips® and Robertson head tools for installation flexibility
• Push-in terminals accept 14 AWG solid wire for quick installation
• Patented built-in wire stripper for 14 and 12 AWG wire to speed installation
• Long, broad mounting strap virtually eliminates floating installations
• Stippled ground screw terminal standard
• Back-wire clamps on side terminals provide for easy installation of 12 and 14 AWG wire

DIMENSIONS

WIDTH

1.44 in

HEIGHT

4.19 in

WEIGHT

0.01 lb

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

Eaton's Arrow Hart residential grade switches are engineered for smooth action and years of safe, dependable service - no matter what the application, type of load or use.

SPECIFICATIONS

Action

Momentary

Actuator

Paddle

Amperage Rating

15 A

Dimensions

1.44 in W x 0.97 in D x 4.19 in H

Environmental Conditions

-20 to 60 deg C Operating Temperature

Material

Thermoplastic

Mounting

Wall

Number of Poles

1

Series

7500

Terminal Type

Back/Side Wire/Push-In/Screw

Type

3-Way Standard Grade

Voltage Rating

120/277 V AC
