APOLLO

36ELF - 3/4" Pressure Reducing Valve - Double Union x Solder

36ELF - 3/4" Pressure Reducing Valve - Double Union x Solder

36ELF12401S

$110.85
$110.85 $69.28
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Balanced piston design
• Stainless steel adjusting screw and nut
• Sealed cage for vault installations
• Built-in thermal expansion bypass
• Large area integral stainless steel strainer
• Modular seat disc and strainer cartridge
• Control pressure ranges are 15 to 75 psi and 75 to 150 psi and preset at 60 psi
• High flow/high efficiency design
• With standard materials for non-potable applications

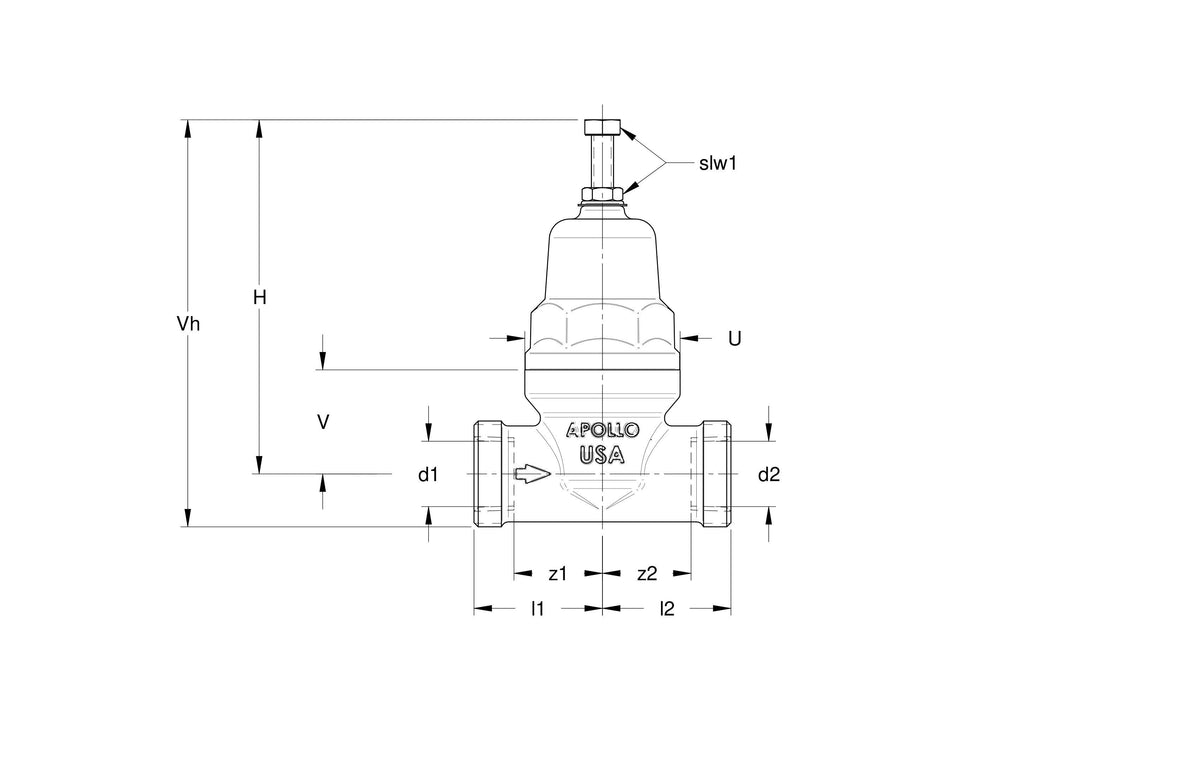

DIMENSIONS

WIDTH

2.75 in

HEIGHT

6 in

WARRANTY

5 Years

DOCUMENTS & RESOURCES

Specification Sheet
User Manual
Warranty Information
Product Brochure

PRODUCT OVERVIEW

The Apollo™ lead free Pressure Reducing Valve Model PRE (36ELF Series) is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance designed for easy in-line servicing with simple cartridge removal.

SPECIFICATIONS

Body Material

Bronze

Dimensions

2-3/4 in W x 6 in H

End Style

Double Union x Solder

Inlet to Outlet Length

5.49 in

Nominal Size

3/4 in

Pressure Range

15 to 75 psi

Series

36ELF

Softgoods Material

EPDM Seat Disc, O-Ring

Temperature Rating

33 to 180 deg F

Trim Material

Stainless Steel
