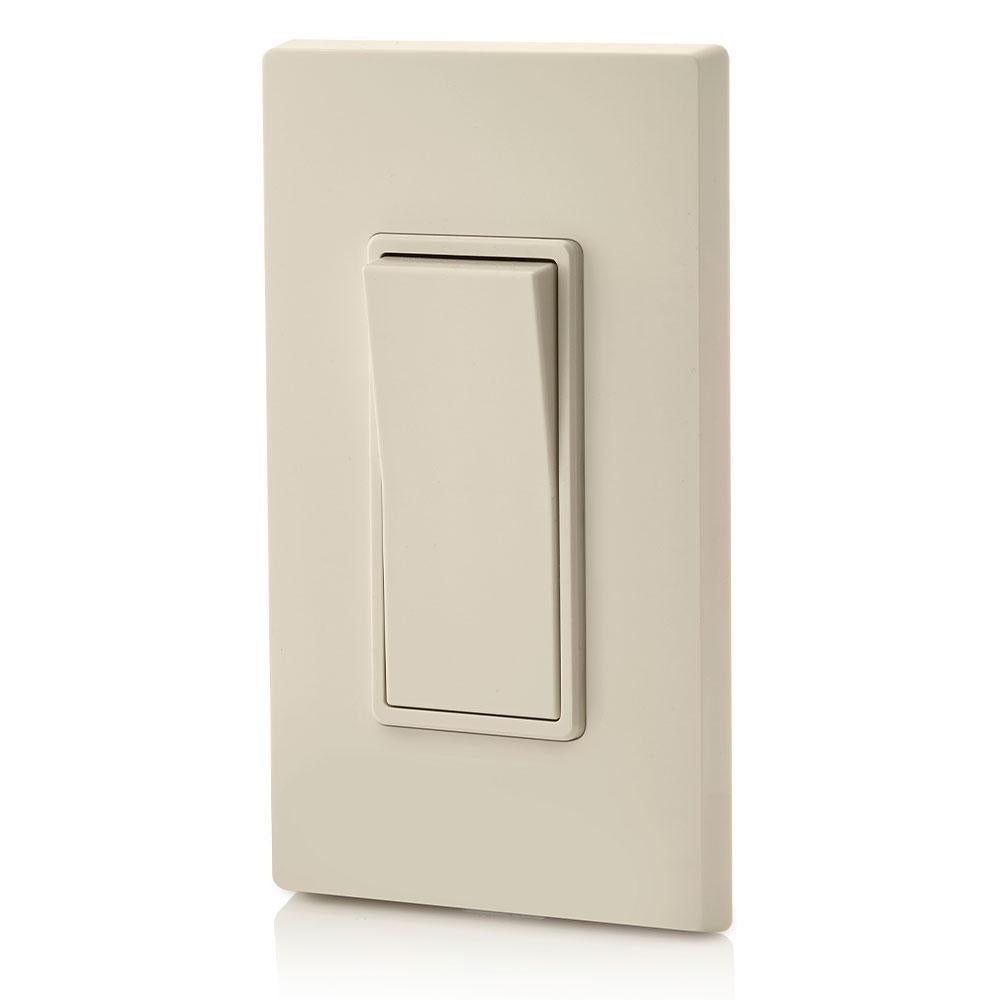

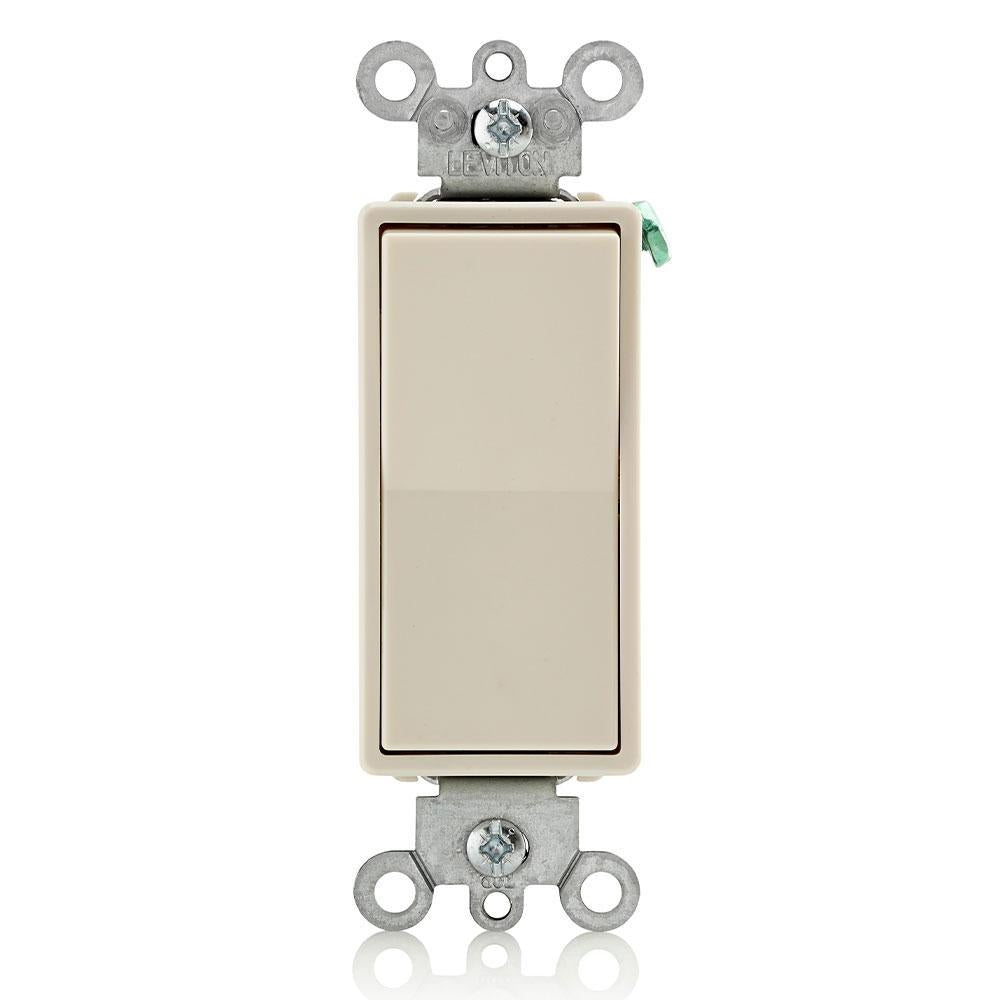

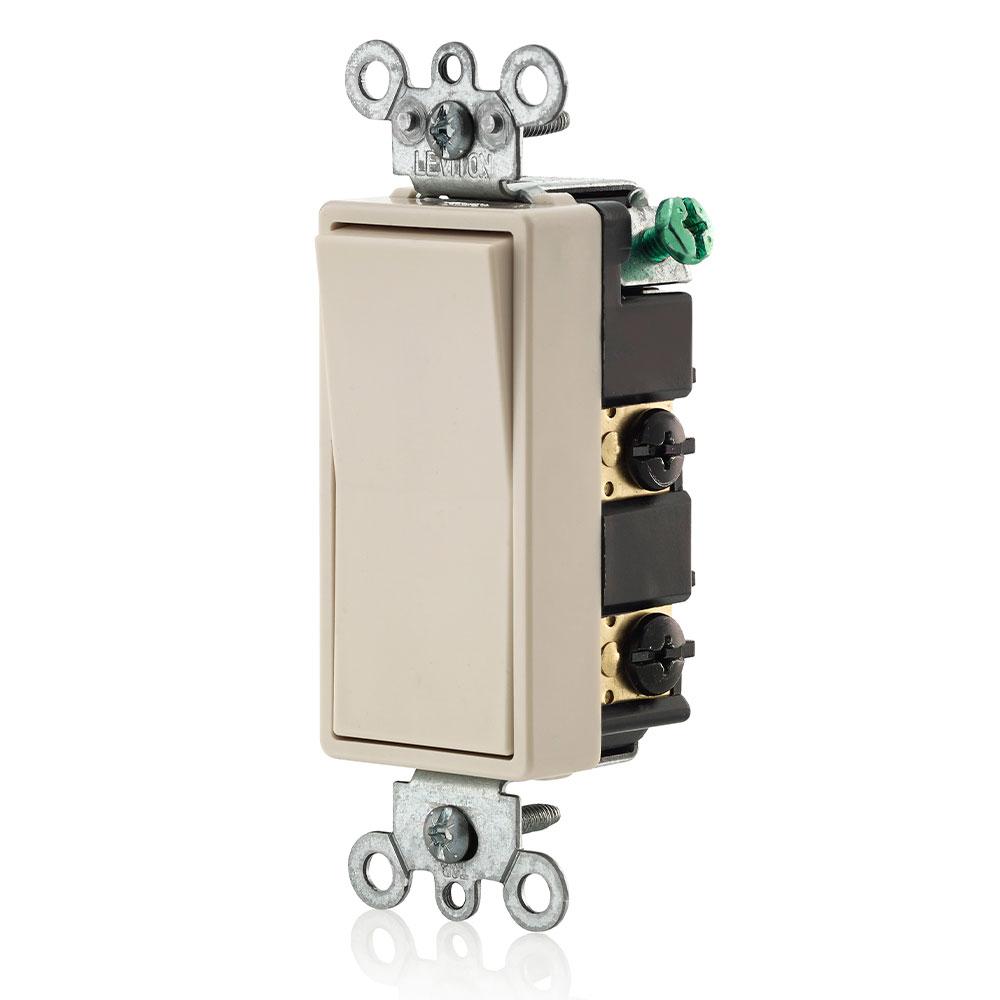

4-Way Grounding AC Quiet Switch - Thermoplastic - 15 A
4-Way Grounding AC Quiet Switch - Thermoplastic - 15 A
5604-2T
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Switch frame shields against dust and fits in wallplate to prevent rocker binding
• Conform to all NEMA standard specifications
• Sturdy construction for long service life
• Terminal screws accept up to #12 AWG copper or copper clad wire
• Full-rated current capacity with tungsten, fluorescent or resistive loads
• Motor capacity is 80% of switch rating
• Quickwire® push-in terminals accept #14 AWG solid copper wire only
• Complements every Decora®
• Easy to wire, they work with fluorescent and resistive loads
DIMENSIONS
DIMENSIONS
|
WIDTH |
1.3 in |
|---|---|
|
HEIGHT |
4.2 in |
|
WEIGHT |
0.25 lb |
WARRANTY
WARRANTY
2 Years Limited
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
Featuring a look and feel that qualify them as modern classics, Decora® designer rocker switches add so much at a modest cost that no home should be without them. Their sleek simplicity and smooth, quiet operation stem from quality materials fitted to tight tolerances and finished with great care, ensuring years of trouble free service. Easy to wire, they work with tungsten, fluorescent and resistive loads. Legendary Decora® designer rocker switches come in a variety of colors to harmonize with any decor. Their sturdy construction and dependable performance are everything youd expect from the pre-eminent switch maker.
SPECIFICATIONS
|
Action |
On-Off |
|---|---|
|
Actuator |
Rocker |
|
Amperage Rating |
15 A |
|
Contact Rating |
15 A at 120/277 V AC |
|
Dimensions |
4.2 in H x 1.3 in W x 0.99 in D |
|
Environmental Conditions |
-40 to 120 deg C Operating Temperature |
|
Material |
Thermoplastic |
|
Mounting |
Surface |
|
Power Rating |
1/2 hp, 2 hp |
|
Terminal Type |
Quick-Wire® Push-In/Side Wire |
|
Type |
4-Way Grounding |

$15.83
