APOLLO

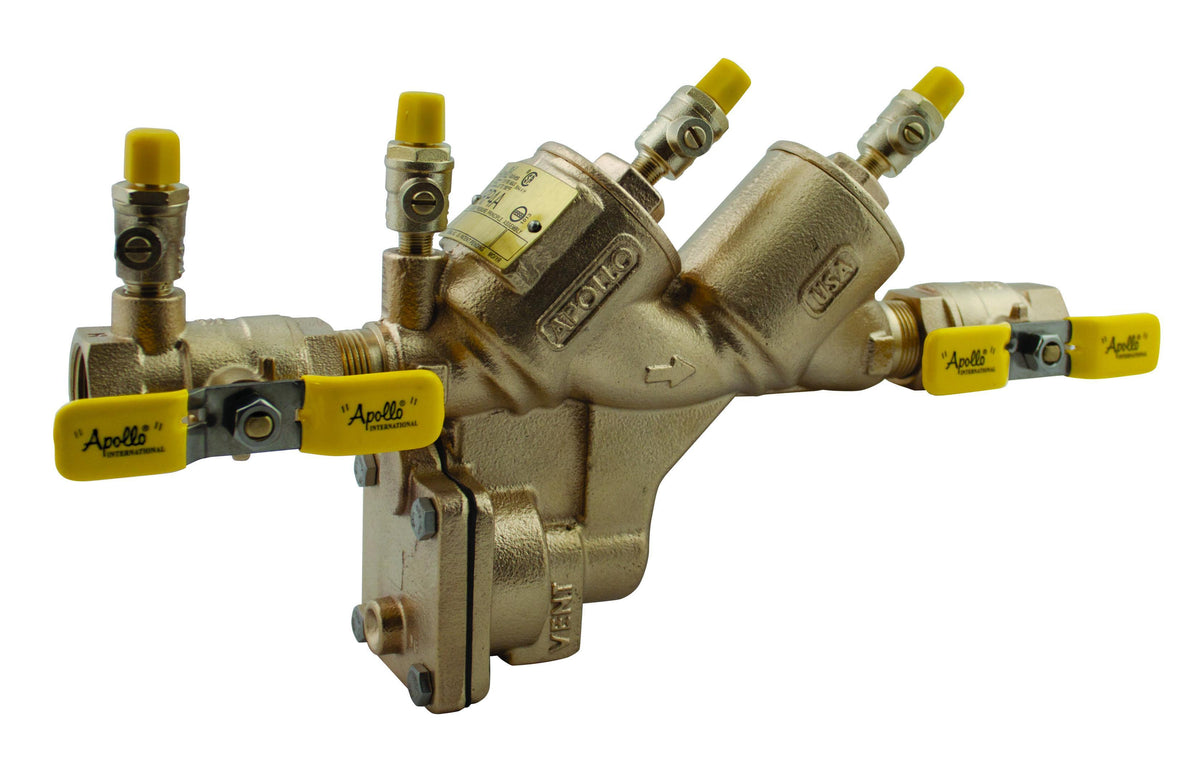

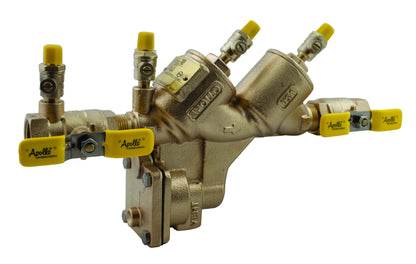

4ALF-200 Lbf - 1" Standard Backflow Preventer - Bronze

4ALF-200 Lbf - 1" Standard Backflow Preventer - Bronze

4ALF205A2F

$724.05
$724.05 $2,585.87
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Low pressure loss documented by independent approval agencies
• Easily removable modular check valve cartridge
• Captured stainless steel springs
• Ball valve shut-off with SS handles and nuts standard
• Top mounted test cocks for easy testing
• Modular relief valve
• Chloramine-resistant elastomers
• No special tools required
• Horizontal installation
• Bronze C84400 or C89836 lead free body/caps

DIMENSIONS

HEIGHT

8 in

WEIGHT

12.6 lb

WARRANTY

5 Years

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

The Apollo™ Model RP4A and RPLF4A Lead Free Reduced Pressure Backflow Preventer A Series provide maximum protection of the potable water supply due to back-siphonage or backpressure from substances that are hazardous to the potable water supply. The top accessed modular check valve cartridges provide captured springs, replaceable seats and reversible silicone seat discs. This Made in America assembly features ball valve shutoffs with stainless steel handles and nuts as standard and carries the five-year Apollo™ factory warranty.

SPECIFICATIONS

Backflow Type

Reduced Pressure

Ball Valve/Gate Valve Type

Shut-Off Ball Valve

Body Material

Bronze

Dimensions

8 in H

Nominal Size

1 in

Pressure Rating

175 psi

Series

4ALF-200 LBF

Temperature Rating

33 to 180 deg F

Type

Standard
