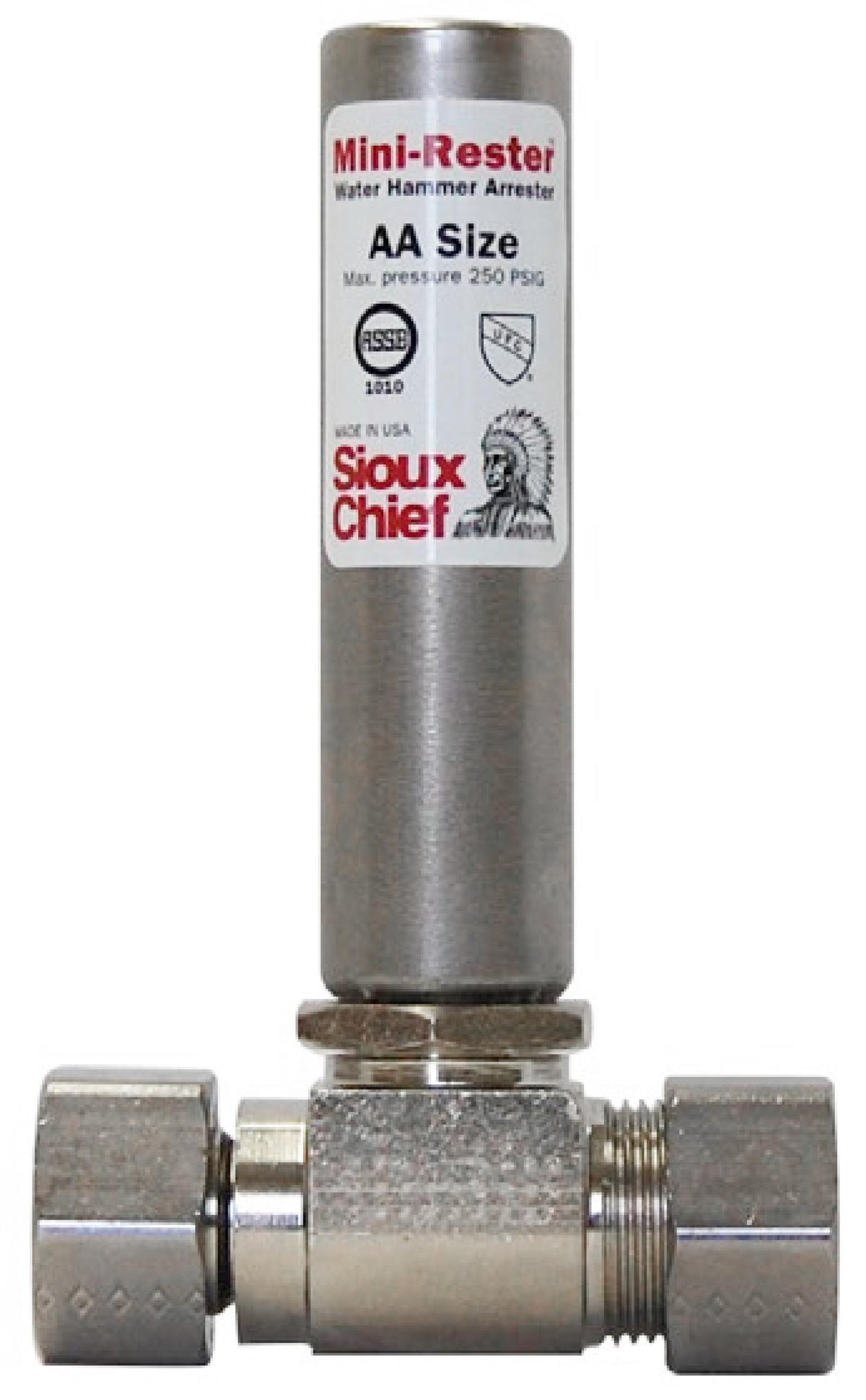

5/8" Water Hammer Arrester - 304 Stainless Steel
5/8" Water Hammer Arrester - 304 Stainless Steel
660-GTRB
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• DO NOT use pipe dope on compression threads
DIMENSIONS
DIMENSIONS
|
WEIGHT |
0.51 lb |
|---|
PRODUCT OVERVIEW
Sioux Chief 660-GTR piston-type water hammer arresters shall be installed where required on supply valves. Water hammer arresters shall be specifically sized and have sufficient volume of air to dissipate the calculated kinetic energy generated by closing residential or commercial faucets or valves. Arresters shall be installed on both hot and cold lines on the supply stops where applicable. Arresters shall be approved for installation with no access panel required.
SPECIFICATIONS
|
Body Material |
304 Stainless Steel |
|---|---|
|
Dimensions |
5/8 in OD |
|
End Style |
Compression x Female Compression |
|
Nominal Size |
5/8 in |
|
Pressure Rating |
250 psig |
|
Series |
660 |
|
Softgoods Material |
EPDM O-Ring |
|
Temperature Rating |
250 deg F |

$26.69
