HALO

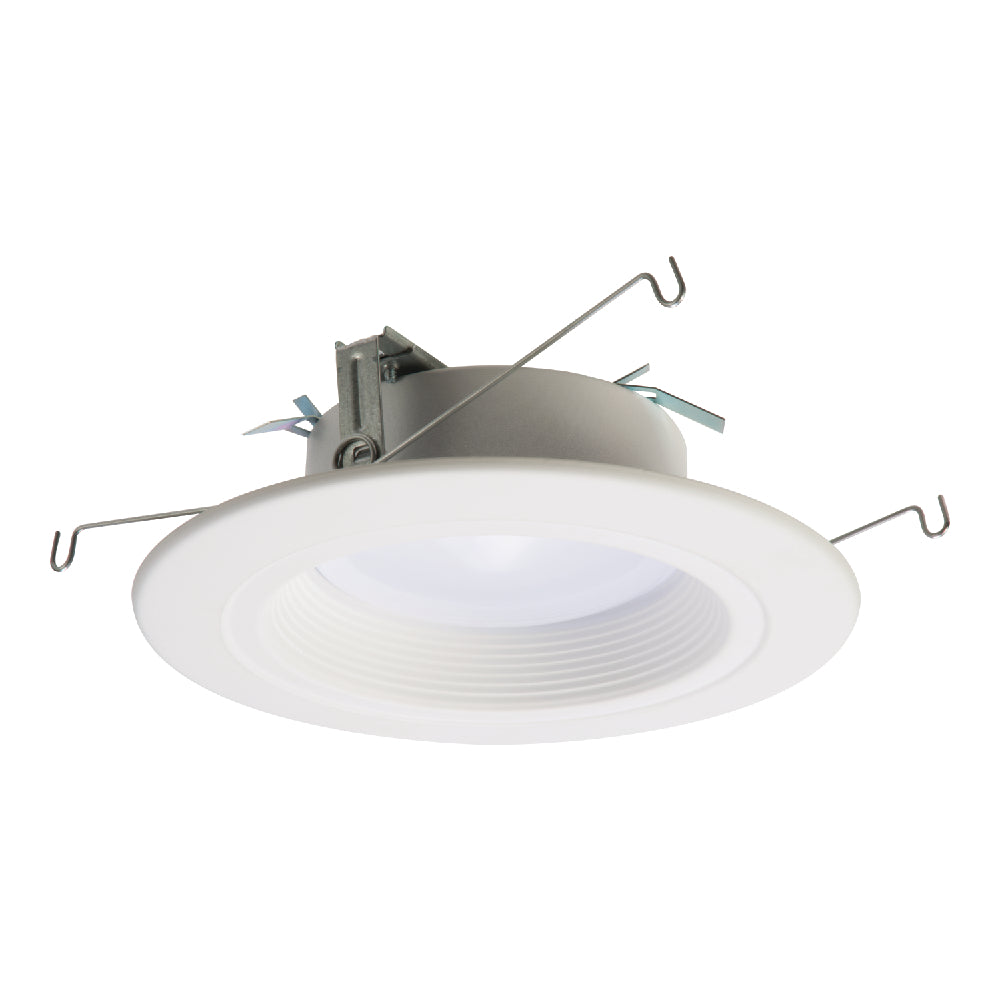

5" 6" Aperture Integrated Retrofit Module - Ceiling Mount

5" 6" Aperture Integrated Retrofit Module - Ceiling Mount

RL56069S1EWH

$21.53
$21.53 $15.50
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

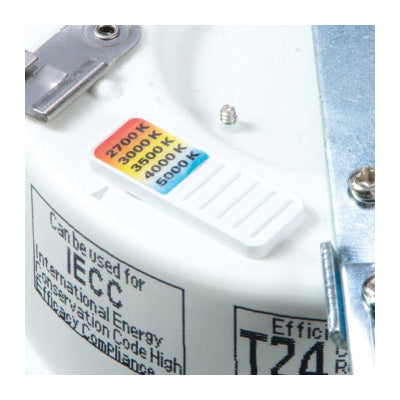

• Select from 5 CCTs via switch - 2700 K, 3000 K, 3500 K, 4000 K, 5000 K CCT
• Use with 5 or 6 in housings with screwbase adapter
• Dimmable down to 5%
• Dual mount torsion spring and Push-N-Twist clip models

DIMENSIONS

HEIGHT

2.67 in

WEIGHT

1.53 lb

WARRANTY

5 years Limited

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

The Halo RL56 seleCCTable™ is a complete LED baffle trim module for 5 in and 6 in aperture recessed downlights, suitable for new construction, remodel and retrofit installation. Using the CCT selectable switch users can chose between 5-different color temperatures. The lens provides uniform illumination and wet location listing. Precision construction makes any housing AIR-TITE for added savings and code compliance.

SPECIFICATIONS

Amperage Rating

0.065 A

Average Life

70000 hr

Ballast Type

Integral Dimming

Color Rendering Index (CRI)

92

Color Temperature

3000 K

Dimensions

7.25 in Dia x 2.67 in H

Housing Material

Metal

Lamp Base Type

E26

Lamp Wattage

7.6 W

Lens Type

Regressed Convex Diffused Polycarbonate

Light Color

Soft White

Light Output

87.5 Lumens/W

Lumens

665 Lumens

Mounting Type

Ceiling

Number of Lamps

1
