Item Status:
Discontinued
Availability is limited to remaining stock.

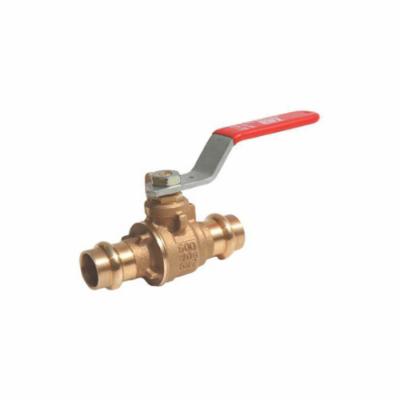

5020AB - 1/2 2-Piece Ball Valve with Handle - Bronze
5020AB - 1/2 2-Piece Ball Valve with Handle - Bronze
12RW5020AB
Regular price
$40.67
Sale price
$40.67
Regular price
$70.77
Unit price
/
per
Shipping calculated at checkout.
How you'll get this item:
Available to order - Ships in 1 - 3 weeks
This is an estimated lead time. You'll get an email when it ships.
Stores Are Selected During Checkout.
Payment methods
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Blow-out proof stem
• Adjustable packing nut
• PTFE packing ring/O-ring
DIMENSIONS
DIMENSIONS
|
WEIGHT |
0.49 lb |
|---|
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
SPECIFICATIONS
|
Ball Material |
Chrome Plated Low Lead Brass |
|---|---|
|
Body Material |
Bronze |
|
End Style |
Dual Female EzPress |
|
Inlet to Outlet Length |
2.93 in |
|
Nominal Size |
1/2 in |
|
Orifice Size |
0.59 in |
|
Port Type |
Full |
|
Pressure Rating |
600 lb WOG |
|
Series |
5020AB |
|
Softgoods Material |
PTFE |
|
Temperature Rating |
266 deg F |
|
Top to Inlet Center |
2.13 in |
|
Trim Material |
Brass Stem and PTFE Seat |
|
Type |
2-Piece |

5020AB - 1/2 2-Piece Ball Valve with Handle - Bronze
$40.67
