Item Status:
Discontinued
Availability is limited to remaining stock.

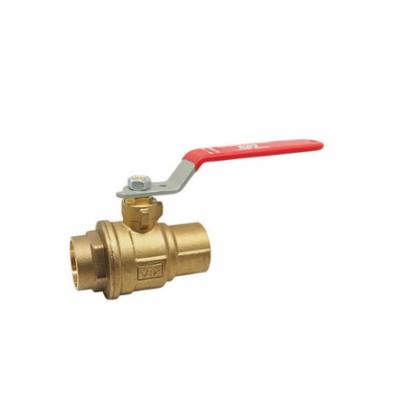

5049F - 2-1/2" 2-Piece Standard Ball Valve with Handle
5049F - 2-1/2" 2-Piece Standard Ball Valve with Handle
212RW5049F
Regular price
$264.68
Sale price
$264.68
Regular price
$460.59
Unit price
/
per
Shipping calculated at checkout.
How you'll get this item:
Available to order - Ships in 1 - 3 weeks
This is an estimated lead time. You'll get an email when it ships.
Stores Are Selected During Checkout.
Payment methods
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Blow-out proof stem
• Adjustable packing nut
• Graphite packing
DIMENSIONS
DIMENSIONS
|
WEIGHT |
8.87 lb |
|---|
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
SPECIFICATIONS
|
Ball Material |
Chrome Plated Brass |
|---|---|
|
Body Material |
Forged Brass |
|
End Style |
Solder |
|
Inlet to Outlet Length |
6.65 in |
|
Nominal Size |
2-1/2 in |
|
Orifice Size |
2.56 in |
|
Port Type |
Full |
|
Pressure Rating |
600 lb WOG/150 lb WSP |
|
Series |
5049F |
|
Softgoods Material |
Graphite |
|
Temperature Rating |
15 to 160 deg F |
|
Top to Inlet Center |
4.7 in |
|
Trim Material |
Brass Stem and PTFE Seat |
|
Type |
2-Piece Standard |

5049F - 2-1/2" 2-Piece Standard Ball Valve with Handle
$264.68
