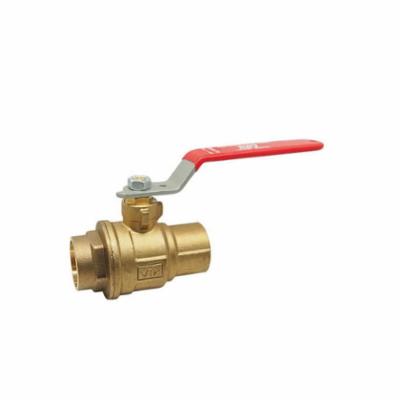

5049F - 3/8 2-Piece Standard Ball Valve with Handle - Solder

5049F - 3/8 2-Piece Standard Ball Valve with Handle - Solder

38RW5049F

$16.16
$16.16 $28.11
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Blow-out proof stem
• Adjustable packing nut
• Graphite packing

DIMENSIONS

WEIGHT

0.29 lb

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

SPECIFICATIONS

Ball Material

Chrome Plated Brass

Body Material

Forged Brass

End Style

Solder

Inlet to Outlet Length

3.89 in

Nominal Size

3/8 in

Orifice Size

0.39 in

Port Type

Full

Pressure Rating

600 lb WOG/150 lb WSP

Series

5049F

Softgoods Material

Graphite

Temperature Rating

15 to 160 deg F

Top to Inlet Center

1.55 in

Trim Material

Brass Stem and PTFE Seat

Type

2-Piece Standard
