Item Status:
Discontinued
Availability is limited to remaining stock.

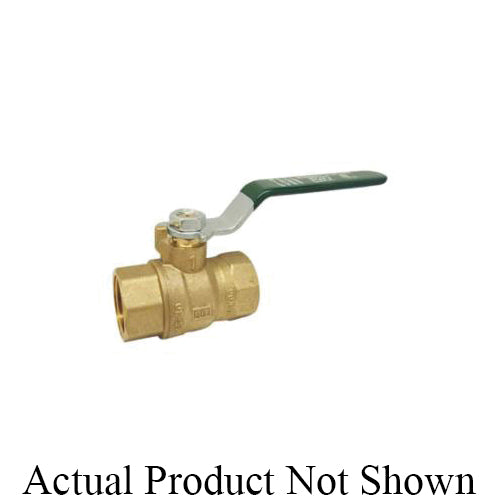

5592F - 2 2-Piece Standard Ball Valve with Handle - Brass
5592F - 2 2-Piece Standard Ball Valve with Handle - Brass
2RW5592F
Regular price
$96.81
Sale price
$96.81
Regular price
$168.47
Unit price
/
per
Shipping calculated at checkout.
How you'll get this item:
Available to order - Ships in 1 - 3 weeks
This is an estimated lead time. You'll get an email when it ships.
Stores Are Selected During Checkout.
Payment methods
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Blow-out proof stem
• Adjustable packing nut
• PTFE packing and FKM O-ring
DIMENSIONS
DIMENSIONS
|
WEIGHT |
3.05 lb |
|---|
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
SPECIFICATIONS
|
Ball Material |
Chrome Plated Brass |
|---|---|
|
Body Material |
Brass |
|
End Style |
Thread |
|
Inlet to Outlet Length |
2.09 in |
|
Nominal Size |
2 in |
|
Orifice Size |
1.95 in |
|
Port Type |
Full |
|
Pressure Rating |
600 lb WOG/150 lb WSP |
|
Series |
5592F |
|
Softgoods Material |
PTFE/FKM |
|
Temperature Rating |
15 to 160 deg F |
|
Top to Inlet Center |
3-1/4 in |
|
Trim Material |
Brass Stem and PTFE Seat |
|
Type |
2-Piece Standard |

5592F - 2 2-Piece Standard Ball Valve with Handle - Brass
$96.81
