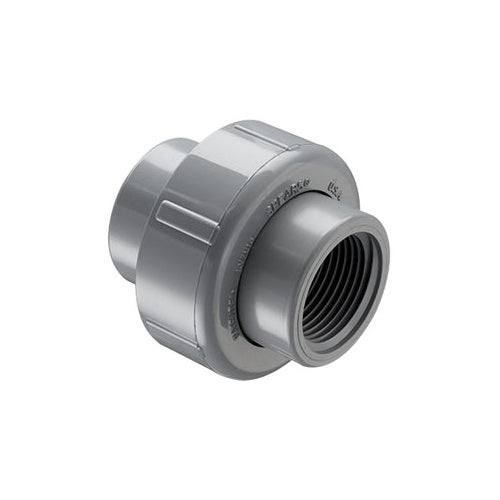

6" Union - CPVC - FNPT
6" Union - CPVC - FNPT
8098-060C
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION

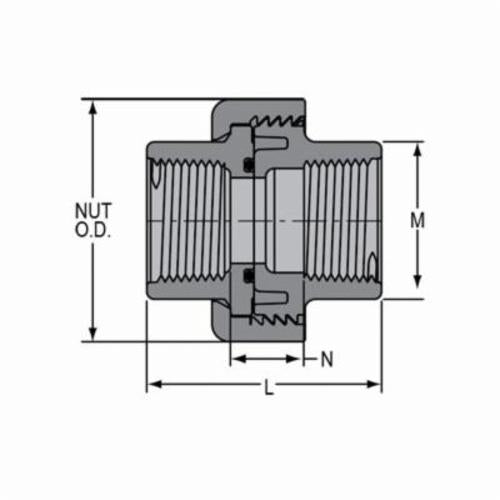

DIMENSIONS
DIMENSIONS
|
LENGTH |
6.13 in |
|---|---|
|
WEIGHT |
12.11 lb |
PRODUCT OVERVIEW
All CPVC schedule 80 fittings shall be produced by Spears® Manufacturing Company from CPVC materials, cell classification 23447 conforming to ASTM Standard D 1784. All injection-molded fittings through 12 in shall be manufactured in compliance to ASTM F 439 and Certified by NSF® International for use with potable water service. All 14 in through 24 in and fabricated fittings shall be produced in accordance with Spears® Specifications. All CPVC flanges shall be designed and manufactured to meet CL150 bolt pattern per ANSI Standard B16.5.
SPECIFICATIONS
|
Domestic/Import |
Domestic |
|---|---|
|
End Style |
FNPT |
|
Fitting/Connector Type |
Union |
|
Material |
CPVC |
|
Method of Manufacture |
Molded |
|
Nominal Size |
6 in |
|
Pressure Rating |
235 psi |
|
Schedule Rating |
SCH 80/XH |
|
Seal Material |
EPDM O-Ring |
|
Temperature Rating |
73 deg F |

$320.32
