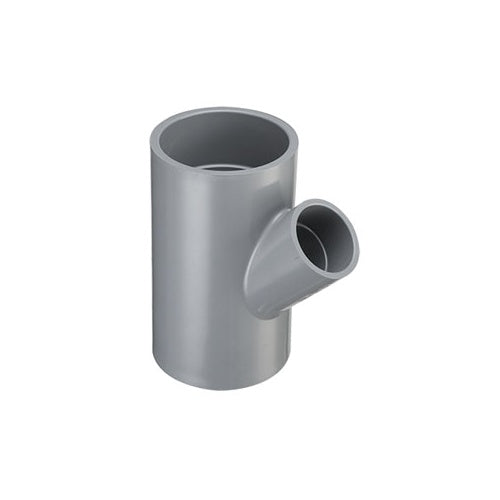

6 x 6 x 4" Reducing Wye - CPVC - Socket
6 x 6 x 4" Reducing Wye - CPVC - Socket
875-532C
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Elevated temperature fluid mediums require a de-rating of thermoplastic pipe maximum internal pressure ratings at 73 deg F

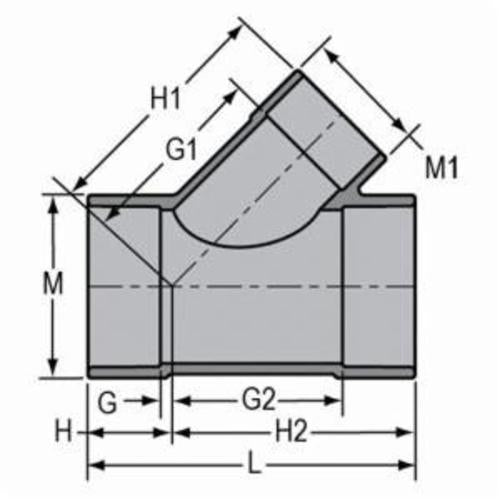

DIMENSIONS
DIMENSIONS
|
LENGTH |
12.66 in |
|---|---|
|
WEIGHT |
10.08 lb |
PRODUCT OVERVIEW
All CPVC schedule 80 fittings shall be produced by Spears® Manufacturing Company from CPVC materials, cell classification 23447 conforming to ASTM Standard D 1784. All injection-molded fittings through 12 in shall be manufactured in compliance to ASTM F 439 and Certified by NSF® International for use with potable water service. All 14 in through 24 in and fabricated fittings shall be produced in accordance with Spears® Specifications. All CPVC flanges shall be designed and manufactured to meet CL150 bolt pattern per ANSI Standard B16.5.
SPECIFICATIONS
|
Domestic/Import |
Domestic |
|---|---|
|
End Style |
Socket |
|
Fitting/Connector Type |
Wye |
|
Material |
CPVC |
|
Method of Manufacture |
Molded |
|
Nominal Size |
6 x 6 x 4 in |
|
Pressure Rating |
150 psi |
|
Schedule Rating |
SCH 80/XH |
|
Temperature Rating |
73 deg F |

$184.58
