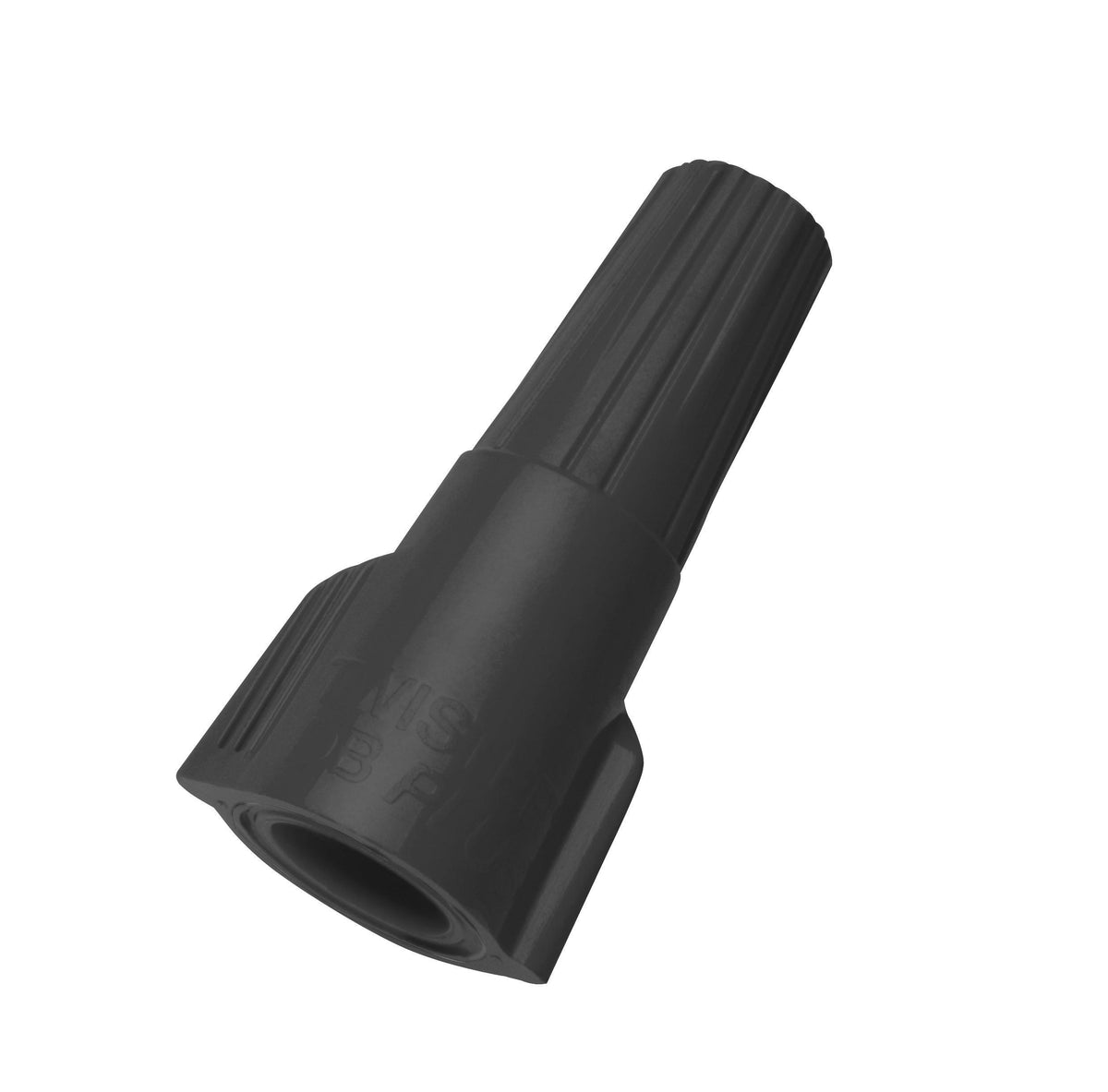

60 Series - Wire Connector - Thermoplastic Polyester
60 Series - Wire Connector - Thermoplastic Polyester
30-1160
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• 100% Silicone-based sealant protects against moisture and corrosion
• Expanding, live-action square-wire spring for fast, secure and long-lasting connections
• Deep skirt provides superior moisture resistance to protect connections
• UnderGround Wire Connectors are designed to secure and protect wire connections in a wide variety of below-grade, wet location and direct burial applications
DIMENSIONS
DIMENSIONS
|
WIDTH |
0.64 in |
|---|---|
|
HEIGHT |
1.69 in |
|
WEIGHT |
0.4 lb |
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
100% Silicone-based sealant protects against moisture and corrosionUL Listed to 486G Sealed Twist-On Wire Connector for use in damp/wet locations or above-grade applicationsEasy to apply, pre-filled twist-on wire connectorsExpanding, live-action square-wire spring for fast, secure and long-lasting connectionsDeep skirt provides superior moisture resistance to protect connectionsTough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)For use in damp/wet location or direct burial/below-grade applicationsThe connector made specifically for harsh underground environments.UnderGround Wire Connectors are designed to secure and protect wire connections in a wide variety of below-grade, wet location and direct burial applications. Quick and easy application saves time and energy, eliminating the need for heat shrink, resin-packs, and multi-step corrosion kits.With an expanding, live-action spring and pre-filled with a silicone-based sealant, UnderGround Wire Connectors make fast, secure, and long lasting connections. The tough, thermoplastic shell provides extra protection against accidental impacts and the deep skirt provides superior moisture resistance, making these connectors UL Listed to 486G for use in damp, wet or direct burial, below-grade applications.Yellow MudBug Utility Wire Connectors off the same moisture and corrosion resistant properties as the UnderGround connectors but are designed for utility tracer line applications.Due to the pre-filled silicone sealant, UnderGround and MudBug Utility Wire Connectors are designed as a one-use only connection.Not for use in continual submersion applications.
SPECIFICATIONS
|
Dimensions |
0.64 in W x 1.69 in H |
|---|---|
|
Material |
Thermoplastic Polyester |
|
Series |
60® Series |
|
Shell Style |
Winged |
|
Specifications |
1/2 in Wire Strip, (1) 20 AWG with (1) 18 AWG Minimum, (2) 12 AWG, (1) 10 AWG Maximum Conductor Combination Size |
|
Spring Type |
Live Action/Square Wire |
|
Temperature Rating |
105 deg C |
|
Voltage Rating |
600 V AC |
|
Wire Size |
20 to 10 AWG |
|
Wire Type |
Solid/Stranded Copper |
