IDEAL

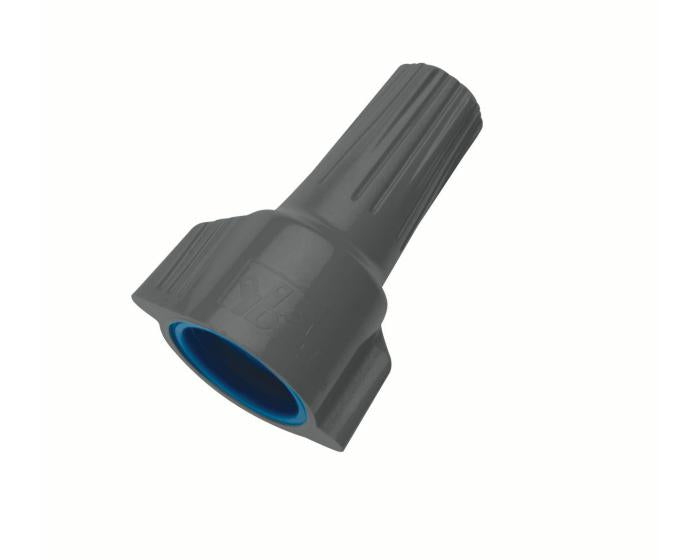

63 Series - Wire Connector - Thermoplastic Polyester

63 Series - Wire Connector - Thermoplastic Polyester

30-1163



Regular price $22.04
Sale price $22.04 Regular price $17.28
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• 100% Silicone-based sealant protects against moisture and corrosion
• Swept wing design is built for comfort and efficiency
• Eliminates the need for heat-shrink or excessive taping

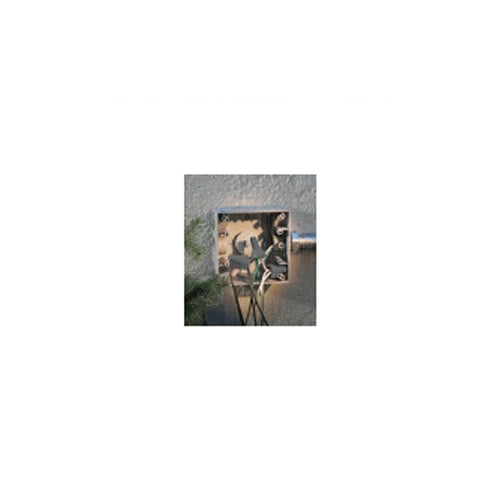

• Designed specifically for above-grade, interior or exterior connections exposed to damp, wet or corrosive environments, WeatherProof Wire Connectors are the perfect twist-on solution for connections that require protection from the elements

DIMENSIONS

WIDTH

1.06 in

HEIGHT

1.59 in

WEIGHT

0.27 lb

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW


100% Silicone-based sealant protects against moisture and corrosionUL Listed to 486G Sealed Twist-On Wire Connector for use in damp/wet locations or above-grade applicationsEasy to apply, pre-filled twist-on wire connectorsSwept wing design is built for comfort and efficiencyEliminates the need for heat-shrink or excessive tapingTough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)Models 61 and 63 approved for bonding and grounding applicationsFor use in damp/wet location or above-grade applicationsConnected and protected.Designed specifically for above-grade, interior or exterior connections exposed to damp, wet or corrosive environments, WeatherProof Wire Connectors are the perfect twist-on solution for connections that require protection from the elements. The swept-wing design makes the connector easy and comfortable to apply, while the pre-filled, silicone-based sealant protects against moisture and corrosion, eliminating the need for heat-shrink or excessive taping.WeatherProof Wire Connectors feature tough, flame-retardant shells that withstand most rugged environmental extremes and are listed to UL 486D for use in damp or wet locations that are above ground.Due to the pre-filled silicone sealant, WeatherProof Wire Connectors are designed as a one-use only connection.Not for use in continual submersion applications.


SPECIFICATIONS

Dimensions

0.81 in Dia x 1.0625 in W x 1.59375 in H

Material

Thermoplastic Polyester

Series

63® Series

Shell Style

Swept Wing/Twist-On

Specifications

5/8 in Wire Strip, (3) 14 AWG Minimum, (2) 8 AWG, (1) 10 AWG Maximum Conductor Combination Size

Spring Type

Live Action/Square Wire

Temperature Rating

105 deg C

Voltage Rating

600 V AC

Wire Size

16 to 6 AWG

Wire Type

Solid/Stranded Copper
