SIOUX CHIEF

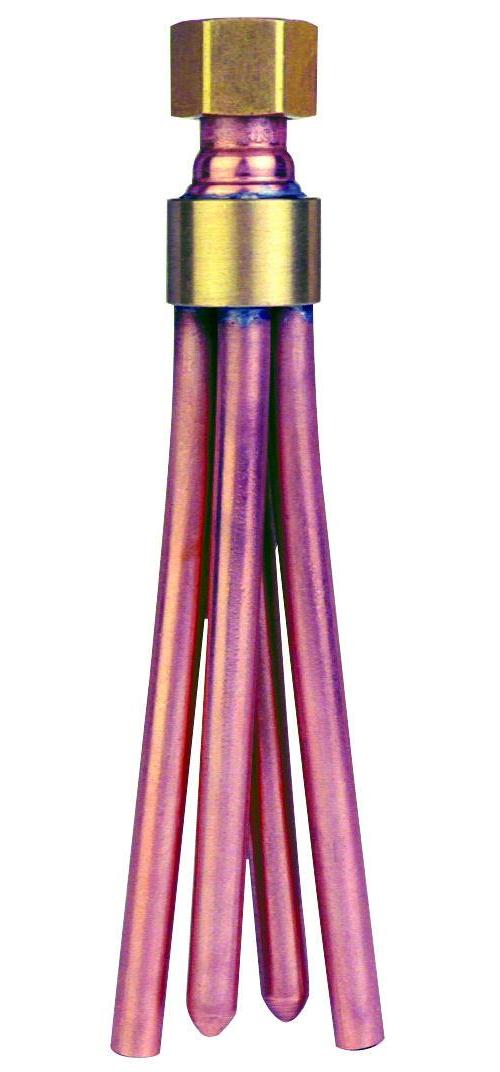

695-D - Trap Primer Distributor - 7-3/8" H - Copper

695-D - Trap Primer Distributor - 7-3/8" H - Copper

695-D432

$27.74
$27.74 $36.04
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Do NOT use thread sealant on FIP swivel threads
• FIP swivel inlet connection
• Available with two, three or four flexible copper branches

DIMENSIONS

HEIGHT

7.38 in

WEIGHT

0.46 lb

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

Sioux Chief 695 series trap primer splitters shall be installed in conjunction with Sioux Chief 695 series mechanical trap primers. Sioux Chief splitters shall allow multiple drains to be primed per trap primer device. Splitters shall connect to primer tailpiece below the vacuum breaker and allow for up to 8 drainage traps to be serviced/primed. Splitters shall connect with a female swivel or captured FIP connection.

SPECIFICATIONS

Connection

FNPT Swivel

Dimensions

7-3/8 in H

Material

Copper

Pipe Size

1/2 in

Series

695-D
