SYMMONS

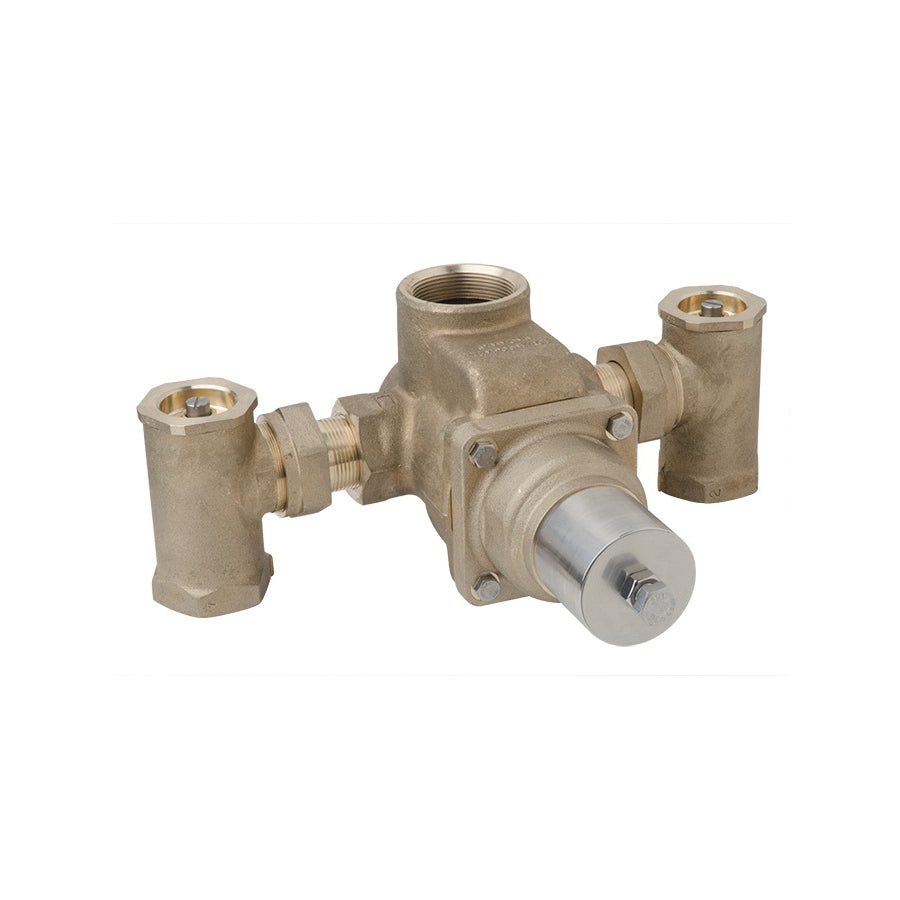

7 Series Tempcontrol - Thermostatic Mixing Valve - 38 GPM

7 Series Tempcontrol - Thermostatic Mixing Valve - 38 GPM

7-500



Regular price $1,176.50
Sale price $1,176.50 Regular price $1,524.75
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Backwards compatible with previous 6-500 and 5-500 series TempControl® valves
• Lead free

DIMENSIONS

LENGTH

7.69 in

WIDTH

9.63 in

WARRANTY

5 Years Limited

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW


The brass, bronze and stainless steel components of the new 7 series TempControl® Lead Free valves allow for precise temperature control and meet Federal Lead Free requirements. The tamper-resistant hex bolt combined with the optional cabinets help prevent unwanted temperature adjustments. Several "Factory assembled and tested" options available.


SPECIFICATIONS

Body Material

Brass/Bronze/Stainless Steel

Dimensions

7-11/16 in L x 9-5/8 in W

Flow Rate

38 gpm

Inlet Connection

1 in FNPT

Outlet Connection

1-1/4 in FNPT

Pressure Rating

10 psi

Series

7 Series TempControl®

Temperature Rating

70 to 150 deg F
