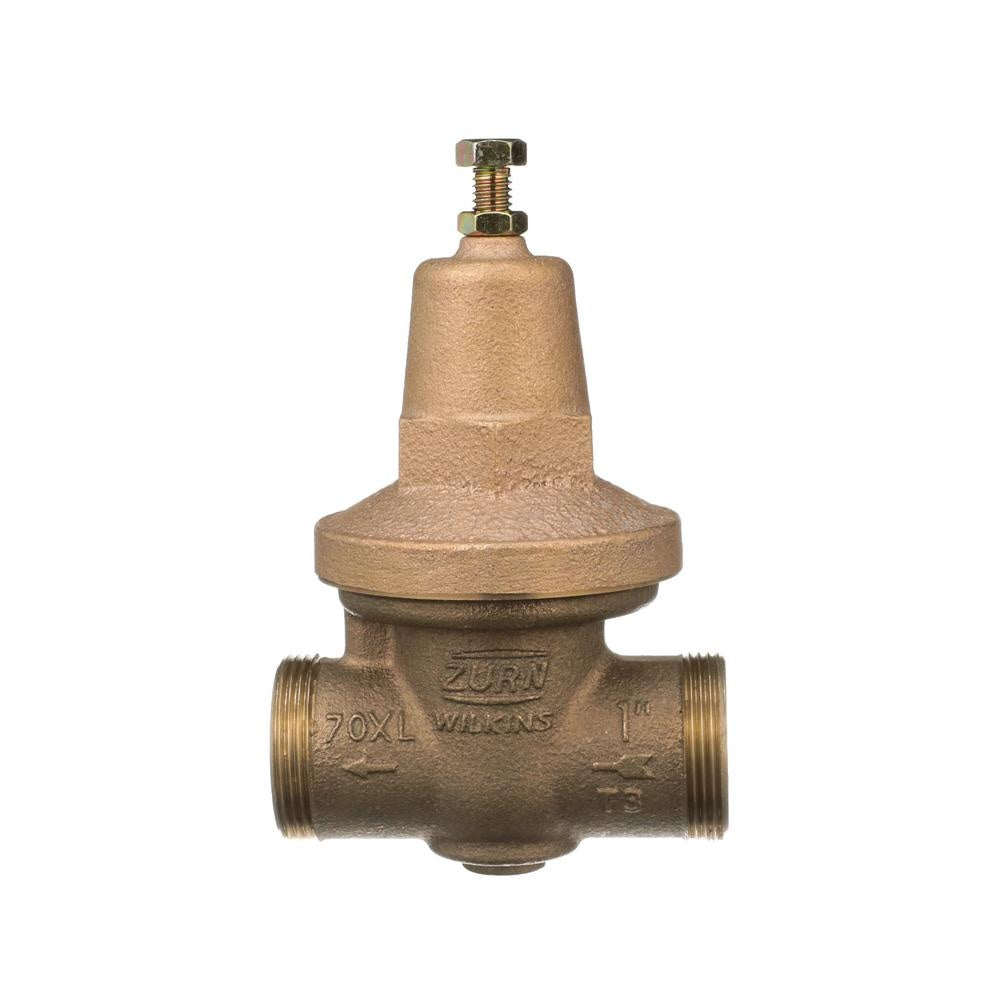

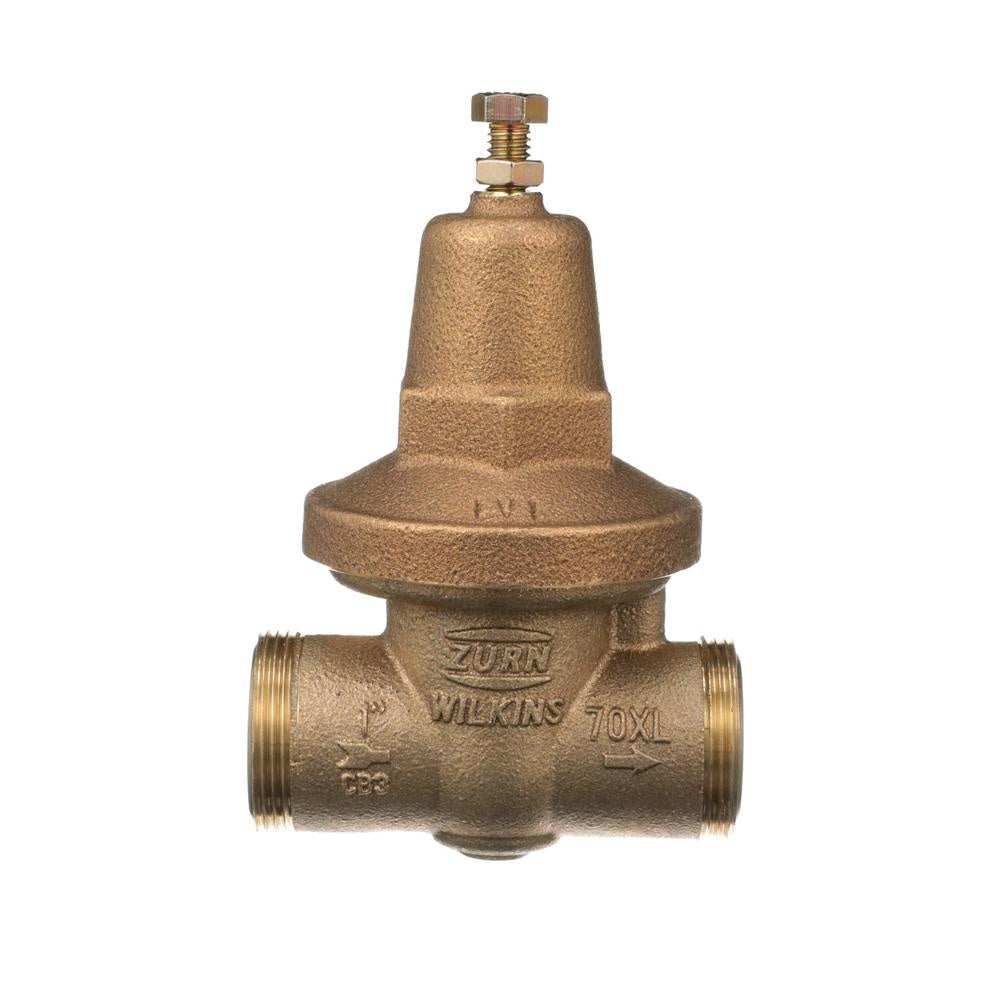

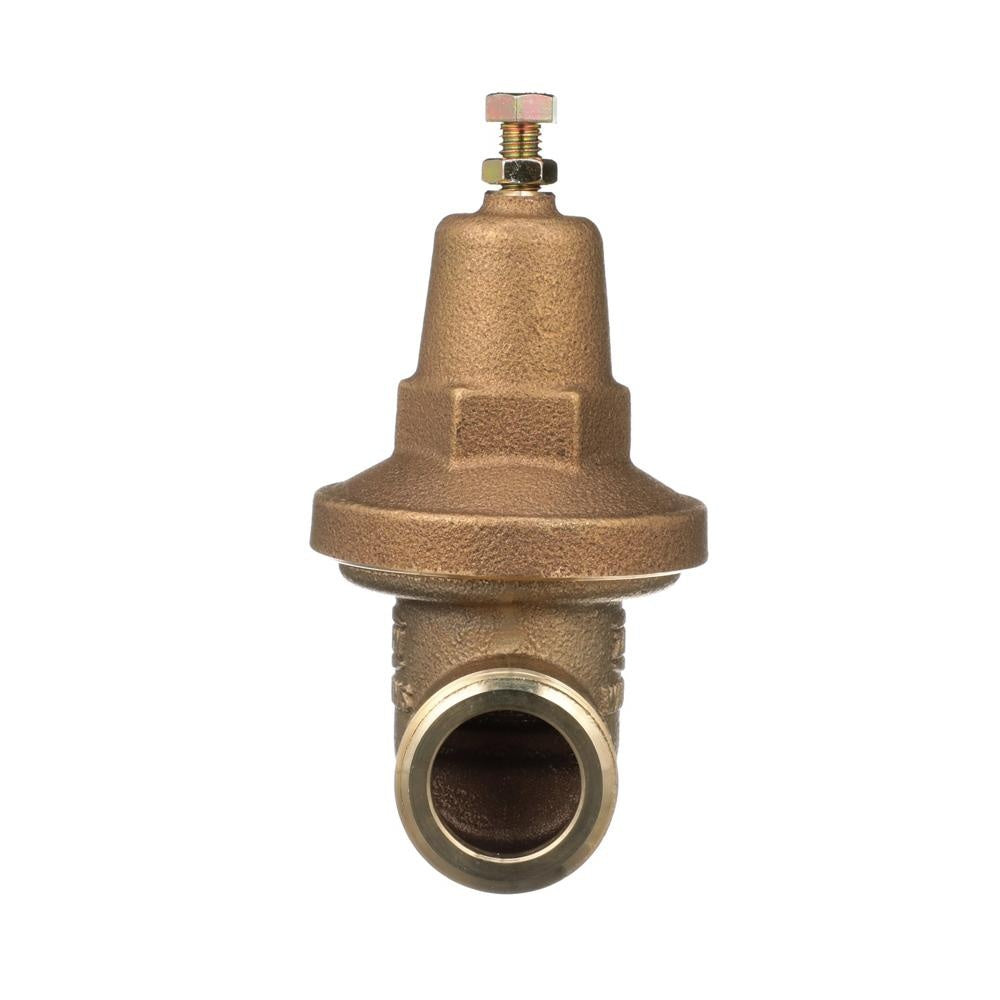

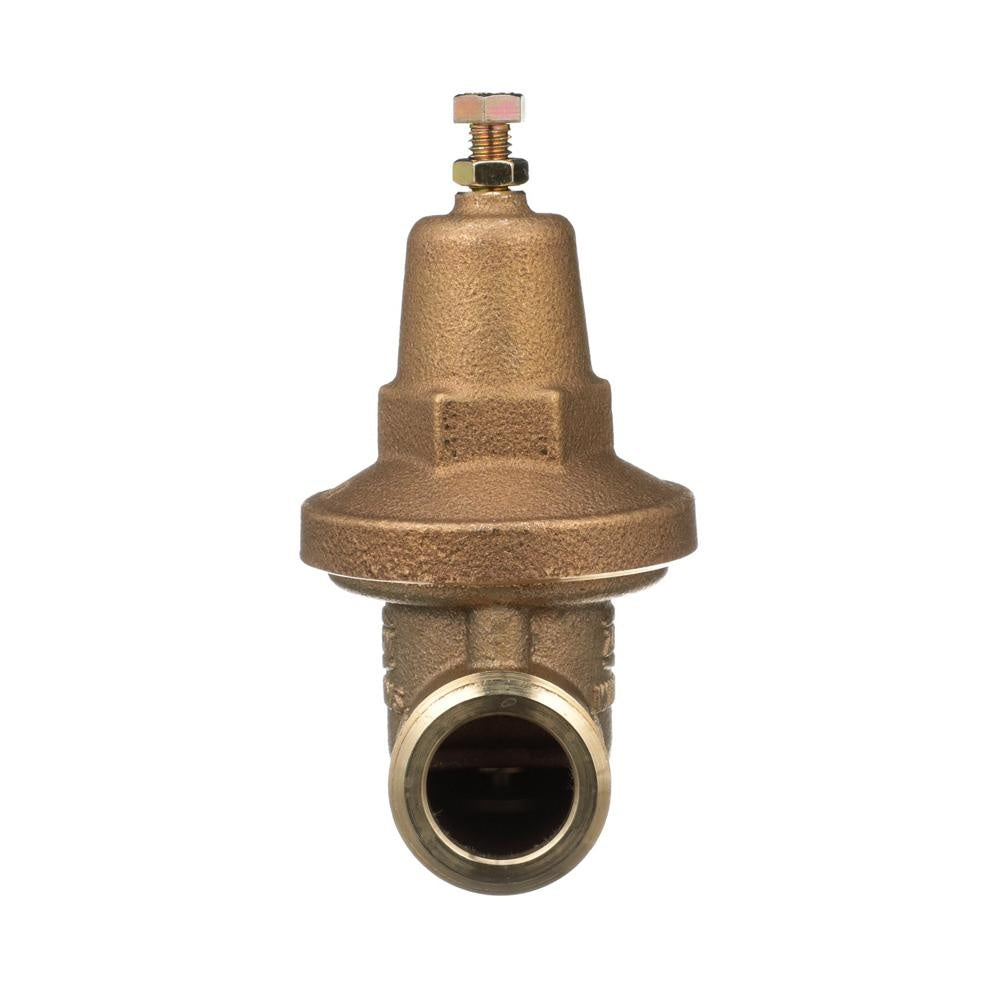

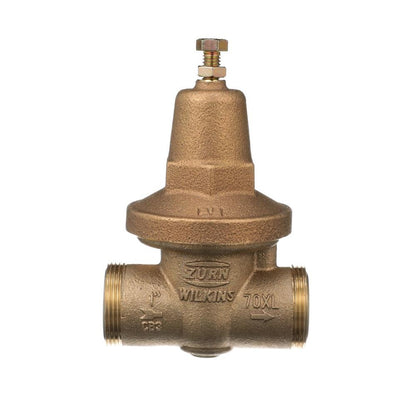

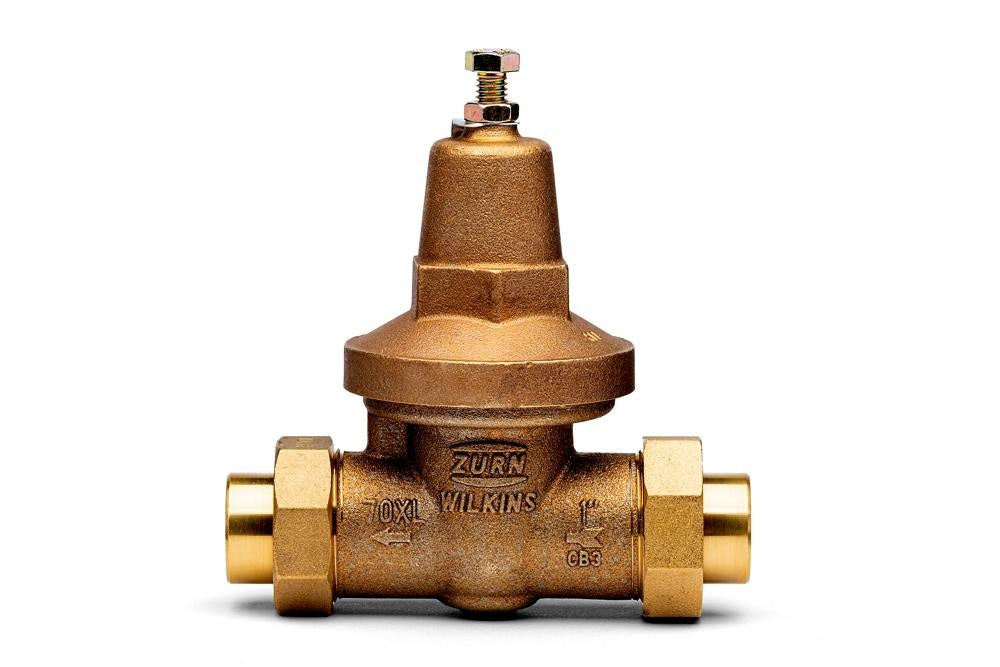

70XL - 1" Pressure Reducing Valve - Cast Bronze
70XL - 1" Pressure Reducing Valve - Cast Bronze
70XLDUC1
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
DIMENSIONS
DIMENSIONS
|
HEIGHT |
6.69 in |
|---|---|
|
WEIGHT |
5 lb |
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
The 1" 70XLDUC Pressure Reducing Valve comes with double union FNPT connection and FC (copper sweat) union connection. A contractor favorite, it provides a variety of residential and commercial customers with extreme stability, ruggedness, and ease of repair for more than 40 years. The 70XL features single union or double union connections, a cast bronze body and bell with stainless steel components, a 20-mesh strainer screen, and a unitized replaceable cartridge which reduces labor costs and time for required cleaning and maintenance. By installing the 70XL, you will conserve water and energy while protecting your water system, complying with plumbing codes, and ensuring ultimate safety.
SPECIFICATIONS
|
Body Material |
Cast Bronze |
|---|---|
|
Dimensions |
6-11/16 in H |
|
End Style |
Double Union Female C |
|
Inlet to Outlet Length |
5-7/8 in |
|
Media |
Water |
|
Nominal Size |
1 in |
|
Pressure Range |
300 psi |
|
Series |
70XL |
|
Softgoods Material |
Buna Nitrile/EPDM Elastomers |
|
Temperature Rating |
140 deg F |
|
Trim Material |
300 Stainless Steel Seat/Stem/Sleeve |

$284.34
