IDEAL

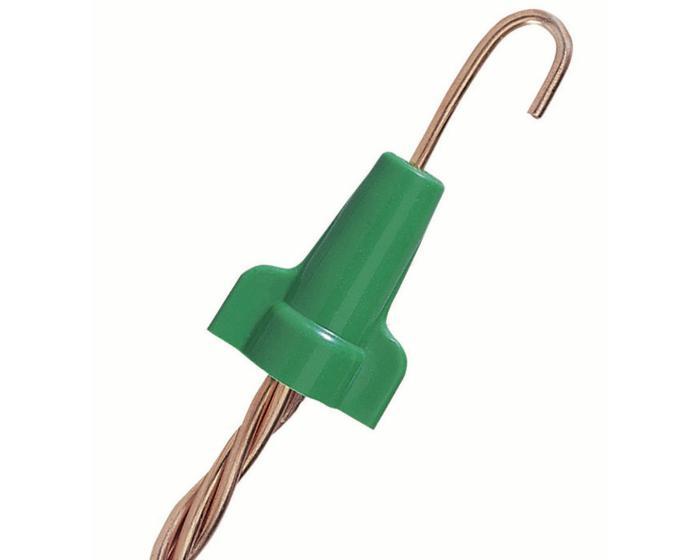

92 Grounding Wire Connector - Polypropylene - 600 V AC

92 Grounding Wire Connector - Polypropylene - 600 V AC

30-092



Regular price $26.95
Sale price $26.95 Regular price $19.67
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• The Wing-Nut Wire Connector provides an easy, secure grip when connecting a wide range of wires
• The specially designed contoured wings make for extra torque and quick work on any electrical job
• The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it
• It can also be reused on same size or larger combinations for quick and easy circuit changes and additions
• The Wing-Nut also features a tough, copolymer, flame-retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands

DIMENSIONS

WIDTH

0.91 in

HEIGHT

1.16 in

WEIGHT

0.74 lb

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW


The Wing-Nut Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions.The Wing-Nut also features a tough, copolymer, flame-retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands.


SPECIFICATIONS

Dimensions

29/32 in W x 1-5/32 in H

Material

Polypropylene

Series

92®

Shell Style

Winged

Specifications

2 to 5 Conductors, 14 to 2 AWG Minimum, 12 to 4 AWG Maximum Conductor Combination Size

Spring Type

Live Action/Square Wire

Temperature Rating

221 deg F

Voltage Rating

600 V AC

Wire Size

14 to 10 AWG

Wire Type

Solid/Stranded Copper
