ZURN WILKINS

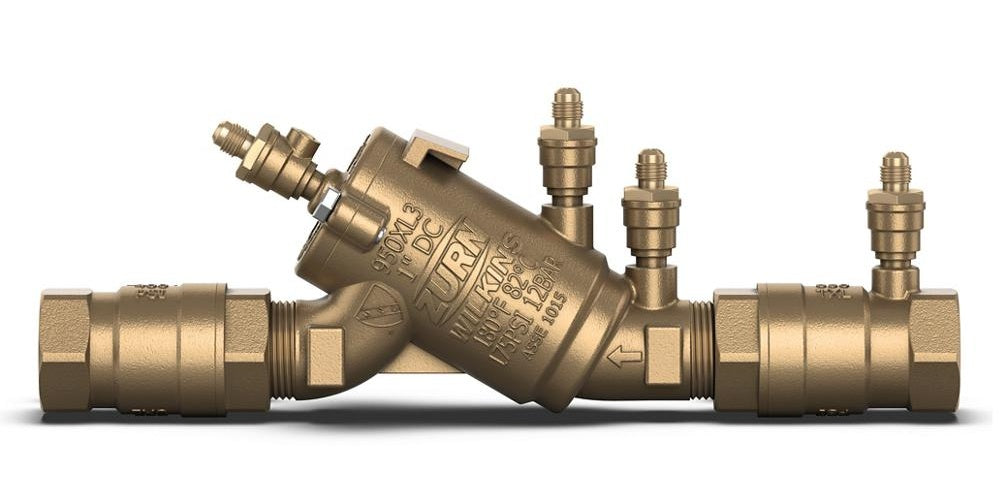

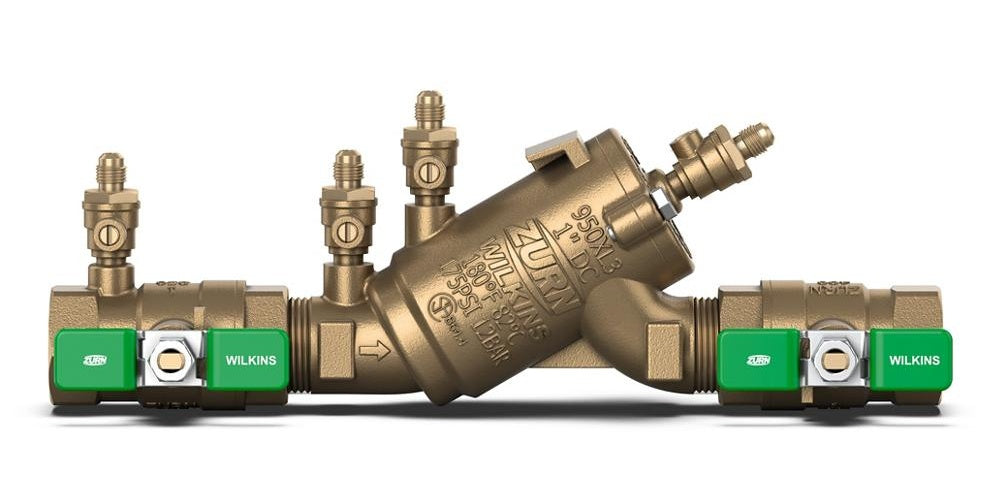

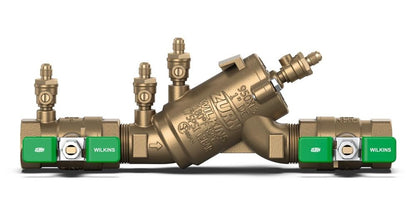

950XL3 - 3/4" Backflow Preventer - Low Lead Cast Bronze

950XL3 - 3/4" Backflow Preventer - Low Lead Cast Bronze

34-950XL3

$375.75
$375.75 $837.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• For piping with 3/4 in inner diameter
• Comes with full port QT ball valves with stainless steel handles and with integral male 45 flare SAE test fitting
• Compact and shortest bronze small backflow valve on the market allowing for installation versatility
• All-bronze body ensures durability against the elements, with a Noryl check body and stainless-steel fasteners to resist corrosion over time

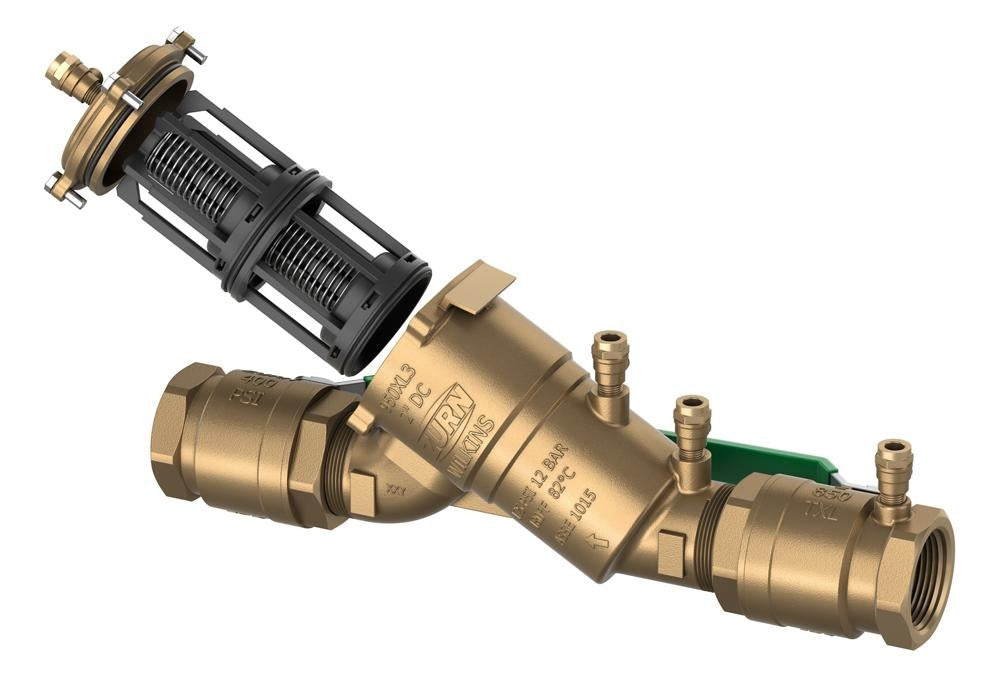

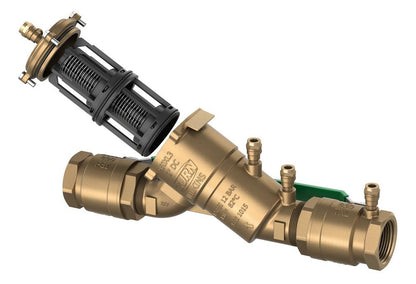

• EZSWAP modular check with top access speeds up repairs and replacements
• Test ports located on valves centerline make install and testing easy

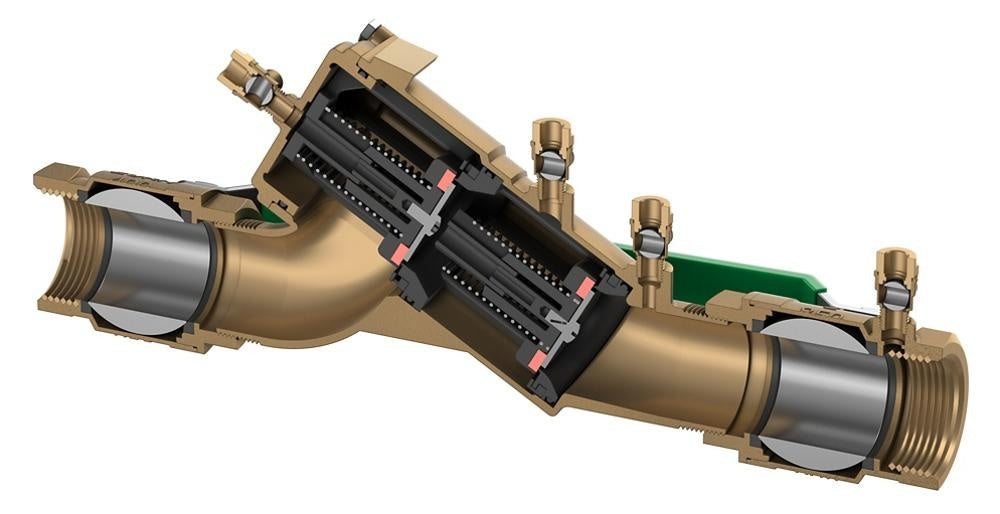

• Interlocking connected checks provide turn to access and disassemble

DIMENSIONS

LENGTH

9.47 in

WIDTH

2.88 in

HEIGHT

14.88 in

WEIGHT

4 lb

WARRANTY

1 Year Limited

DOCUMENTS & RESOURCES

Specification Sheet
Installation Instructions
Warranty Information
Drawings

PRODUCT OVERVIEW

The 3/4" Wilkins 950XL3 Double Check Backflow Assembly provides low hazard protection against backsiphonage and backpressure in potable water applications. The 900XL3 series offers the most compact and lightest bronze small backflow available on the market today. The design combines the robust time-tested construction of our 900XL/XL2 series with the innovative modular check EZSwap™ design of our 300 series allowing for ease of repair and greater labor savings compared to all other brands.

SPECIFICATIONS

Backflow Type

Double Check

Ball Valve/Gate Valve Type

Quarter-Turn Ball Valve

Body Material

Low Lead Cast Bronze

Dimensions

14-7/8 in H x 2-7/8 in W x 9-15/32 in L

Domestic/Import

Import

End Style

FNPT

Media

Water

Nominal Size

3/4 in

Port Type

Test

Pressure Rating

175 psi

Series

950XL3

Temperature Rating

33 to 180 deg F
