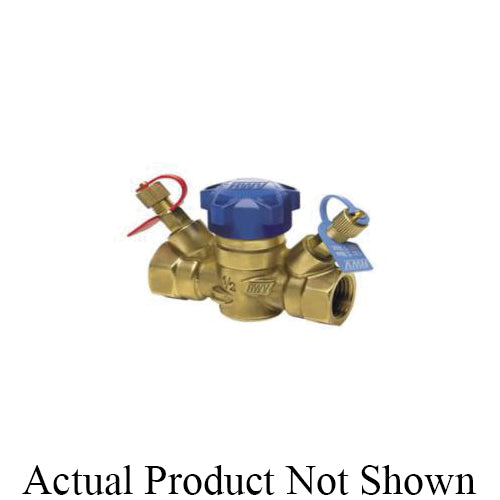

9527AB - 3/4 Hydronic Balancing Valve - 2.19 GPM - Brass

9527AB - 3/4 Hydronic Balancing Valve - 2.19 GPM - Brass

34RW9527AB

$107.83
$107.83 $187.62
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Variable orifice design
• On/off capability
• Integral memory stop
• Ready-to-mount on/off wax actuator
• Tolerance on nominal CV for fully open value +/-10%
• Provided with mounted joint ends

DIMENSIONS

LENGTH

3.5 in

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

SPECIFICATIONS

Body Material

Brass

Dimensions

3-1/2 in L

End Style

NPT

Flow Rate

2.19 gpm

Media

Water

Nominal Size

3/4 in

Pressure Class

300 lb WOG

Pressure Rating

300 lb WOG

Series

9527AB

Softgoods Material

EPDM Perox Disc Gasket/Stem O-Ring

Temperature Rating

15 to 260 deg F

Trim Material

Stainless Steel
