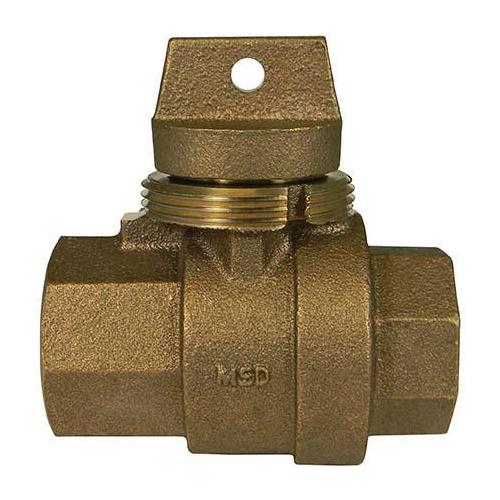

A.Y. McDonald 5129-192 Minneapolis Pattern Ball Curb Stop, 1 in, FNPT, Brass Body, EPDM Softgoods

A.Y. McDonald 5129-192 Minneapolis Pattern Ball Curb Stop, 1 in, FNPT, Brass Body, EPDM Softgoods

AY761051



Regular price $179.40
Sale price $179.40 Regular price $214.15
Shipping calculated at checkout.
Loading availability...
Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• PTFE coated brass ball rotates 360 deg
• Blow-out proof EPDM port seals
• End piece joint sealed with an EPDM O-Ring and thread locker
• Brass components in contact with potable water conform to ASTM B584, UNS C89833 (latest revision) and identified with NL
• Brass components not in contact with potable water conform to ASTM B62 and ASTM B584, UNS C83600 -85-5-5-5 (latest revision)
• EPDM O-ring

WARRANTY

Limited

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW


A.Y. McDonald® ball valve curb stops maintain their low turning torques and bubble-tight 300 psig water pressure rating due to the PTFE coated brass ball that is supported by two blow-out proof EPDM seals. The end piece joint is sealed with an EPDM O-ring and thread locker. McDonald® ball curb stops offer positive shut-off from either direction and are available with a wide variety of end connections or Minneapolis curb box threads. A brass 2 in square operating head that is easily pinned to existing curb stops is available separately.
