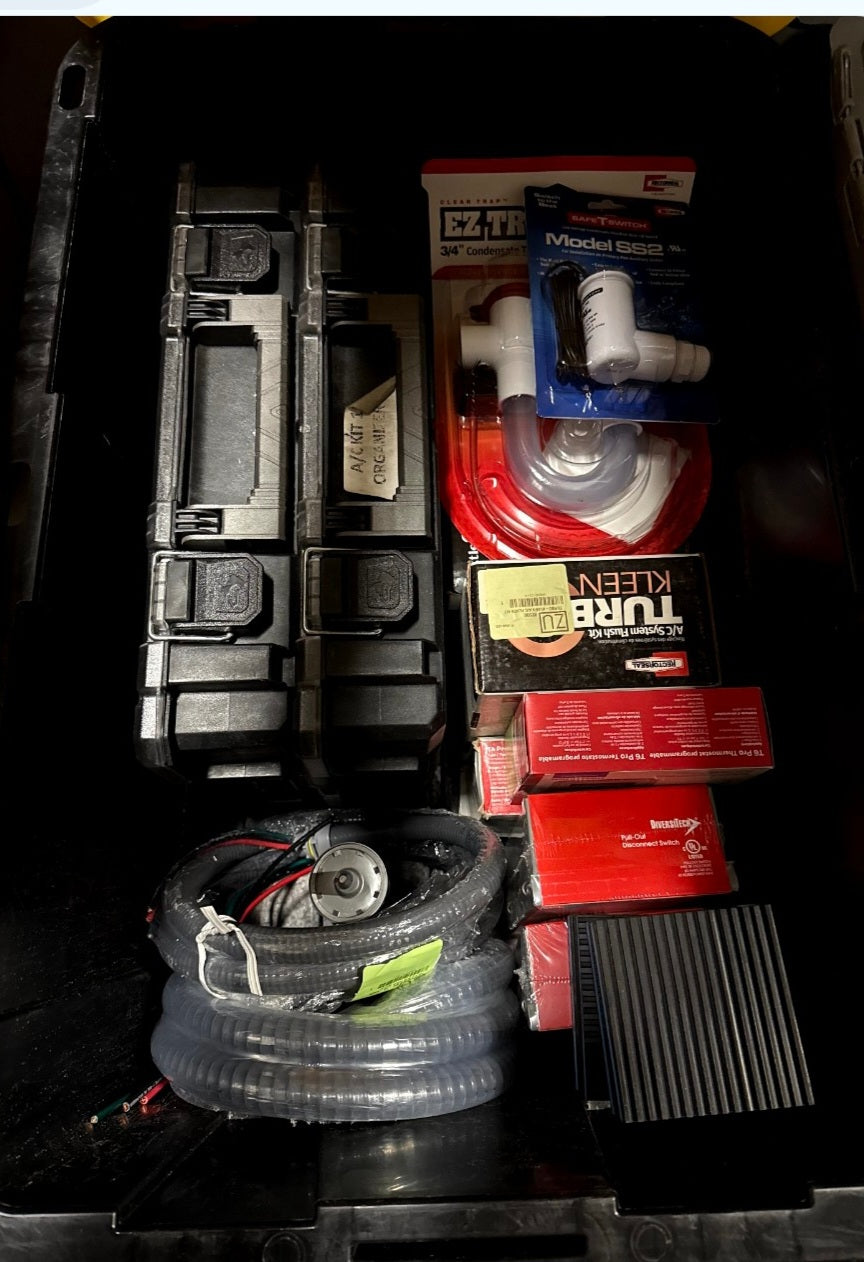

AC INSTALL KIT

AC Install Kit

A complete kit for air conditioning installation, containing all the essential copper and PVC fittings, connectors, fuses, and tools needed for a standard setup. Designed for efficiency and convenience, it ensures you have everything on hand for a smooth AC install.

What’s Inside:
Copper Fittings – Couplings and 90° elbows for various copper pipe sizes.
PVC Fittings – Couplings, elbows, tees, and adapters for condensate and drainage lines.
Liquid-Tight Connectors – Straight and 90° elbows for secure electrical connections.
Fuses – Dual-element fuses ranging from 15A to 60A.
Other Materials/Tools – Silicone caulk, flush kit, condensate pump, thermostats, disconnect switches, mounting pads, EZ trap, and A/C whip.

Copper Fittings

• W01901 – 1/4" Copper Coupling × 4
• C165-0090 – 3/4 OD Copper Coupling × 4
• C165-0149 – 7/8 × 3/4 OD Copper Reducing Coupling × 4
• C165-0100 – 7/8 OD Copper Coupling × 4
• C242-0002 – 3/8 OD LS Copper 90° Elbow × 4
• C242-0090 – 3/4 OD LS Copper 90° Elbow × 4
• C242-0100 – 7/8 OD LS Copper 90° Elbow × 4
• C272-0002 – 3/8 OD ST LS Copper 90° Elbow × 4
• C272-0090 – 3/4 OD ST LS Copper 90° Elbow × 4
• C272-0100 – 7/8 OD ST LS Copper 90° Elbow × 4

PVC Fittings

• 429-007 – 3/4 PVC Coupling Slip × Slip × 4
• 406-007 – 3/4 PVC 90° Elbow Slip × Slip × 6
• 410-007 – 3/4 PVC Male × Slip Elbow × 2
• 417-007 – 3/4 PVC 45° Elbow Slip × Slip × 4
• 401-007 – 3/4 PVC Tee Slip × Slip × Slip SCH40 × 2
• 436-007 – 3/4 PVC Male Adapter × 2

Liquid-Tight Connectors

• NMLT50 – 1/2" Liquid-Tight Straight Union × 2
• NMLT75 – 3/4" Liquid-Tight Straight Union × 2
• NMLT9050 – 1/2" Liquid-Tight 90° Elbow × 2
• NMLT9075 – 3/4" Liquid-Tight 90° Elbow × 2

Fuses

• FLNR015T – Dual Element Fuse 15A × 2
• FLNR020T – Dual Element Fuse 20A × 2
• FLNR025T – Dual Element Fuse 25A × 2
• FLNR030T – Dual Element Fuse 30A × 2
• FLNR035T – Dual Element Fuse 35A × 2
• FLNR040T – Dual Element Fuse 40A × 2
• FLNR045T – Dual Element Fuse 45A × 4
• FLNR050T – Dual Element Fuse 50A × 2
• FLNR060T – Dual Element Fuse 60A × 2

Other Materials / Tools

• 08643 – 10 oz Silicone Caulk Gray × 1
• 82500 – Turbo-Kleen A/C Flush Kit × 1
• 554650 – Condensate Pump w/Safe Switch × 1
• TH4110U2005/U – T4 Pro Therm 1 Hot / 1 Cold × 1
• TH6220U2000/U – T6 Pro Therm 2 Hot / 2 Cold × 1
• DDS-30 – Disconnect Switch 30A × 1
• DDS-60 – Disconnect Switch 60A × 1
• MP-4E – Mounting Pad 4x4x7/8 × 4
• 97637 – Safe-T-Switch SS2 × 1
• 83114 – 3/4" EZ Trap w/Brush × 1
• B6-34-6NM – 8STR 3/4 × 6' PVC A/C Whip × 1
