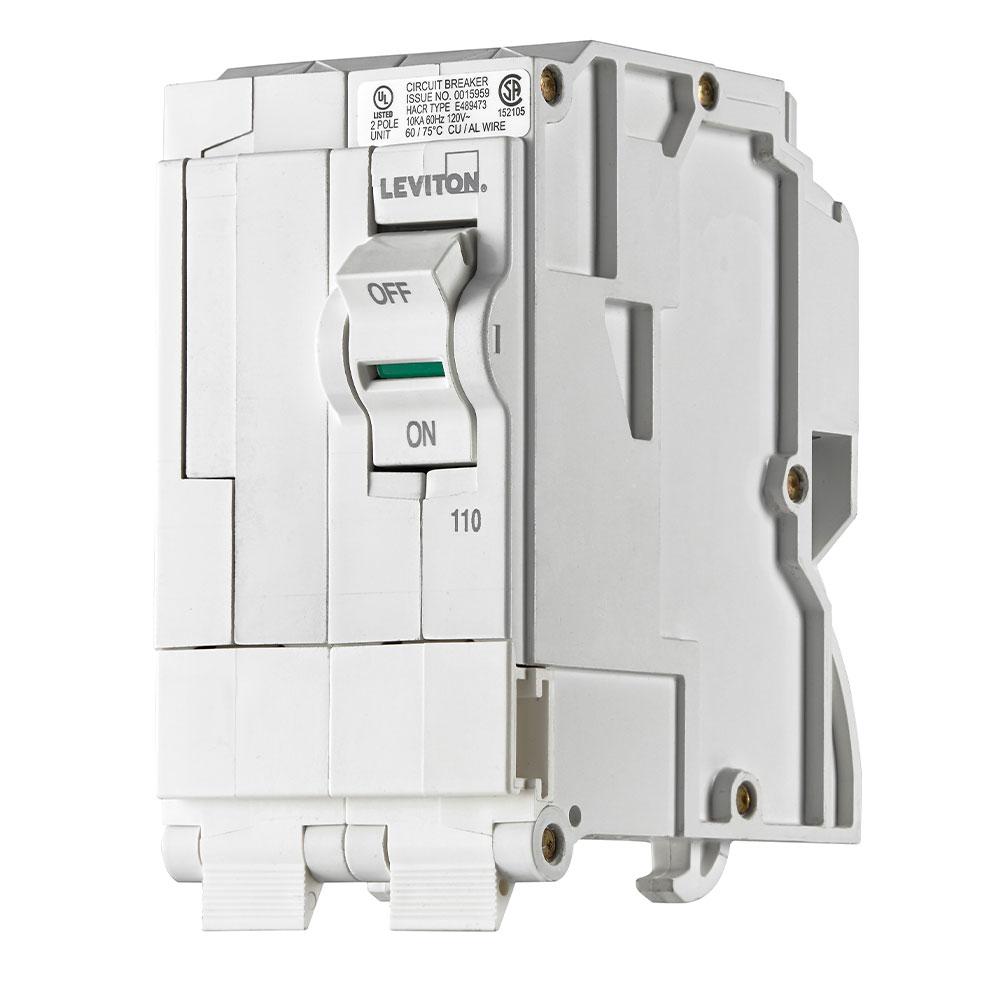

AFCI/GFCI Basic Standard Branch Circuit Breaker - Plug-On
AFCI/GFCI Basic Standard Branch Circuit Breaker - Plug-On
LB211
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
DIMENSIONS
DIMENSIONS
|
WIDTH |
2 in |
|---|---|
|
HEIGHT |
3.9 in |
|
WEIGHT |
1.08 lb |
WARRANTY
WARRANTY
10 years Limited
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
Leviton® circuit breakers provide overload and short circuit protection and feature an all plug-on design. All hot and neutral wires terminate at custom lugs in the panel, not at the circuit breaker, so the entire panel can be wired at rough in without circuit breakers installed. Branch circuit breakers are easily plugged-on at final installation. Circuit breakers also feature color indicators in the handle to easily see operational status at a glance.
SPECIFICATIONS
|
Amperage Rating |
110 A |
|---|---|
|
Connection Type |
Plug-On |
|
Dimensions |
3.9 in H x 2 in W x 3.1 in D |
|
Interrupt Rating |
10 kA |
|
Mounting Type |
Plug-On |
|
Number of Poles |
2 |
|
Temperature Rating |
-40 to 85 deg C |
|
Type |
AFCI/GFCI Basic Standard |
|
Voltage Rating |
120/240 V AC |

$146.88
