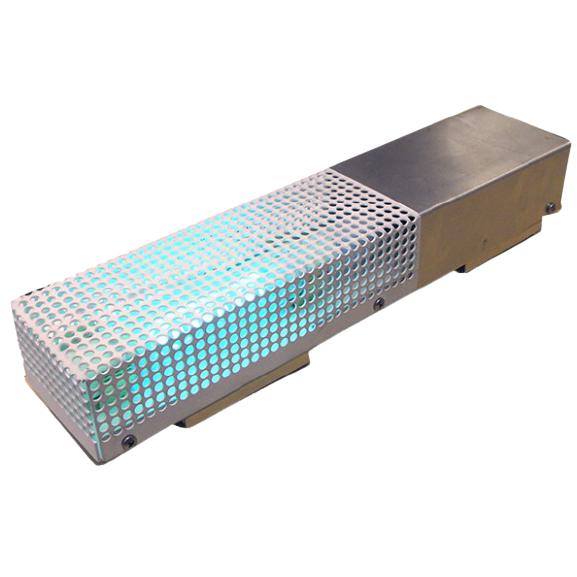

Air Purifier - 1200 to 3000 CFM

📦 What it is:

A 24-volt HVAC air purification device that installs inside or on an air handler/duct system. It uses PHI-cell technology (UV + catalytic process) to treat air as it passes through the HVAC system.

🧾 Key specs:

• Model: PHI-PKG9-24V
• Voltage: 24 VAC control power
• Power draw: ~11W
• Airflow range: 1,200–3,000 CFM
• HVAC size: 3.5 to 7.5 ton systems
• Mount: magnetic attachment to blower cabinet
• Material: Aluminum housing

🔧 What it’s used for:

Installed in HVAC systems to:

• Reduce odors (smoke, cooking, pets)
• Lower VOCs (chemical fumes)
• Reduce bacteria, viruses, and mold spores
• Improve indoor air quality continuously while HVAC runs

⚙️ How it works:

• Uses PHI (Photohydroionization) technology
• UV light interacts with a catalyst
• Produces low-level reactive ions (like hydrogen peroxide vapor)
• Neutralizes contaminants in moving air stream

🧠 Simple explanation:

It’s basically a 24V HVAC-mounted air cleaner that continuously treats the air inside a duct system to reduce odors, germs, and airborne contaminants while the system runs.
