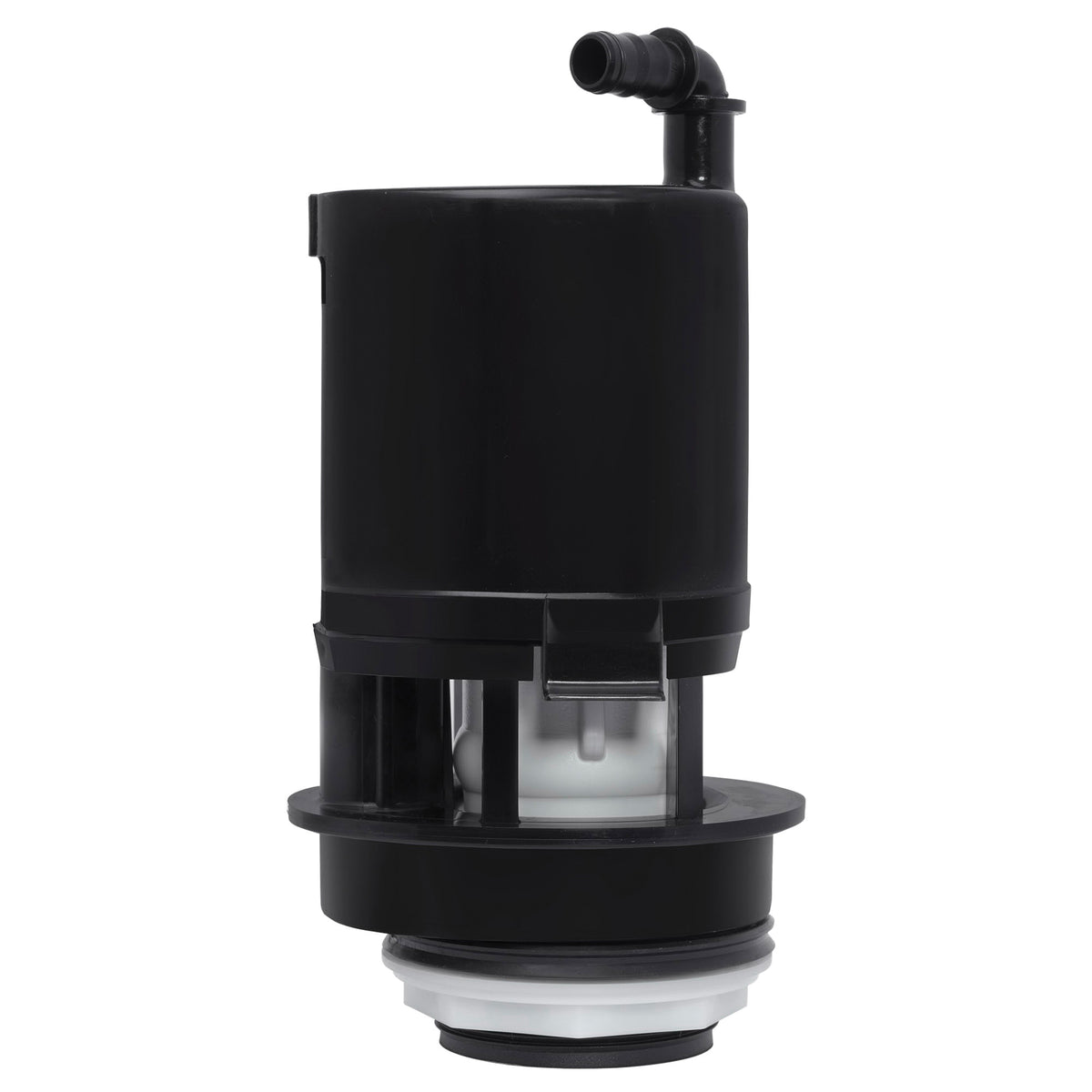

American Standard 7381551-401.0070A Activate® Flush Valve Tower Assembly, For Use With Studio® ActiVate™ Right Height® Model 2795.119/2794.119 Elongated/Round Front 2-Piecec Toilet, Import

• Turn off the water supply and flush the toilet to empty the tank
• Remove the tank cover
• Disconnect the supply line and remove the tank nuts to free the tank from the bowl
• Open the cover on the battery compartment and disconnect the battery cable from the battery terminal
• Pull the locking collar off of the hose assembly using a twisting motion then remove the hose from the flush valve body
• Make sure the O-ring is reinstalled on the barb elbow of the flush valve tower
• Remove the refill tube clip from the flush valve body
• Remove the nut from the bottom of the tank using a counterclockwise motion
• Remove the friction washer and pull the valve out from the inside of the tank
