SIOUX CHIEF

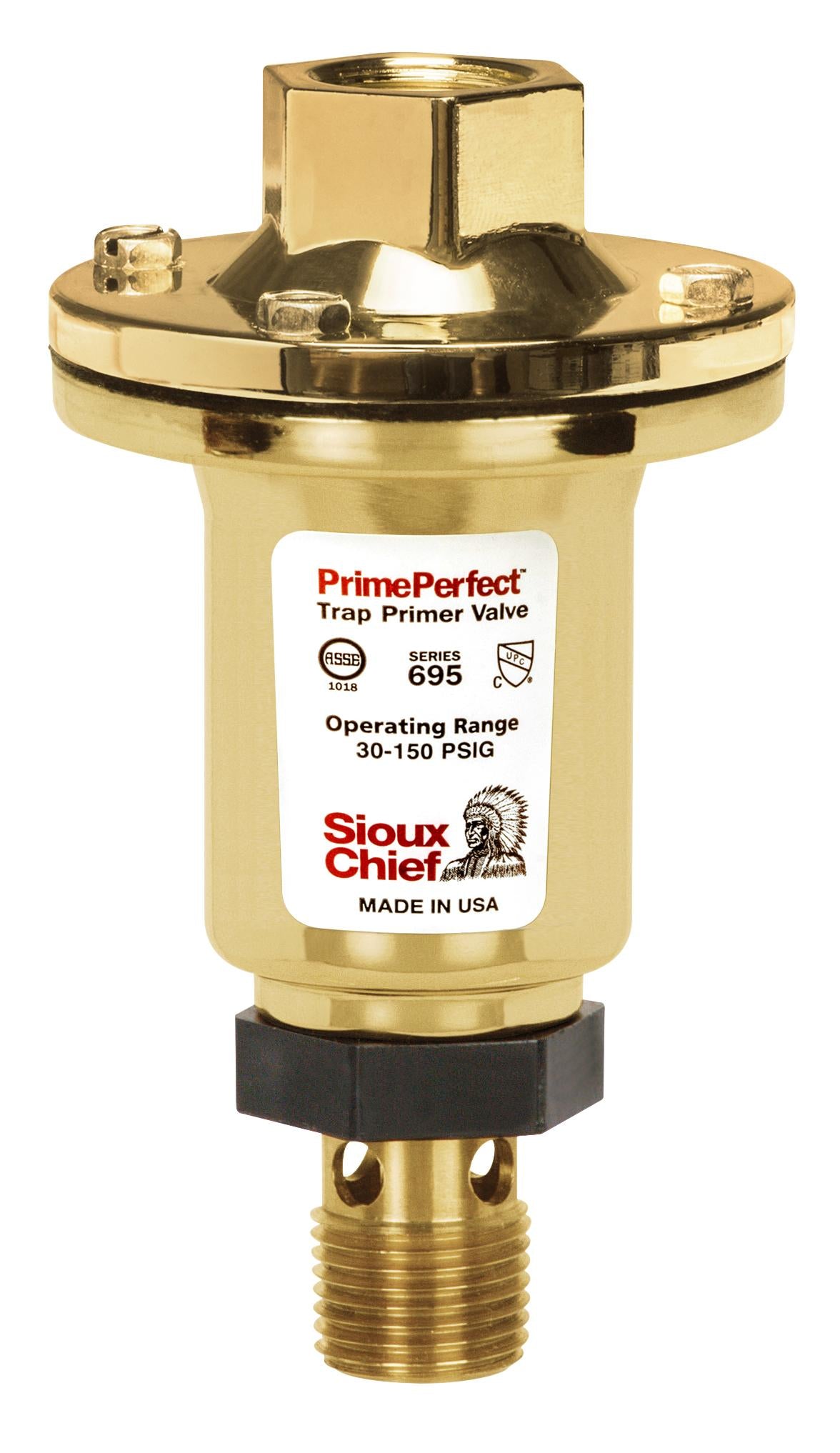

Automatic Trap Prime Valve - 695-01

Automatic Trap Prime Valve - 695-01

695-01

$70.90
$70.90 $92.13
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• DO NOT use thread sealant compound
• For use in accessible locations only
• Can service up to eight traps using splitter and distributors
• Mechanically activates to replenish water in floor drain traps to prevent the escape of sewer gases
• Water release is factory set to 0.25oz per activation - no field adjustment necessary
• Activates with a 10 PSIG pressure drop at operating pressure of 30-150 PSIG
• Debris screen with large openings to prevent clogging from sediment and debris

DIMENSIONS

WEIGHT

1.36 lb

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

Where replenishment of water in floor drain traps is required; trap primer valves shall be 1/2 in FIP inlet x 1/2 in MIP outlet, automatic trap primer valves which activate with a 10 PSIG pressure drop between 30-150 PSIG. Water release shall be factory set. Trap primer valve shall have large port openings and a noncorrosive brass finish. Must be UPC/IAPMO listed, and ASSE certified to the ASSE 1018 standard.

SPECIFICATIONS

Series

695

Type

Automatic
