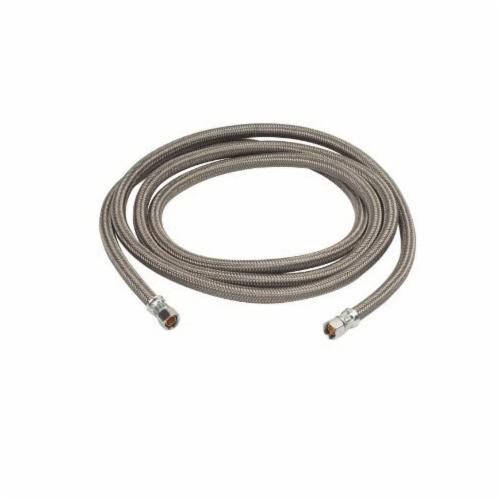

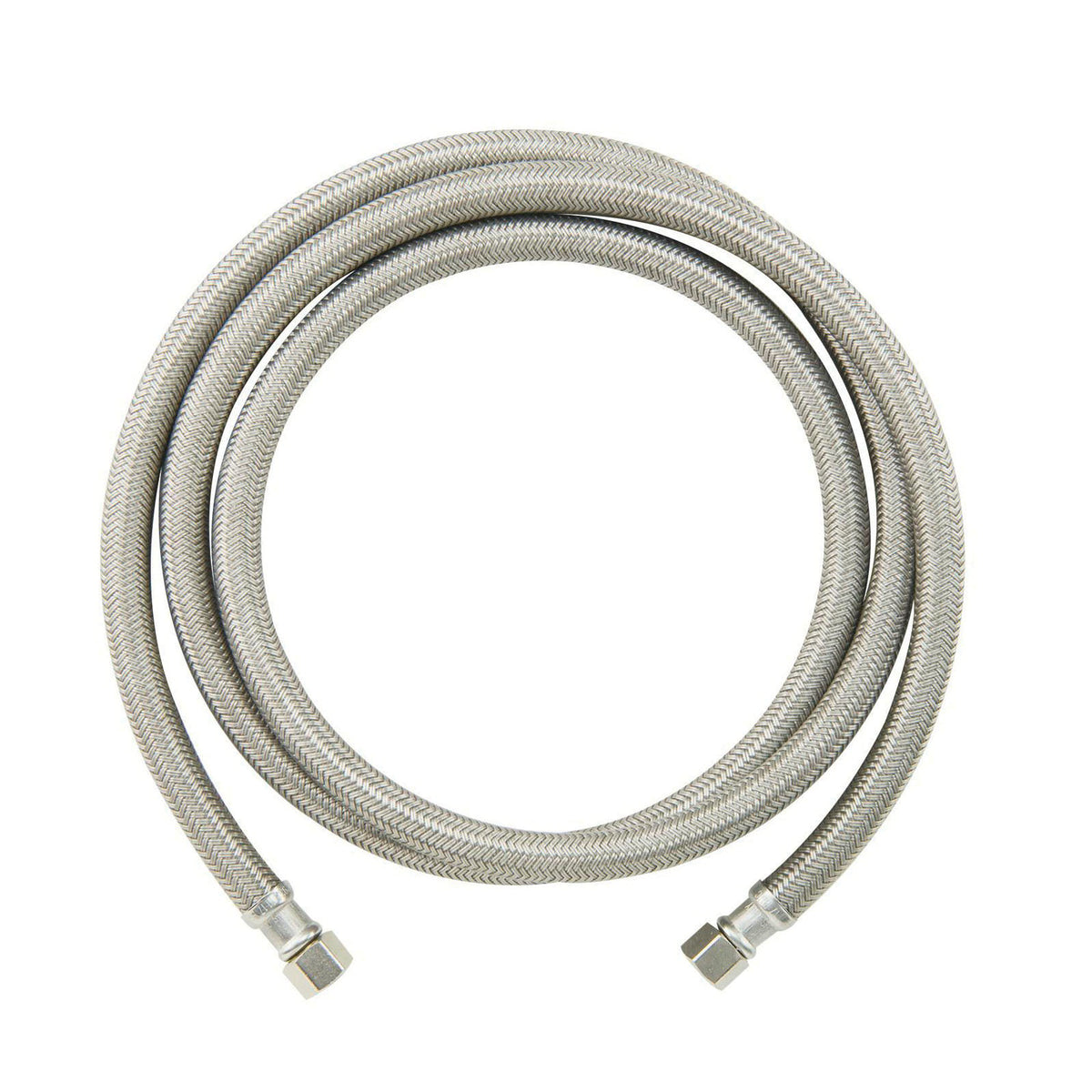

B1-Dw - 3/8" Lead Free Braided Water Dishwasher Connector
B1-Dw - 3/8" Lead Free Braided Water Dishwasher Connector
B1-72DW F
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• For use in potable water distribution systems in accessible locations only
• Bends freely, without kinking or crimping, installation is easier, especially in cramped quarters
• External corrosion resistance to common household, tile and glass cleaners
• Internal corrosion resistance to harsh water conditions
• For use indoor
• 180 deg F intermittent temperature
• F: individually flag labeled
DIMENSIONS
DIMENSIONS
|
LENGTH |
72 in |
|---|---|
|
WEIGHT |
0.52 lb |
PRODUCT OVERVIEW
BrassCraft® Speedi Plumb® PLUS 3/8 in Compression inlet x 3/8 in Compression outlet flexible braided polymer water connector. Used to connect the water supply to your dishwasher, this connector features a high tenacity, multi-filament yarn, protected by a special polymer coating for optimum corrosion resistance and durability. On the inside, our tough PVC tubing resists attack by chlorine, chloramines and other corrosive elements. The braided polymer fibers are designed to bend freely without kinking or crimping.
SPECIFICATIONS
|
Domestic/Import |
Import |
|---|---|
|
End Style |
Compression |
|
Inside Diameter |
0.3 in |
|
Material |
Polymer |
|
Nominal Size |
3/8 in |
|
Outside Diameter |
0.55 in |
|
Series |
B1-DW |
|
Temperature Rating |
40 to 140 deg F |
|
Type |
Flexible |
|
Working Pressure |
125 psi |

$29.23
