EATON

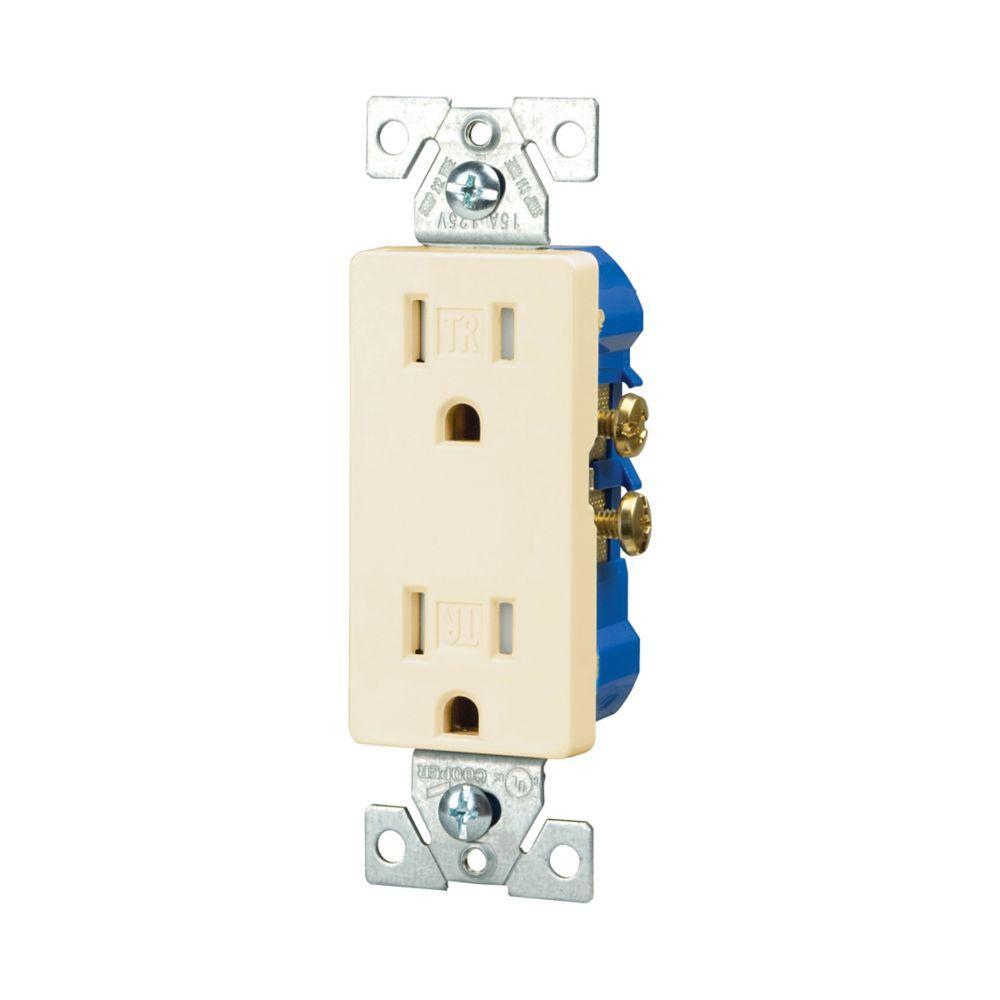

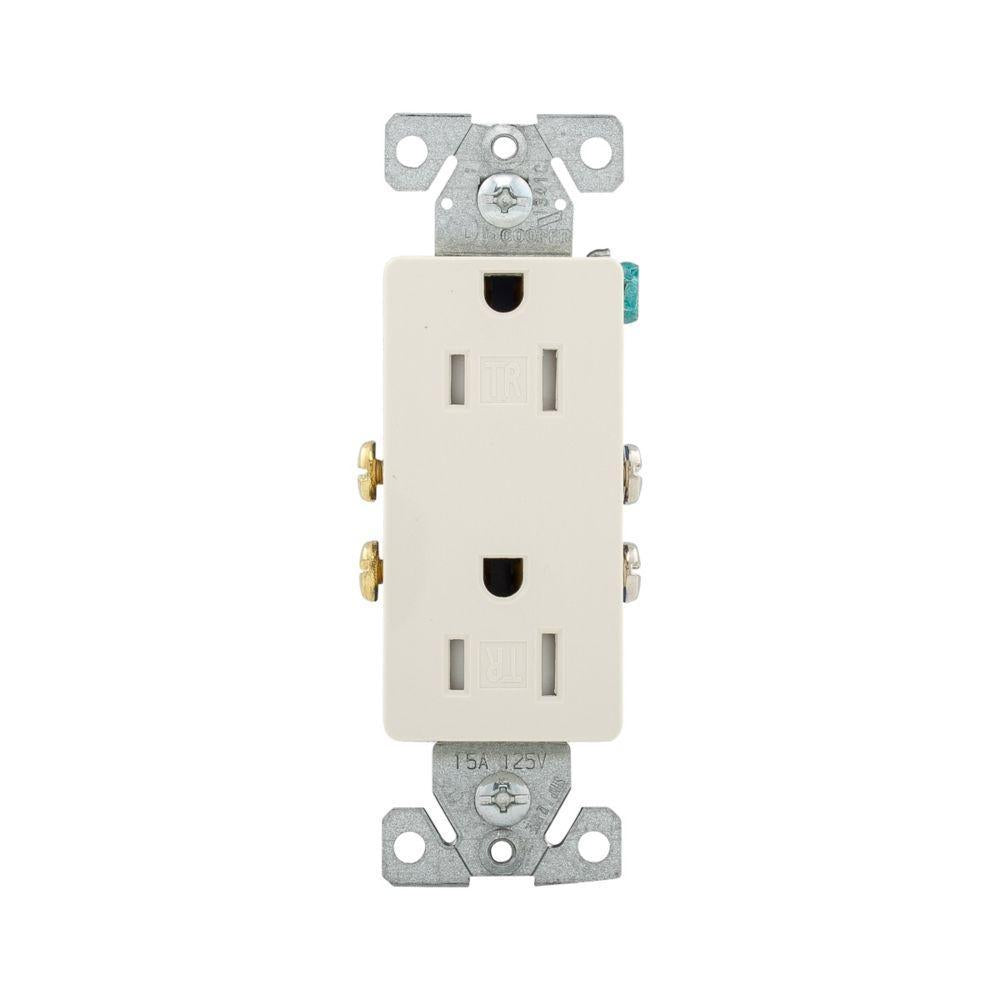

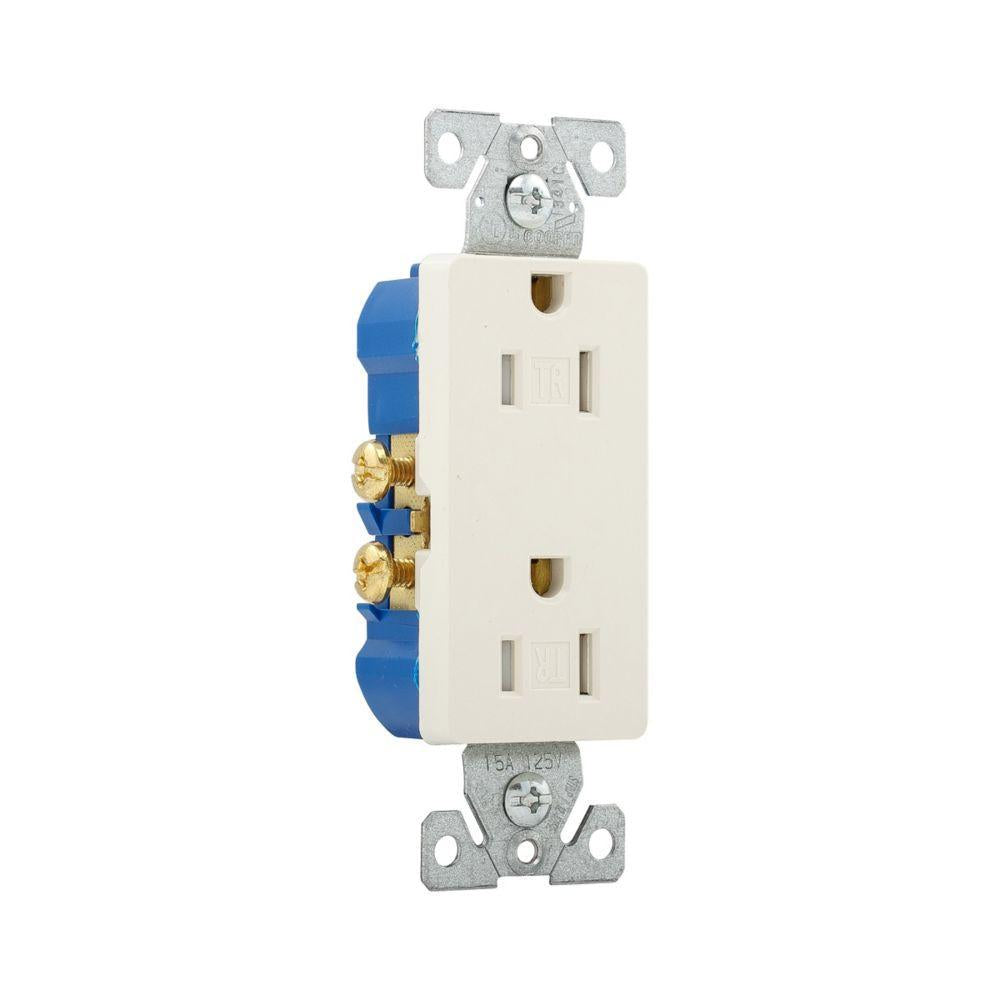

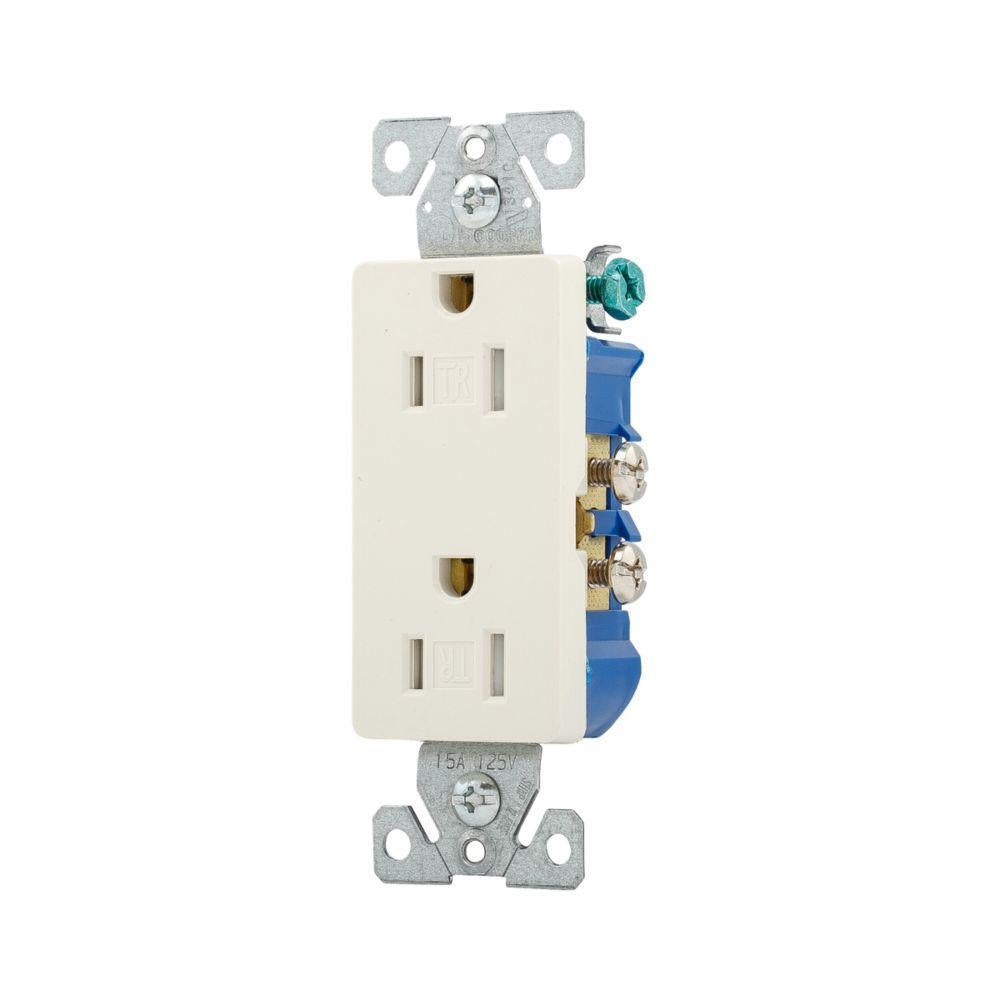

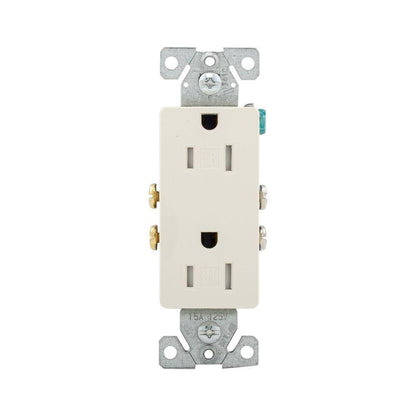

Blade Tamper Resistant Grounding Receptacle - Thermoplastic

Blade Tamper Resistant Grounding Receptacle - Thermoplastic

TR1107LA

$2.46
$2.46 $1.72
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Longer, wider bridged strap provides 40% more contact area with wallboard, virtually eliminating floating installations
• Patented built-in wire looper for pre-looping
• Double wipe ground contacts ensure long term ground retention
• Easy access split circuit break off tab
• Tri combo screws accept slotted, Phillips® and Robertson head tools for installation flexibility
• Flush mounting
• 14 to 10 AWG wire

DIMENSIONS

HEIGHT

4.19 in

WEIGHT

0.13 lb

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

Eaton’s straight blade receptacles cover the full range of residential, hospital, industrial, construction, and commercial grades to meet any application. Choose from decorator or traditional styles, multiple colors, tamper resistant solutions and weather resistant products for exterior installations. Eaton also offers special solutions for complex environments including corrosion-resistant, severe-duty insulated and watertight products.

SPECIFICATIONS

Amperage Rating

15 A

Dimensions

4.193 in H x 1.015 in D

Grade

Standard

Material

Thermoplastic

NEMA Rating

NEMA 5-15R

Number of Poles

2

Number of Wires

3

Temperature Rating

-4 to 158 deg F

Terminal Type

Screw

Type

Duplex Decorator Straight Blade Tamper Resistant

Voltage Rating

125 V AC
