APRILAIRE

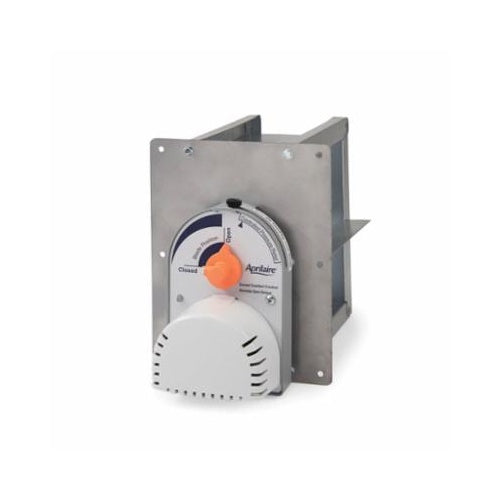

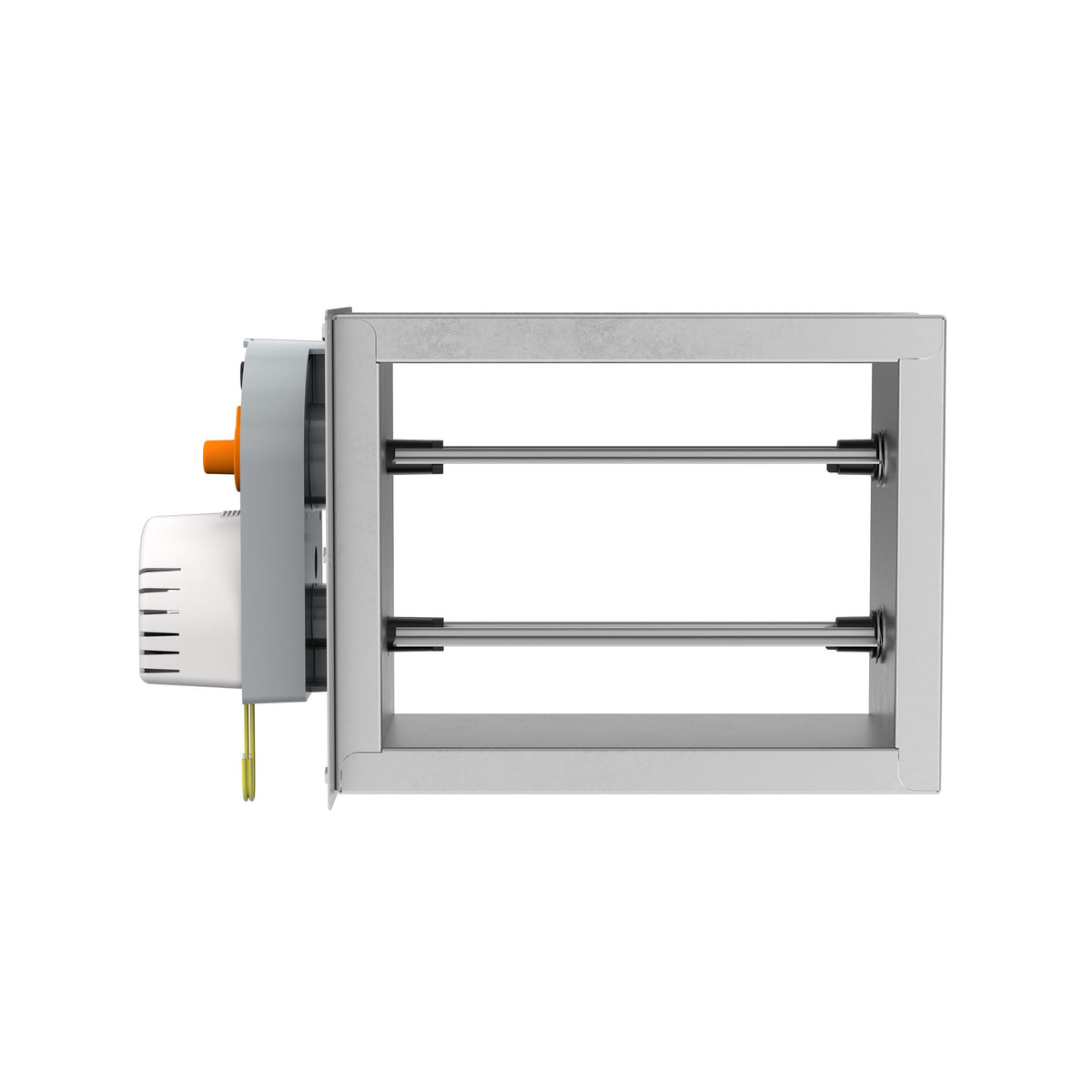

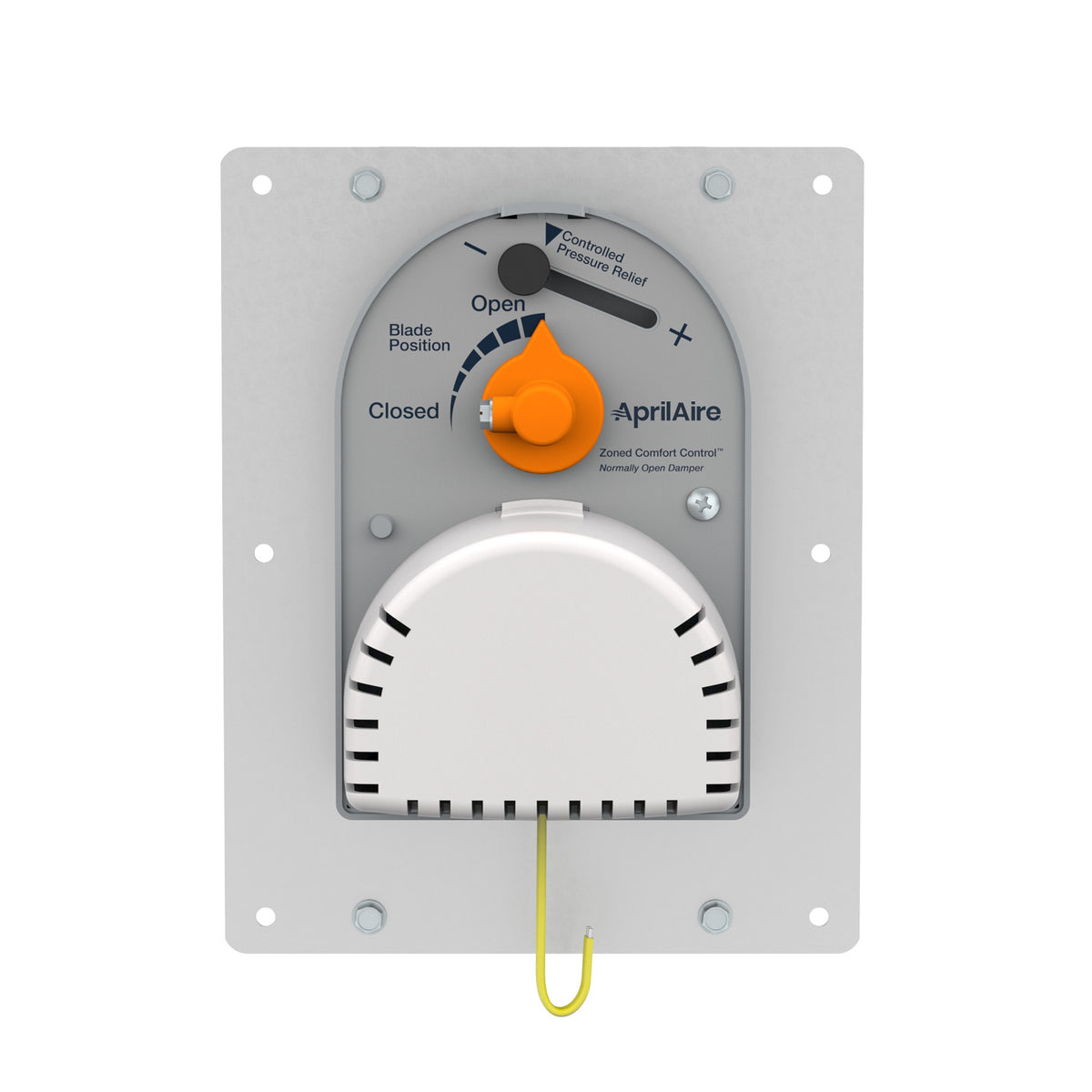

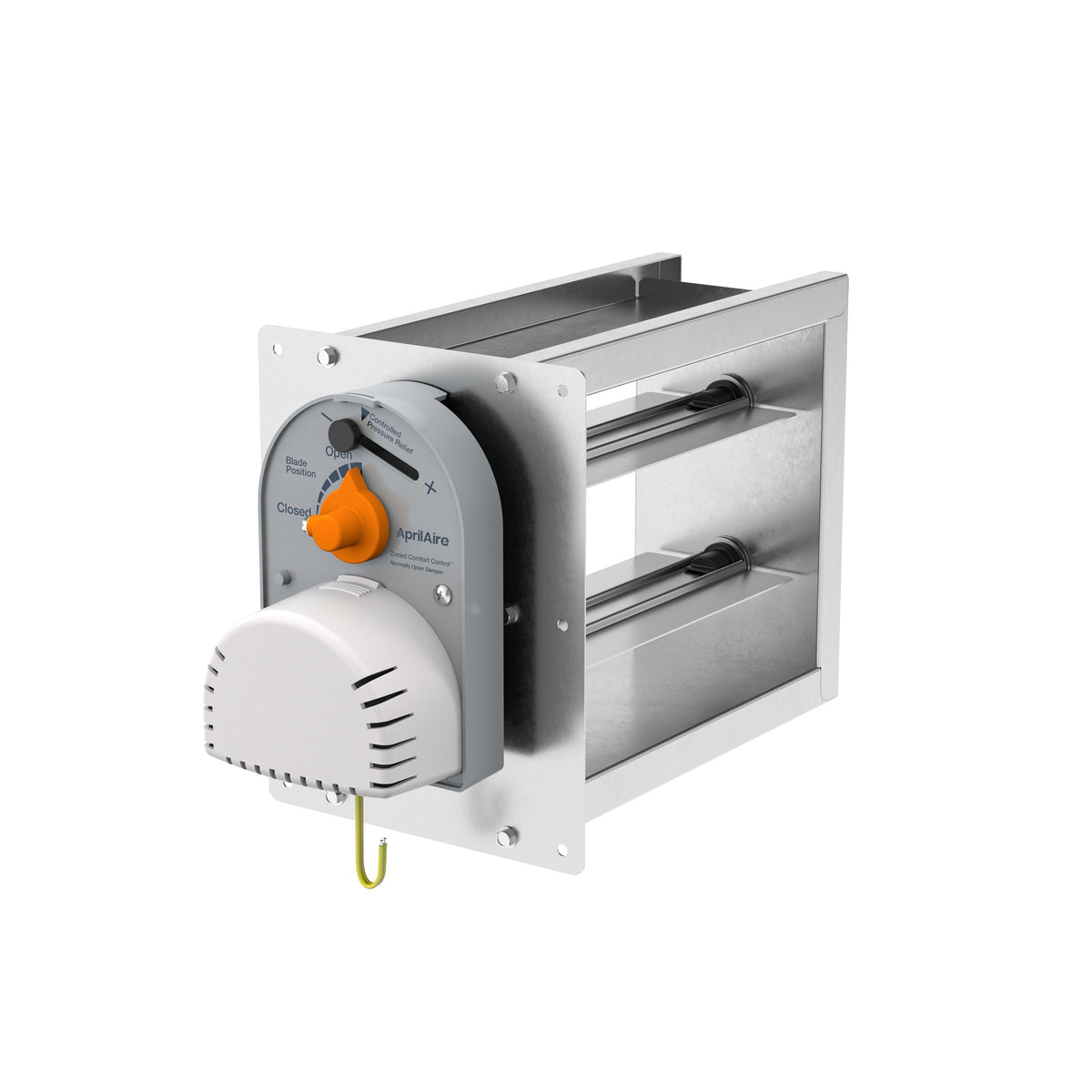

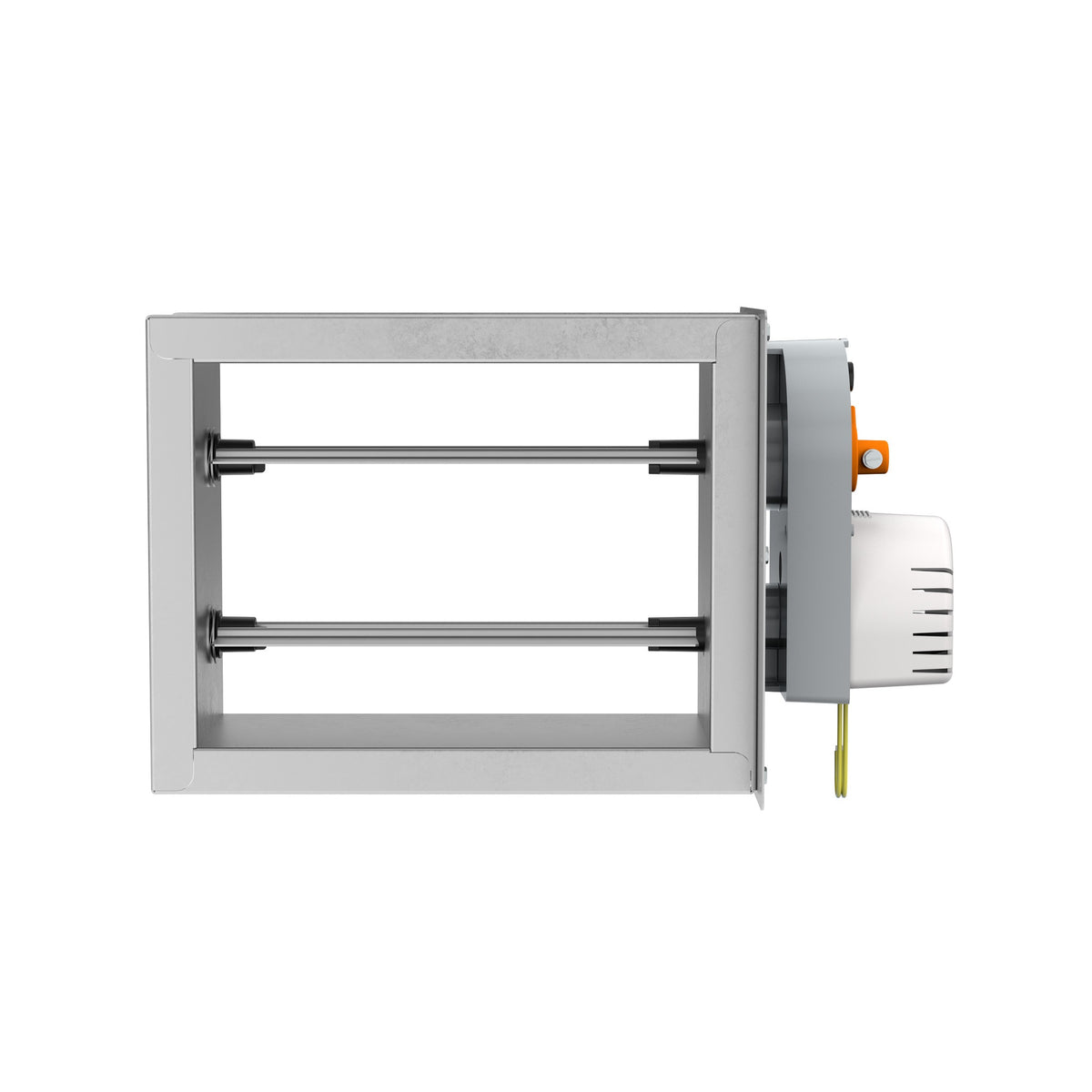

Bottom Mount Comfort Rectangular Damper - 8" H x 20" W

Bottom Mount Comfort Rectangular Damper - 8" H x 20" W

AA6817

$214.44
$214.44 $365.65
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Power-closed/spring-open operation
• Adjustable stop
• Installs in 4-1/4 in slot in duct
• Impedance protected for continuous stall
• Compatible with Aprilaire® zoned comfort control system
• Dampers are designed to work in low pressure systems (less than 1 in wc)
• Impedance protected for continuous stall capability without electrical or mechanical damage
• Damper comes with motor mounted

DIMENSIONS

WEIGHT

7.8 lb

WARRANTY

5 Years

DOCUMENTS & RESOURCES

Specification Sheet
Installation Instructions
User Manual
Product Brochure

PRODUCT OVERVIEW

Aprilaire® offers all the rectangular sizes you need for residential and light commercial applications. Residential sizes feature the exclusive Flexible Link™ design while the larger, light commercial sizes (shaded blue in the table) utilize actuators matched to the needed torque requirements from a well-respected commercial actuator supplier.

SPECIFICATIONS

Electrical Connections

2-Wire

Material

Steel

Motor Type

Synchronous

Shape

Rectangle

Size

8 in H x 20 in W

Type

Bottom Mount Comfort

Voltage Rating

24 V AC
