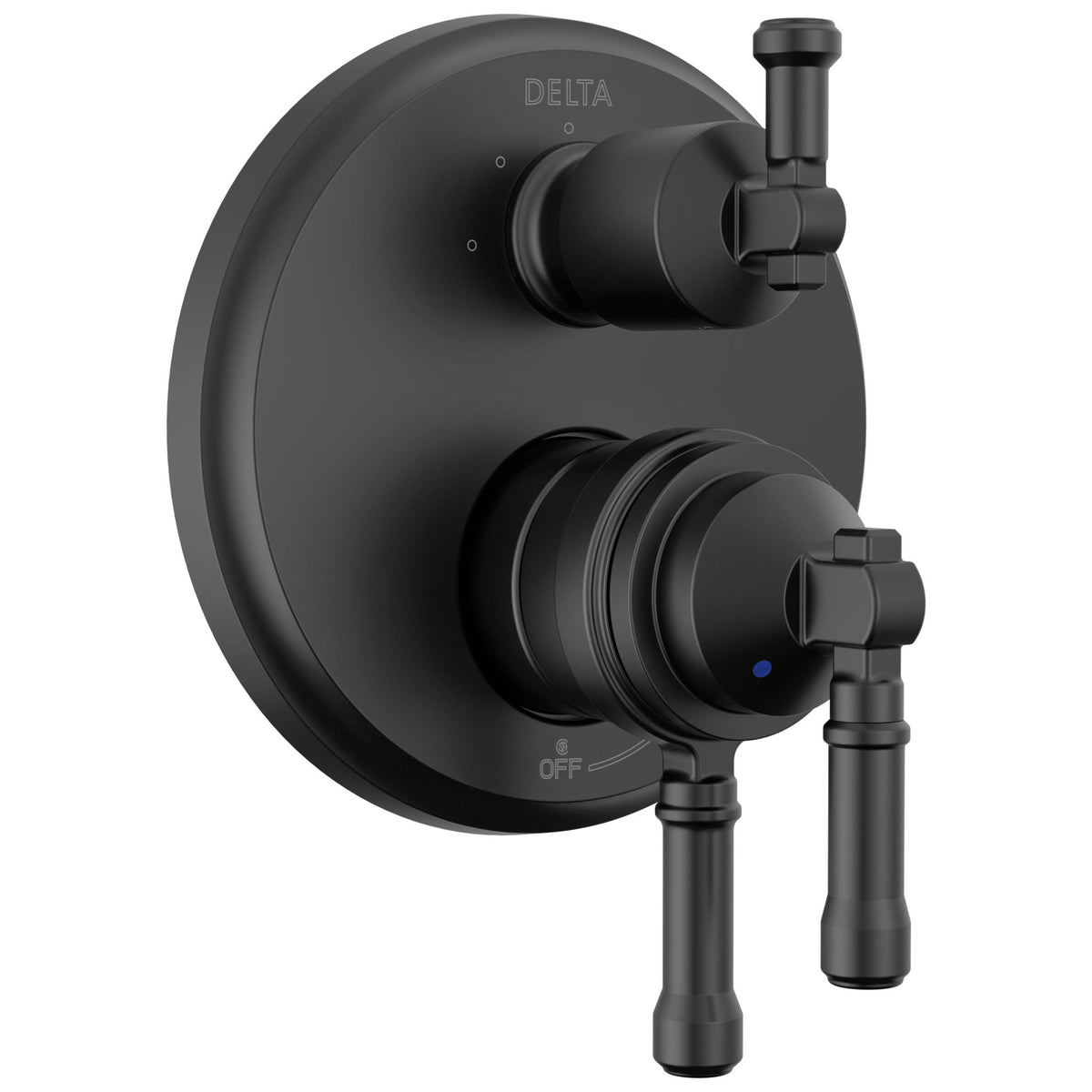

Broderick - 17 Series 3-Setting Diverter Trim - Wall Mount
Broderick - 17 Series 3-Setting Diverter Trim - Wall Mount
T27884-BL
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Monitor pressure balance valve keeps water temperature within a safe 3.6 F (1.7 C), helping to protect you from sudden changes in hot or cold water pressure
• MultiChoice Integrated Shower Diverter provides a sleek, streamlined style for your shower while eliminating the need for an additional diverter valve
• 3-function diverter offers 2 individual positions and 1 shared position
• Two bottom handles provide separate control for on/off/volume and temperature
• Trim kit only, must order MultiChoice Universal integrated shower diverter rough (R22000 series) separately to complete the unit
DIMENSIONS
DIMENSIONS
|
LENGTH |
4.63 in |
|---|---|
|
WIDTH |
6.75 in |
|
HEIGHT |
8.38 in |
|
WEIGHT |
4.11 lb |
WARRANTY
WARRANTY
Limited Lifetime
PRODUCT OVERVIEW
The Broderick® Bath Collection is inspired by exposed hardware and the depth of heritage found in traditional design. Styled after the rugged nuts and bolts of machinery, it serves as a true centerpiece in the bathroom. Delta® showers with Monitor® pressure-balance valves are engineered to make sure you don’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. By integrating separate controls on one trim with the MultiChoice® Integrated Shower Diverter, we’ve streamlined installation and your shower style. With separate volume and temperature control on this model, simply set the water at your preferred temperature and turn the shower on or off with the volume control handle—without interrupting your set temperature. You can install with confidence, knowing that Delta® faucets are backed by our Lifetime Limited Warranty.
SPECIFICATIONS
|
Collection |
Broderick® |
|---|---|
|
Dimensions |
8.38 in H x 6.75 in W x 4.63 in L |
|
Handle Type |
Single Lever |
|
Material |
Zinc |
|
Mounting Type |
Wall |
|
Number of Handles |
1 |
|
Number of Spray Functions |
3 |
|
Pressure Rating |
60 psi |
|
Series |
17 Series |
|
Suitable For Use With |
Multichoice® Universal Rough Valve Body (R10000 Series) |
|
Type |
3-Setting |
|
Valve Flow Rate |
5.8 gpm |
|
Valve/Cartridge Type |
Pressure Balanced Valve/Dual Function Pressure Balanced Cartridge |

$570.09
