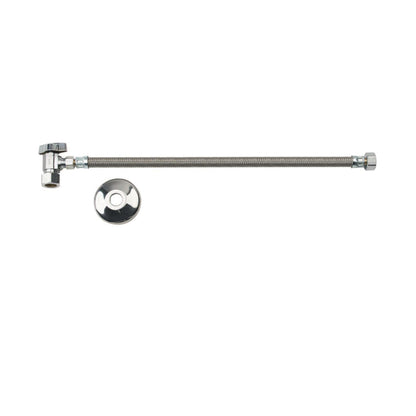

C Water Supply Kit - 16" - Brass/Copper
C Water Supply Kit - 16" - Brass/Copper
KTCR19B16AX C
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Braided polymer tube, brass valve, stainless steel flange
• Valve compatible with copper and PEX pipe (PEX installs require a stainless steel tube insert)
• Smooth, 1/4-turn operation, on/off flow control with a 90 deg turn of the handle
• Speedi Plumb® PLUS braided connector bends freely without kinking or crimping, installation is easier, especially in cramped quarters, external corrosion resistance to most common household, tile and glass cleaners
• Tough PVC inner hose resists attack by chlorine, chloramines and other corrosive elements
• Brass ball ensures smooth operation without freeze-ups even after long periods without use
• Designed, machined and assembled in the USA
DIMENSIONS
DIMENSIONS
|
LENGTH |
16 in |
|---|---|
|
WEIGHT |
0.47 lb |
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW

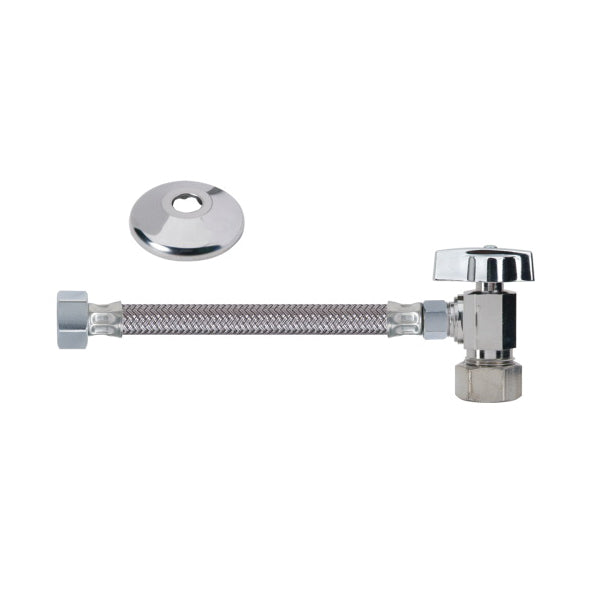

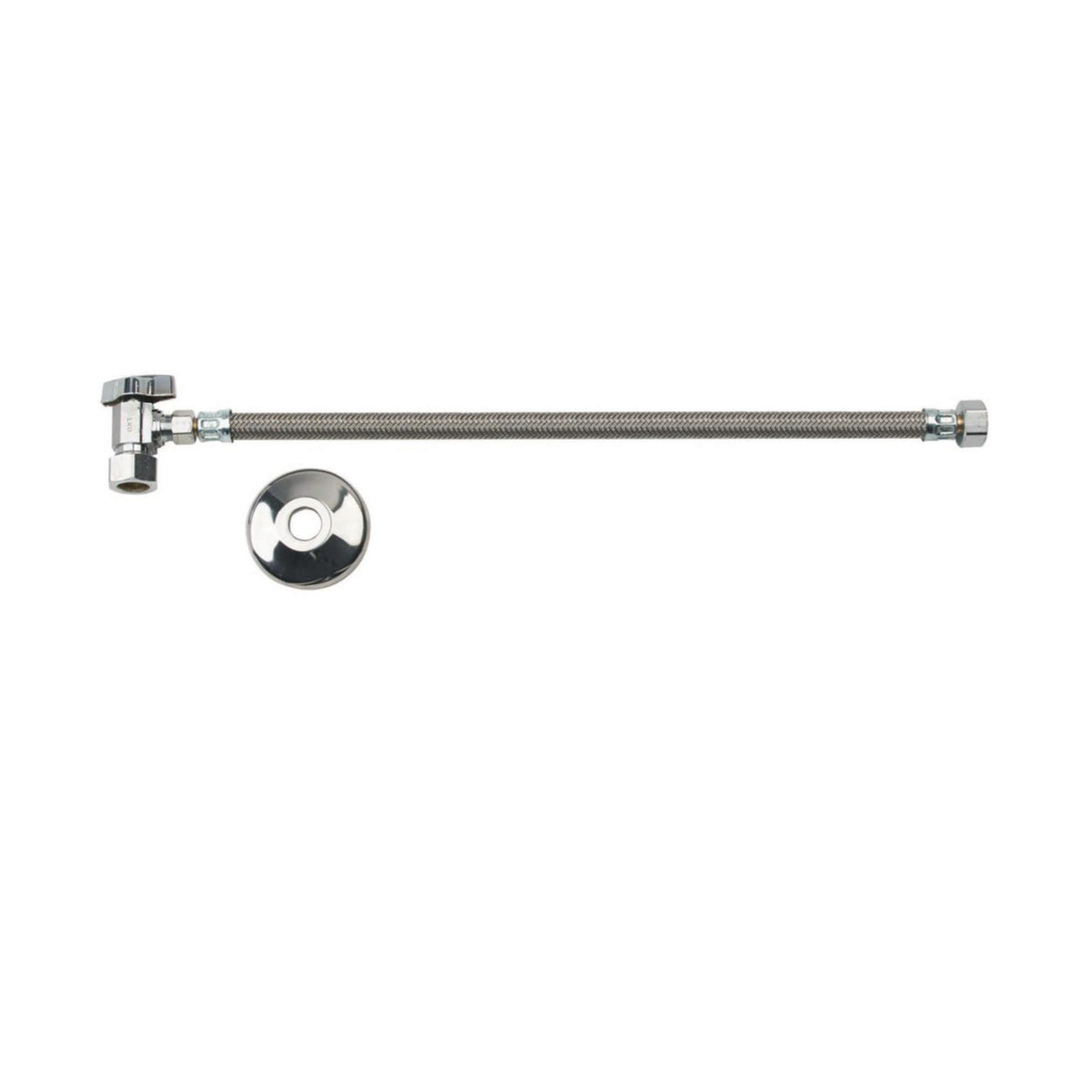

BrassCraft® Faucet 1/4-Turn Ball Supply Kit includes everything that you need to install the hot or cold water to your faucet. Components include - (1) 1/2 in Nominal Compression inlet x 3/8 in OD Compression outlet 1/4-turn ball angle valve, (1) Speedi Plumb® PLUS 3/8 in OD Compression inlet x 1/2 in FNPT outlet braided water connector and (1) shallow flange. The water shut-off valve has an angle body which is most often used to connect to a water pipe that enters the room from the wall. The valve features BrassCraft®'s KT 1/4-turn ball technology which means with a 90 degree turn of the valve handle, you are able control the flow of water to your plumbing fixture. This 1/4-turn operation allows you to maintain, repair or replace your fixture without shutting off the water to the entire home. The flexible braided polymer connector features a high tenacity, multi-filament yarn, protected by a special polymer coating for optimum corrosion resistance and durability. The braided polymer fibers are also designed to bend freely without kinking or crimping. This connector features BrassCraft®'s tough PVC inner hose to resist attack by chlorine, chloramines and other corrosive elements.
SPECIFICATIONS
|
Domestic/Import |
Domestic |
|---|---|
|
Material |
Brass/Copper |
|
Specifications |
125 psi, 40 to 140 deg F |

$98.09
