LEVITON

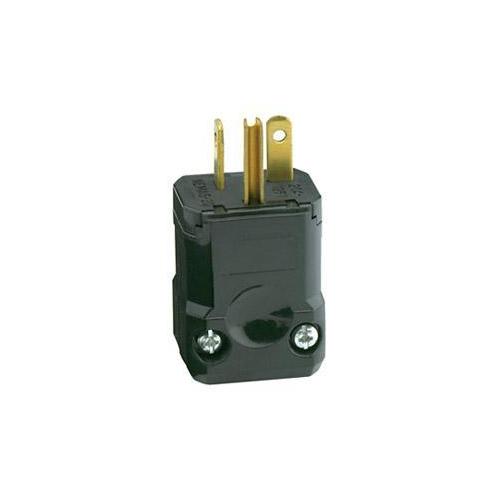

Cable Mount Grounding Straight Blade Plug - 1.81" H - Nylon

Cable Mount Grounding Straight Blade Plug - 1.81" H - Nylon

5356-VB

$15.29
$15.29 $1,070.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Hinged design for fast, easy, installation and assembly
• Super tough high impact nylon body
• Triple drive standard screws for easy wiring
• Clear thermoplastic back cover for easy visual inspection of wiring
• Zinc plated steel assembly screws and solid brass blade and contacts
• 18 to 10 AWG terminal accommodation
• Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws
• Features hinged design for fast, easy, installation and assembly
• 8 to 10 AWG terminal accommodation

DIMENSIONS

HEIGHT

1.81 in

WEIGHT

0.14 lb

WARRANTY

Lifetime

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

When it comes to the demanding nature of todays commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton® Python® straight blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python® exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in todays faced paced world where lost minutes on a job can translate into lost profits.

SPECIFICATIONS

Amperage Rating

20 A

Cord Diameter

0.25 to 0.655 in

Dimensions

1.81 in H

Grade

Industrial

Material

Nylon

NEMA Rating

NEMA 5-20P

Number of Poles

2

Number of Wires

3

Temperature Rating

-40 to 60 deg C

Type

Cable Mount Grounding

Voltage Rating

125 V AC
