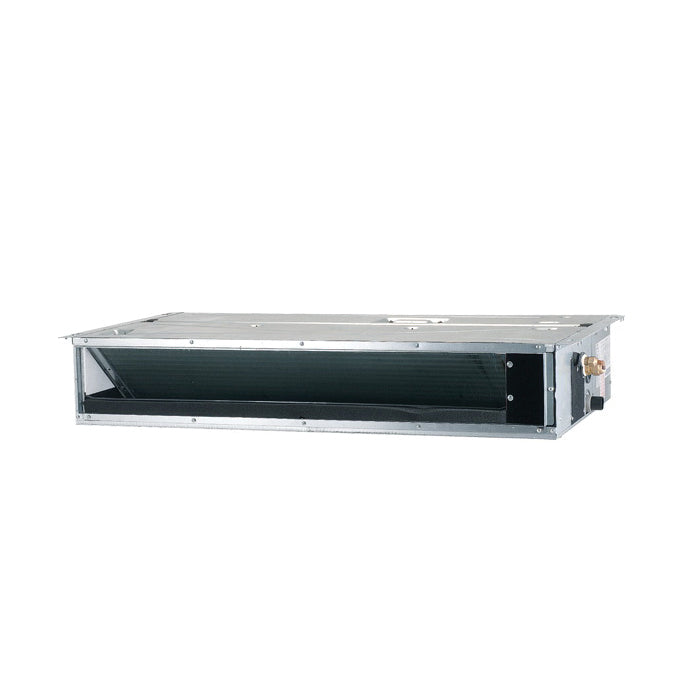

Cac Slim Duct Split System Air Conditioner - 1271 CFM
Cac Slim Duct Split System Air Conditioner - 1271 CFM
AC009KNLDCH/AA
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• The digital inverter feature gives powerful and quick cooling and heating with minimal electricity consumption
• Control via WiFi-as long as your smartphone is connected to the internet, you can control your slim duct system from virtually anywhere
• Horizontal discharge airflow
• The indoor unit shall have a built-in condensate pump as standard with a 29 in lift (from bottom of unit)
• Low ambient control built-in
• The outdoor unit shall supply power to indoor unit via 14 AWG X 3 power wire
• Auto-restart after power loss
• The outdoor unit shall have a snow accumulation prevention option setting to prevent snow drifting against an idle outdoor unit
• The indoor and outdoor units shall have a removable EEPROM that stores system programming information, unit name, and other data
• All indoor unit option settings shall be done digitally, the indoor unit does not contain rotary dials or setting switches
DIMENSIONS
DIMENSIONS
|
WIDTH |
27.56 in |
|---|---|
|
HEIGHT |
7.81 in |
WARRANTY
WARRANTY
10 Years Compressor and Parts, 1 Year Limited Labor
PRODUCT OVERVIEW
The CAC Slim Duct makes installation, maintenance and repair hassle-free. Its lightweight chassis also makes installation easier than ever.
SPECIFICATIONS
|
Control Type |
Electronic Expansion Valve |
|---|---|
|
Dimensions |
27-9/16 in W x 23-5/8 in D x 7-13/16 in H |
|
Discharge Line Size |
3/8 in |
|
EER Rating |
13.95 |
|
Flow Rate |
1271 cfm |
|
Heating Capacity |
14000 Btu/hr |
|
HSPF Rating |
10.5 |
|
Material |
Steel |
|
Maximum Piping Length |
65.6 ft |
|
Motor Type |
Brushless DC with Axial Fan |
|
Mounting Type |
Wall |
|
Nominal Capacity |
0.75 ton |
|
Power Source |
208/230 V AC, 1 ph, 60 Hz |
|
Refrigerant Type |
R-410A |
|
SEER Rating |
21 |
