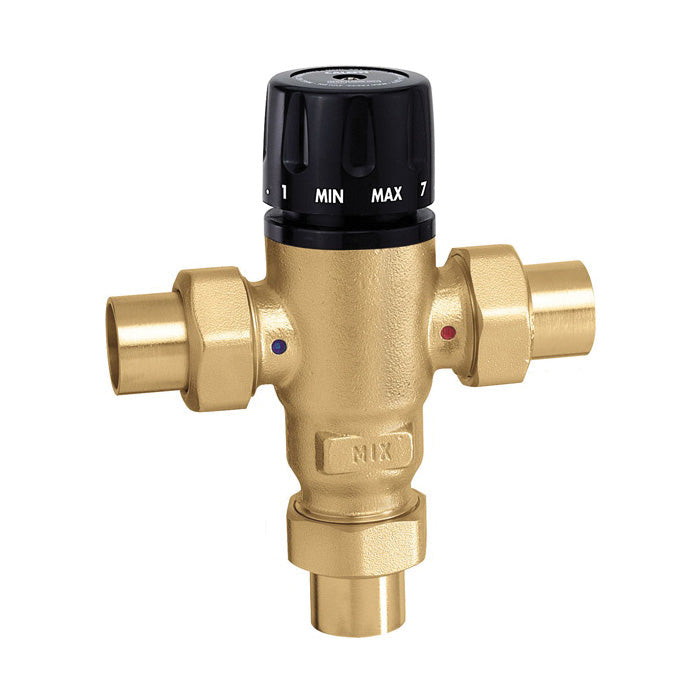

Caleffi MixCal™ 521509A Adjustable 3-Way Thermostatic and Pressure Balanced Mixing Valve, 3/4 in, C, 200 psi, 1.3 gpm, Brass Body

Caleffi MixCal™ 521509A Adjustable 3-Way Thermostatic and Pressure Balanced Mixing Valve, 3/4 in, C, 200 psi, 1.3 gpm, Brass Body

521509A

$260.03
$260.03 $254.00
Shipping calculated at checkout.
Loading availability...
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Low lead brass valve body
• Internal anti-scale materials
• Locking set point knob
• Max hot water inlet temperature: 200 deg F
• Reduction of lead in drinking water act: Compliant: 0.25% max weighted average lead content, certified by IAPMO R and T
• Suitable fluids: Water, glycol solution
• Tolerance: +/-3 deg F
• Max operating differential pressure: 75 psi (5 bar)

WARRANTY

Limited

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

The Caleffi MixCal™ three-way thermostatic mixing valve is used in systems producing domestic hot water or in hydronic and radiant heating systems. It maintains the desired output temperature of the mixed water supplied to the user at a constant set value compensating for both temperature and pressure fluctuations of incoming hot and cold water.
