GRUNDFOS

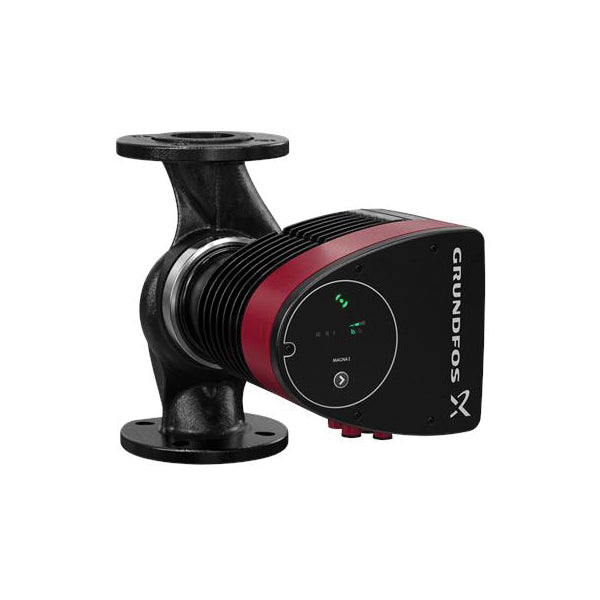

Canned Rotor Circulator Pump - 98126859

Canned Rotor Circulator Pump - 98126859

98126859

$5,800.68
$5,800.68 $8,587.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Proportional-pressure control
• Constant-pressure control
• Constant-curve/constant-speed duty
• No external motor protection required
• Insulating shells supplied with single-head pumps for heating systems
• Wide temperature range due to thermal separation of the control box and pump media
• Fault relay
• Digital input (start/stop)
• Wireless multi pump function with time based alternation
• Simple installation

DIMENSIONS

WIDTH

17.01 in

HEIGHT

17.72 in

WEIGHT

34.04 lb

DOCUMENTS & RESOURCES

Specification Sheet
User Manual
Product Brochure

PRODUCT OVERVIEW

MAGNA1 model C is a price competitive product designed for circulating liquids in heating systems where simple control and communication is desired. The pump is ideal for larger development projects and is the perfect replacement for UPS pumps in existing systems. By adjusting the duty point to the actual heat demand, the pump reduces energy costs.

SPECIFICATIONS

Amperage Rating

0.32 to 6.73 A

Bearing Type

Thrust

Dimensions

17.01 in W x 17.72 in H

Enclosure Type

IPX4D

Frequency Rating

60 Hz

Impeller Type

PES 30% GF

Maximum Head

39.37 ft

Maximum Pressure

175 psi

Phase

1

Power Rating

31 to 1523 W

Series

MAGNA1

Temperature Rating

140 deg F

Type

Canned Rotor

Voltage Rating

208 to 230 V AC
