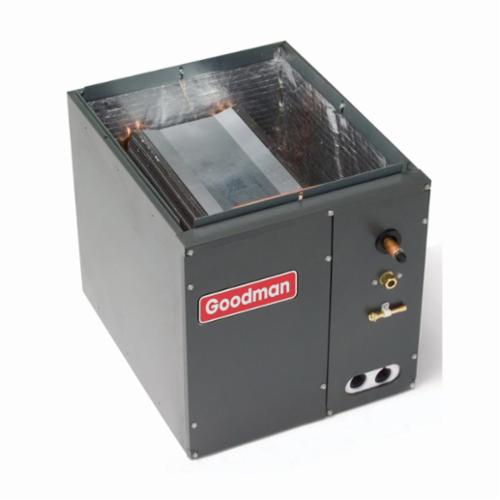

Capf - Indoor Evaporator Coil - 2.5 Ton - Cased Enclosure
Capf - Indoor Evaporator Coil - 2.5 Ton - Cased Enclosure
CAPF3030B6
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Aluminum tube and aluminum fin coil construction
• Grooved aluminum tubing
• Every unit is helium pressure tested during construction
• Every all aluminum coil is pressure tested and vacuum tested
• All-Aluminum evaporator coil
• Check flowrator for cooling and heat pump applications
• 21 in D for easier attic access
• Split seam front for easy access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
DIMENSIONS
DIMENSIONS
|
WIDTH |
17.5 in |
|---|---|
|
HEIGHT |
22 in |
|
WEIGHT |
43 lb |
PRODUCT OVERVIEW
A lot goes into every Goodman® brand air handler and blower motor Goodman Air Handlers with All-Aluminum evaporator coils simply work the way they're supposed to, making each one a thing of beauty. Goodman air handlers and coils have features designed to provide outstanding performance. We use advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend you'll love for many years. Our complete line of air handlers and coils are priced reasonably and affordably from your local independent dealer. And that's only the beginning. We want you to smile every time you open your utility bill, so we design into our units proven efficient technology.
SPECIFICATIONS
|
Air Flow Type |
Upflow/Downflow |
|---|---|
|
Dimensions |
17-1/2 in W x 21 in D x 22 in H |
|
Enclosure Type |
Cased |
|
Liquid Line Size |
3/8 in |
|
Nominal Capacity |
2.5 ton |
|
Refrigerant Type |
R-22/R-410A |
|
Series |
CAPF |
|
Suction Line Size |
3/4 in |
|
Tubing Material |
Aluminum |

$696.10
