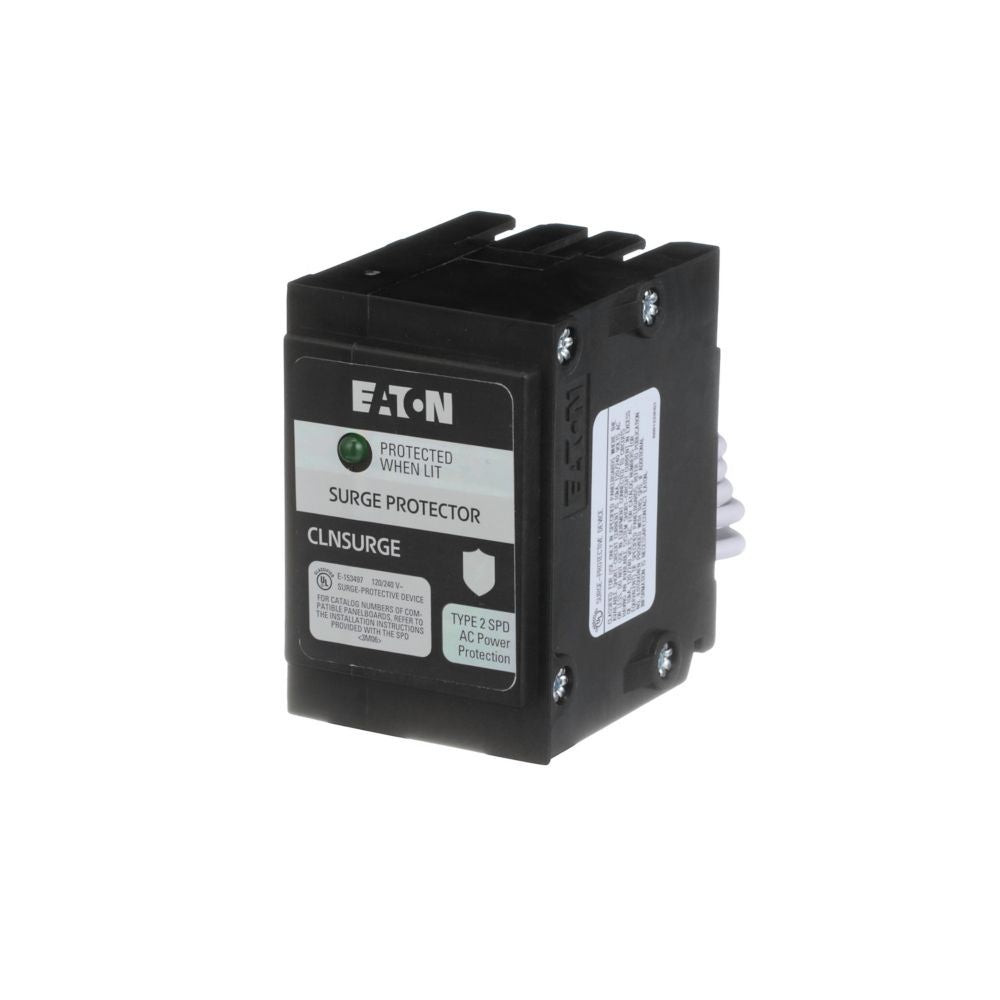

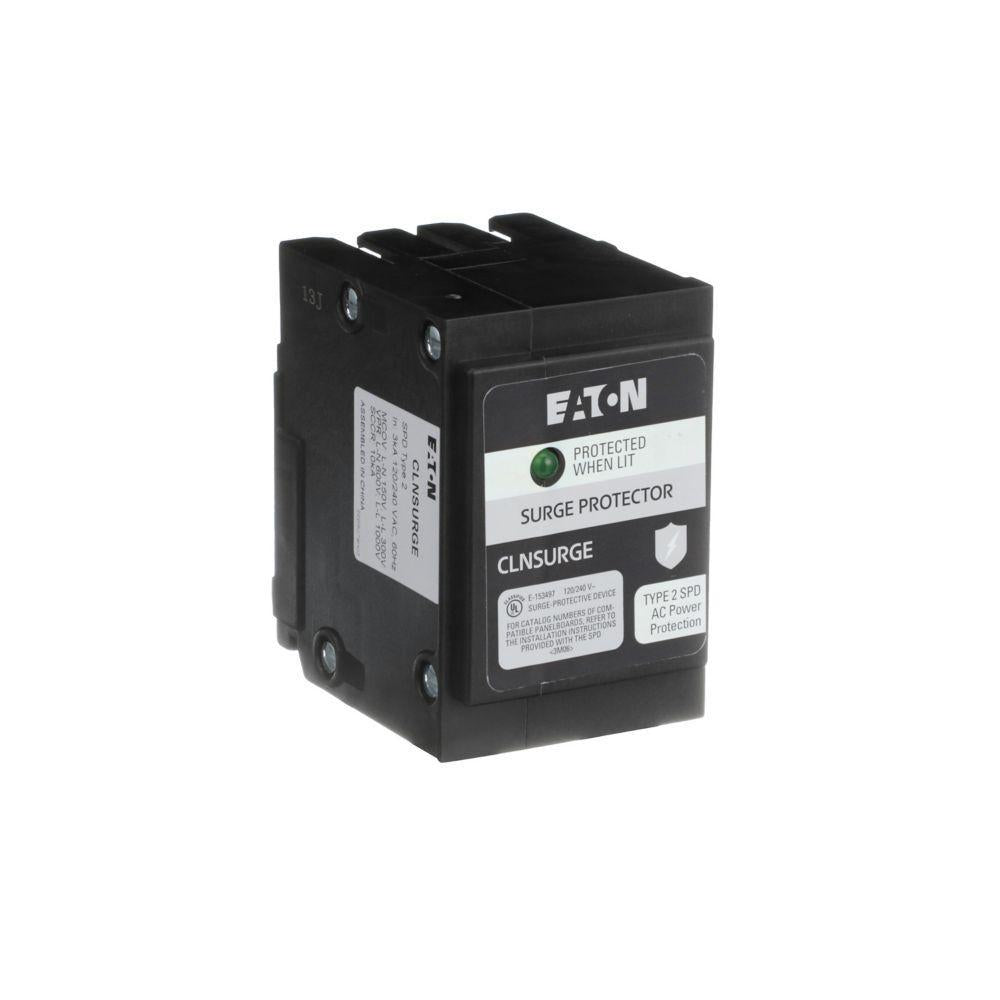

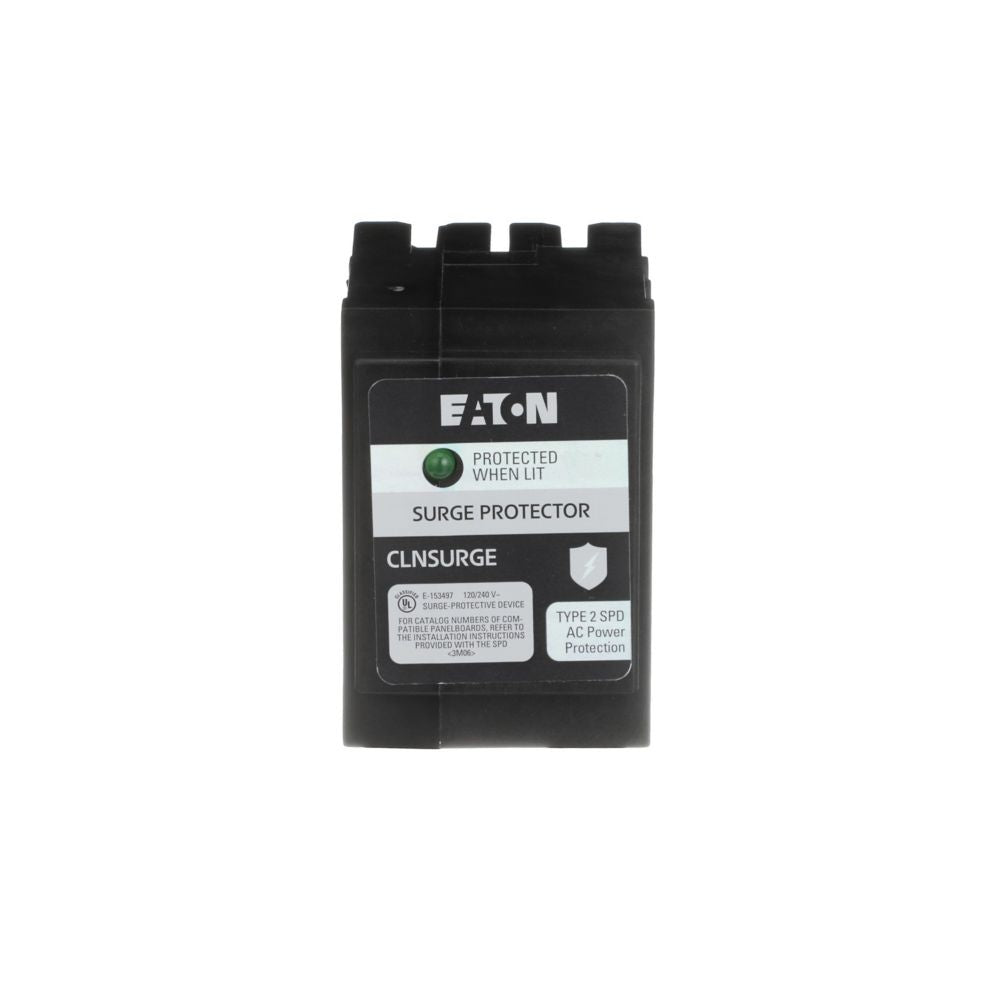

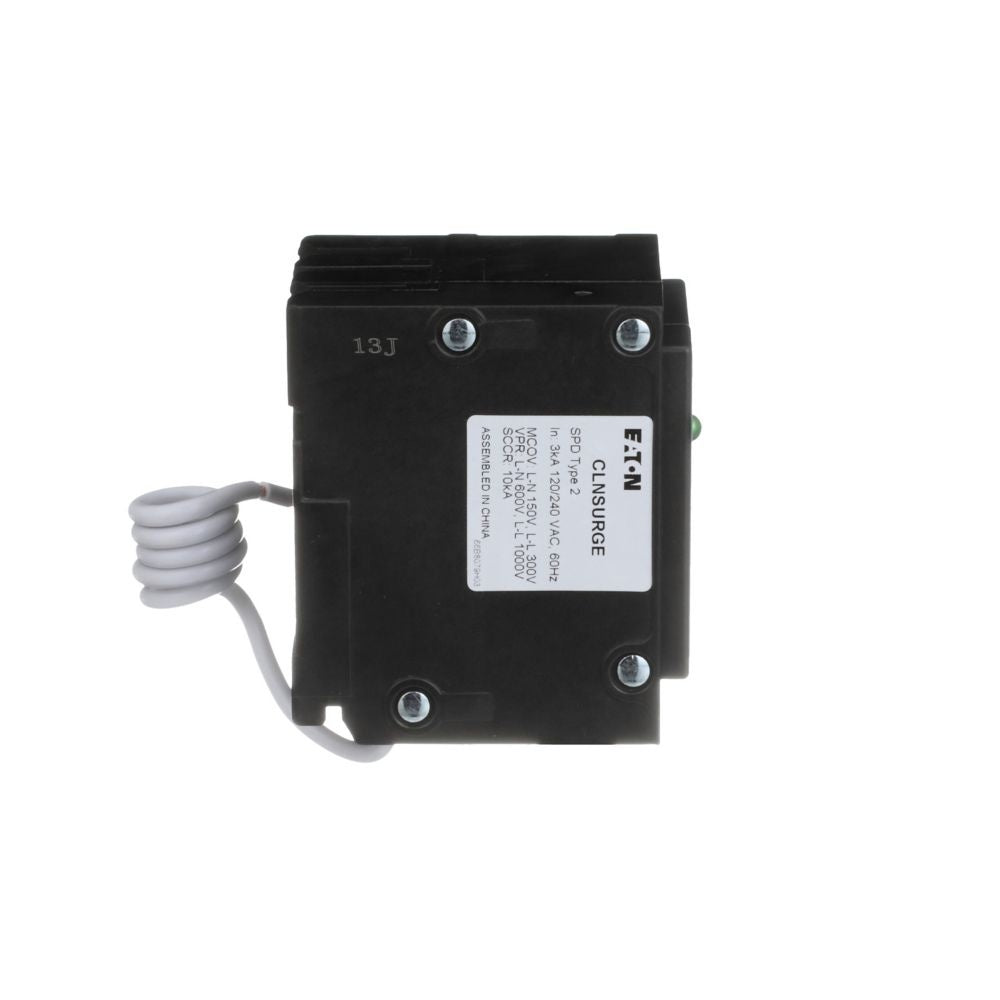

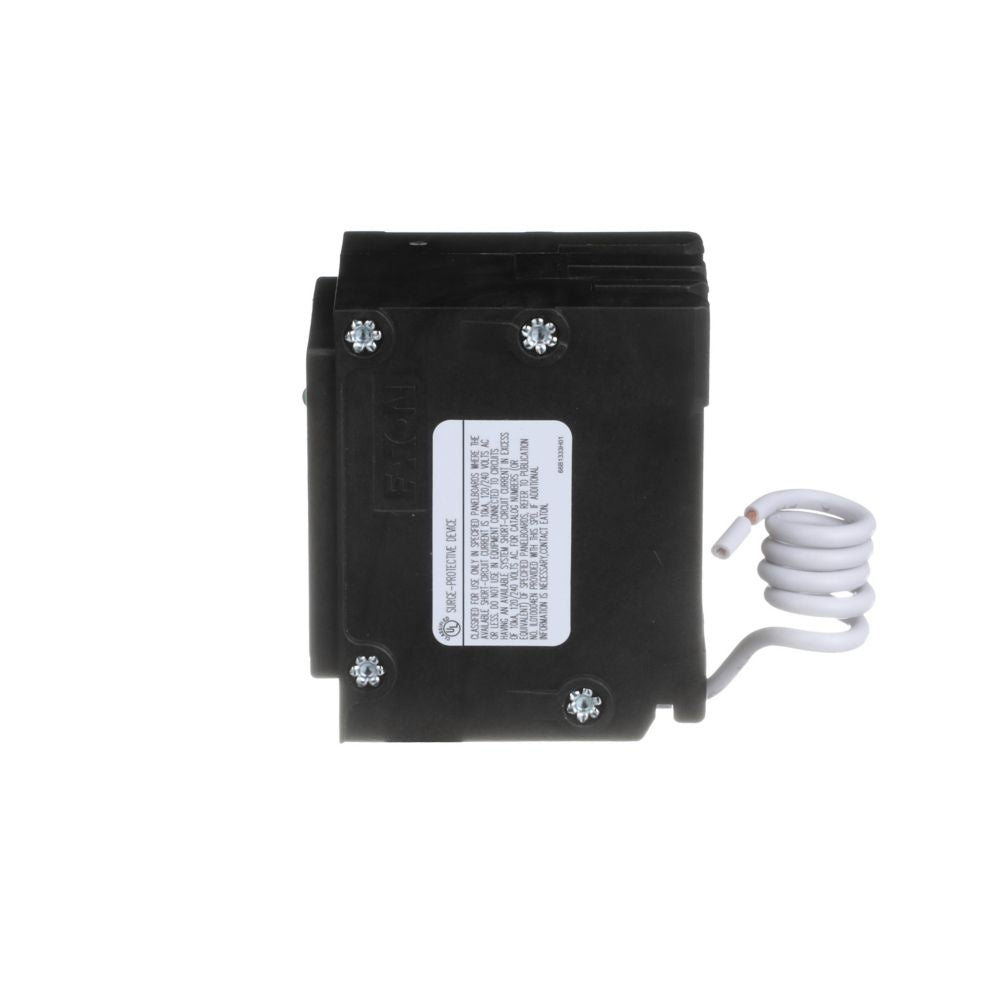

Circuit Breaker Surge Protective Device - CLNSURGE
Circuit Breaker Surge Protective Device - CLNSURGE
CLNSURGE
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
DIMENSIONS
DIMENSIONS
|
LENGTH |
3.07 in |
|---|---|
|
WIDTH |
1.98 in |
|
HEIGHT |
2.98 in |
|
WEIGHT |
1 lb |
WARRANTY
WARRANTY
Limited Lifetime
PRODUCT OVERVIEW
Eaton offers a comprehensive family of surge products for use at service entrances. These products can help protect sensitive electronics against the damaging effects of surges. Due to the evolution of electronics and microprocessors in the home, there is a continuous challenge to provide quality (clean) power for electronic loads such as appliances, computers/home office and entertainment systems. Surges caused by lightning, utility grid switching and other sources travel on current carrying conductors throughout the home, which can affect and destroy sensitive electronic loads.
SPECIFICATIONS
|
Dimensions |
2.981 in H x 1.98 in W x 3.071 in L |
|---|---|
|
Environmental Conditions |
-40 to 122 deg F Operating Temperature |
|
Frequency Rating |
50 to 60 Hz |
|
Nominal Discharge Current |
3 kA |
|
Number of Poles |
2 |
|
Peak Surge Current |
18 kA |
|
Phase |
Single Split-Phase |
|
Short Circuit Current Rating |
10 kA |
|
Type |
Circuit breaker surge protective device |

$123.57
