FIELDPIECE

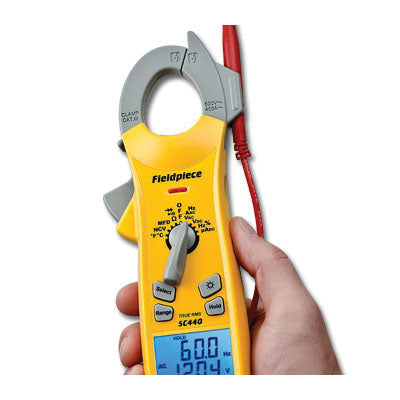

Clamp Meter - 500 Ohm to 50 Mohm

Clamp Meter - 500 Ohm to 50 Mohm

SC440

$236.44
$236.44 $167.69
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Designed specifically for HVACR field service, the SC440 is a digital multimeter that offers specific features and benefits to HVACR field service pros including - Volts AC/DC, true RMS, inrush current, duty cycle %, 400 amps AC, magnetic strap, dual display, temperature F/C, capacitance, microamps DC, frequency via leads and clamp, non-contact voltage, 50 mega ohm with 0.1 resolution, continuity, diode test, hold, clamp probe holder, LCD backlight, low battery indicator, Hi-voltage warning
• Sturdy magnetic strap
• True RMS
• Inrush current
• Test-lead holder
• 60 second duration with auto-off blue color backlight
• Approx 30 minutes auto power off
• 100 hr typical alkaline battery life
• Battery icon blinks and "LO.bt" is displayed when the battery voltage drops below the operating level
• Up to 6562 ft altitude

DIMENSIONS

WIDTH

79 mm

HEIGHT

233 mm

WEIGHT

0.69 lb

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

The mid-size essential clamp meter has virtually every parameter for electrical and thermal HVACR testing in one meter. This auto and manual ranger includes a host of safety features including a high-voltage LED and beeper, a continuity warning, push button non-contact voltage (NCV), a lead holder with detachable leads, and alligator probe tips for easy one-handed testing. As far as ranges go, it has temperature, capacitance, microamps DC for flame diode tests, and everyday electrical ranges for HVACR. Not to mention it is one of the most durable meters in the industry.

SPECIFICATIONS

AC Current Accuracy

+/-2 %

Counts

5000

Dimensions

233 mm H x 79 mm W x 45 mm D

Display Type

Dual Backlit

Frequency Rating

500 Hz to 1 MHz

Jaw Capacity

1.2 in

Operating Temperature

32 to 122 deg F

Power Source

9V Alkaline Battery

Resistance

500 Ohm to 50 MOhm

Safety Rating

CATIII 600V, Class II and Pollution Degree 2

Voltage Accuracy

+/-1.2% V AC, +/-0.5% V DC
