SQUARE D

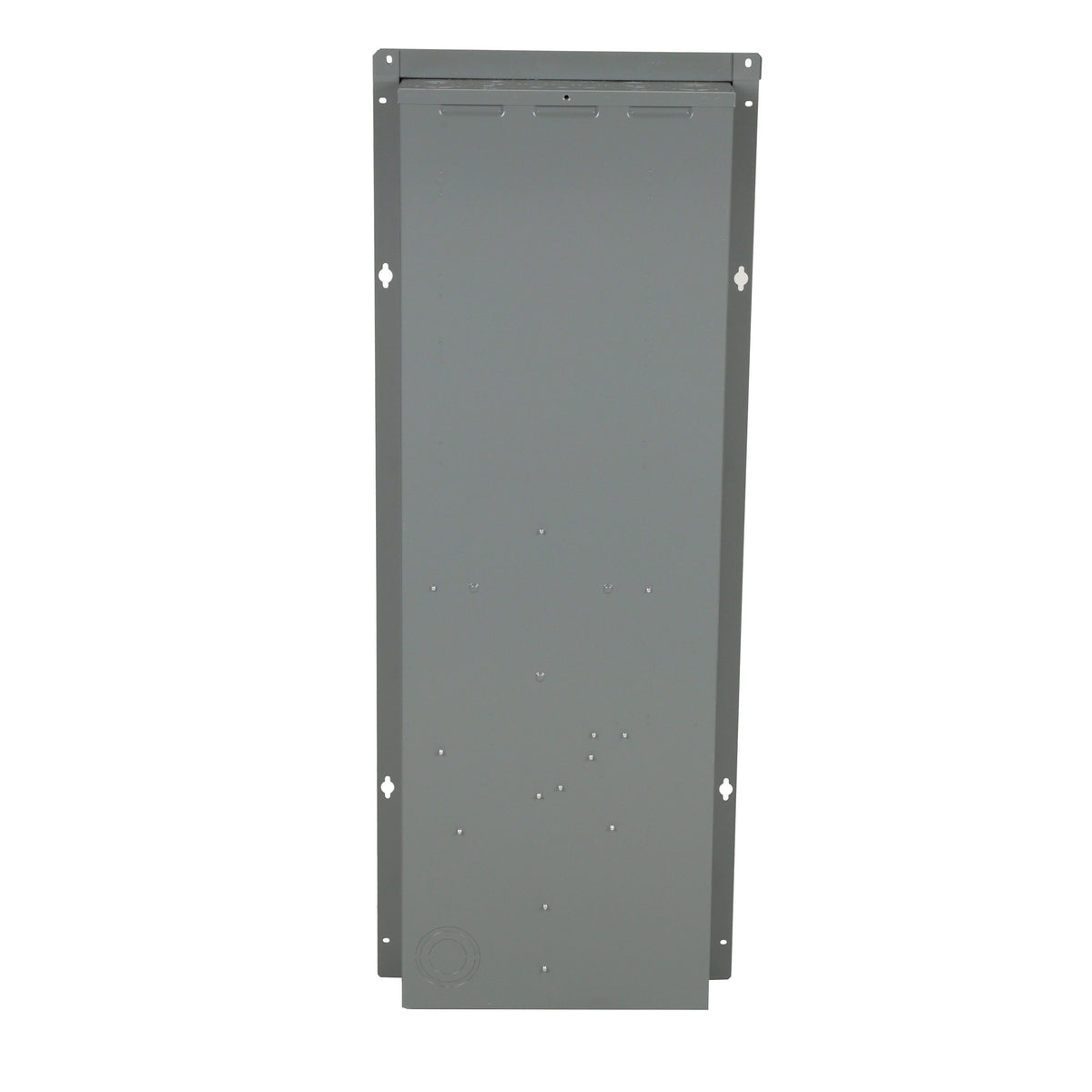

Combination Service Entrance Meter Main - Flush

Combination Service Entrance Meter Main - Flush

SC3042M200PF

$336.19
$336.19 $0.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Compatible with Homeline plug-in mount breakers
• This single compact solution provides a time and space saving solution for contractors and installers
• Suitable for use as service entrance equipment
• CSED allows for the meter socket to integrate with the load center into one compact design
• Accommodates plug-on secondary surge arrester and features a plug-in deisgn for easy installation

DIMENSIONS

WIDTH

14.85 in

HEIGHT

38.4 in

WEIGHT

59.57 lb

DOCUMENTS & RESOURCES

Specification Sheet
Installation Instructions

PRODUCT OVERVIEW

The Square D® Homeline® Load Centers and Homeline®Solar Ready PoN CSEDs, SC3042M200PF, provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2. Suitable for OH service with addition of tunnel kit (SCTKP20).

SPECIFICATIONS

Amperage Rating

200 A

Cover Type

Ring

Dimensions

14.85 in W x 3.4 in D x 38.4 in H

Enclosure Type

NEMA 3R

Feed Type

Overhead/Underground

Hub Size

A-L

Mounting Type

Flush

Number of Jaws

4

Phase

1

Terminal Type

Line/Lug

Type

30-Space 42-Circuit All-In-One Field Installed Rainproof

Voltage Rating

120/240 V AC

Wire Size

12 to 2/0 AWG, 4 AWG to 250 kcmil, 14 to 2/0 AWG
