SQUARE D

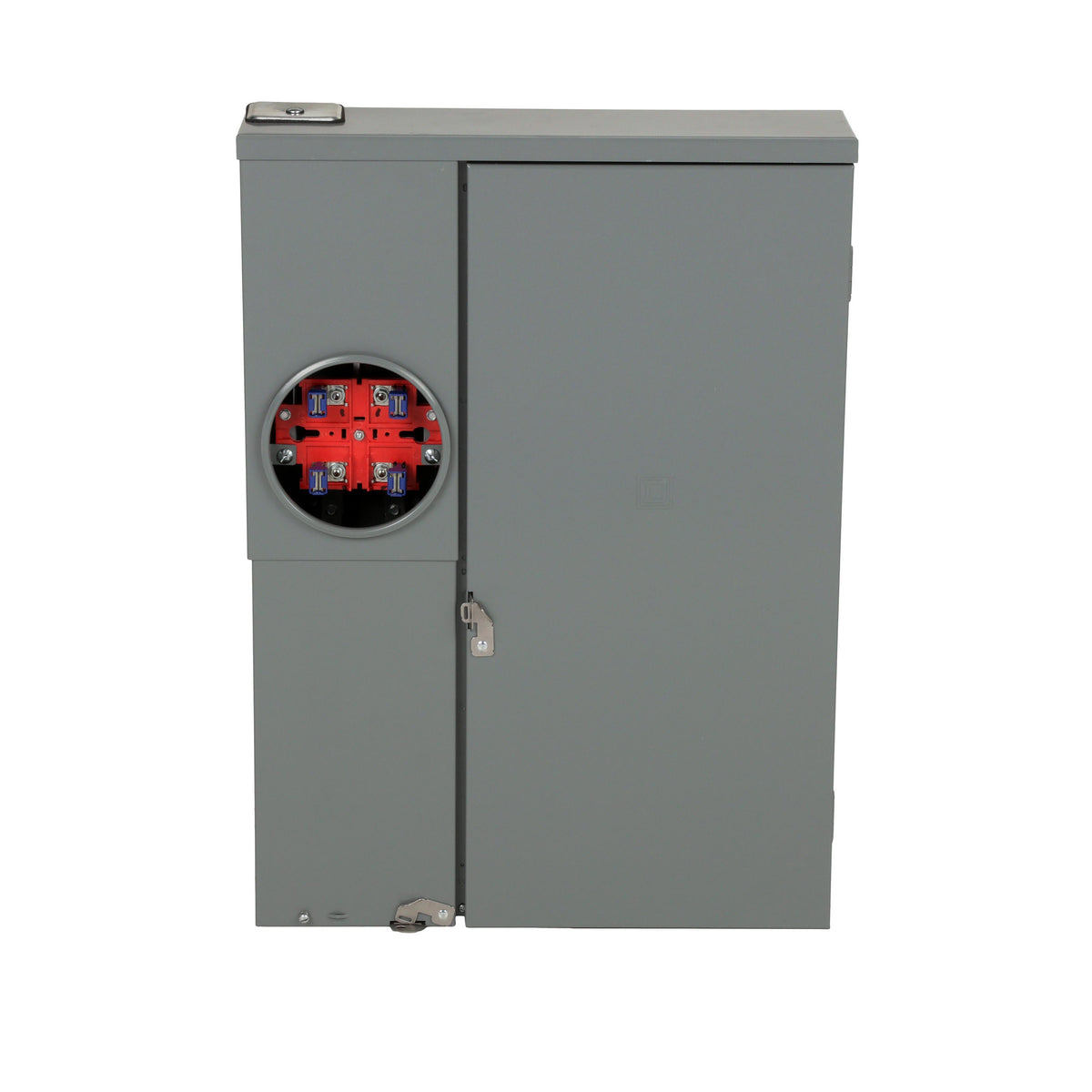

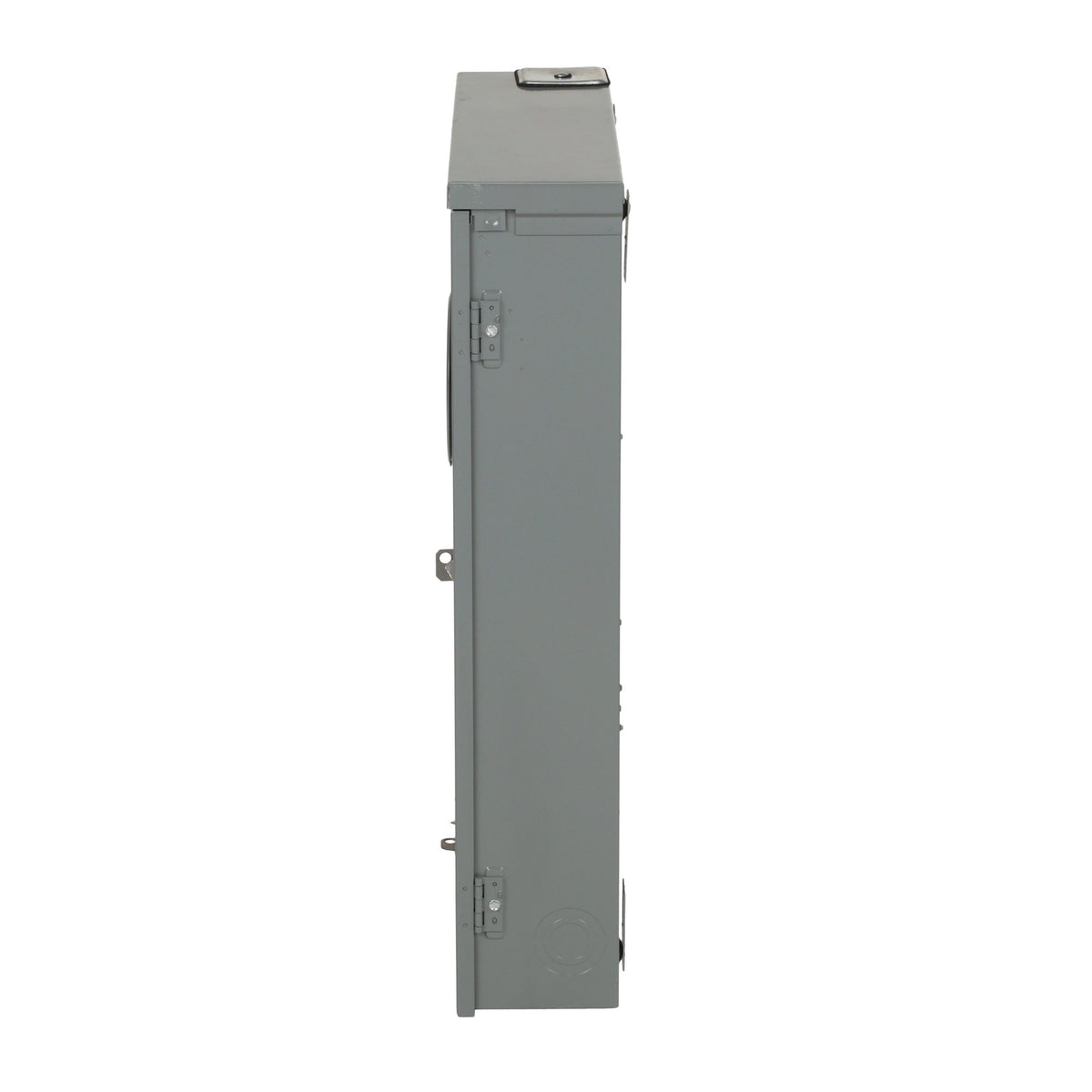

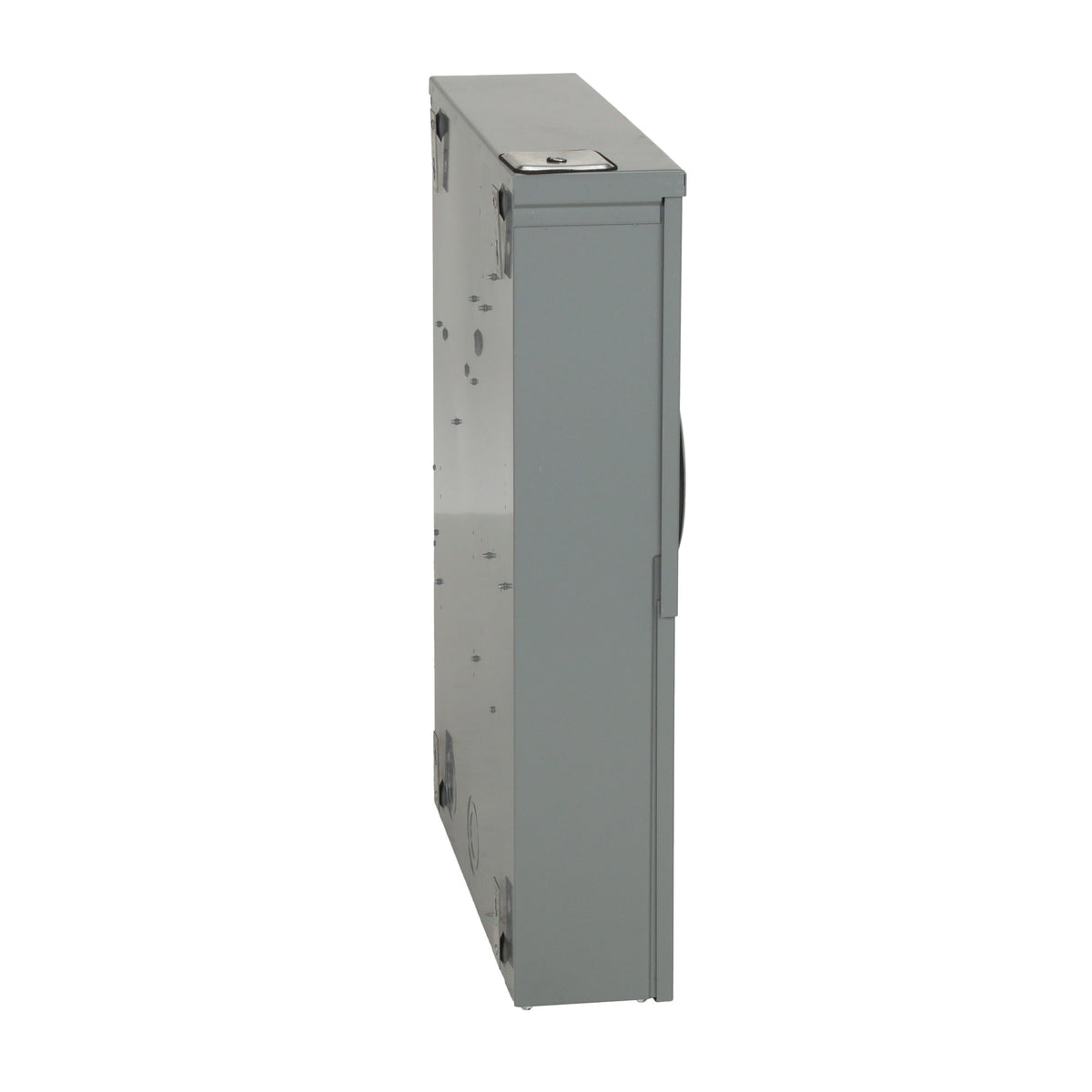

Combination Service Entrance Meter Main - Surface - 1 Phase

Combination Service Entrance Meter Main - Surface - 1 Phase

SC816F200PS

$314.53
$314.53 $191.32
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Homeline ringed meter mains support standard utility meters and a main disconnect breakers
• This single compact solution provides a time and space saving solution for contractors and installers
• Suitable for use as service entrance equipment
• CSED integrate meter socket that, a main disconnect and load center into one compact design

DIMENSIONS

WIDTH

14.85 in

HEIGHT

42.6 in

WEIGHT

52.76 lb

DOCUMENTS & RESOURCES

Specification Sheet
Installation Instructions

PRODUCT OVERVIEW

The Square D® Homeline® Load Centers and Combination Service Entrance Devices, SC816F200PS. Enclosure mounting style performed as Home PoN surface mount device.This HOM ring type Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior single main service disconnect with feed-thru lugs. Meter Socket has no By-pass.

SPECIFICATIONS

Amperage Rating

200 A

Cover Type

Ring

Dimensions

14.85 in W x 3.4 in D x 42.6 in H

Enclosure Type

NEMA 3R

Feed Type

Overhead/Underground

Hub Size

A-L

Mounting Type

Surface

Phase

1

Terminal Type

Line/Load/Service Ground/Feed-Through Lug

Type

2-Pole 3-Wire 8-Circuit 16-Space Field Installed Rainproof

Voltage Rating

120/240 V AC

Wire Size

4 AWG to 250 kcmil/6 AWG to 250 kcmil/14 to 2/0 AWG Aluminum/Copper
