SQUARE D

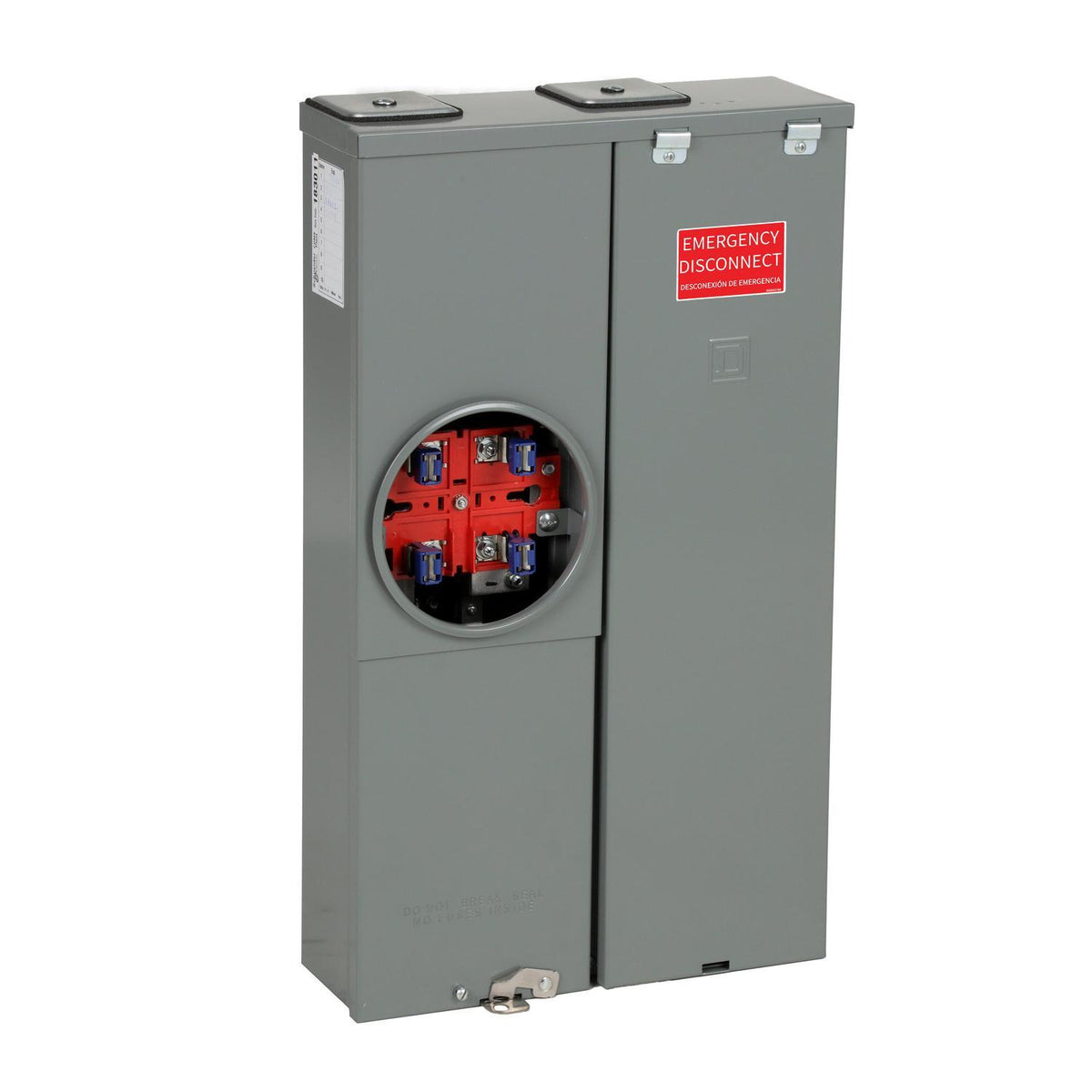

Combination Service Entrance Meter Main - Surface - 125 A

Combination Service Entrance Meter Main - Surface - 125 A

SC1624M125S

$172.01
$172.01 $106.33
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Compatible with Homeline plug-in mount breakers
• This single compact solution provides a time and space saving solution for contractors and installers
• CSED allows for the meter socket to integrate with the load center into one compact design
• Accommodates plug-on secondary surge arrester and features a plug-in deisgn for easy installation
• NEMA type 3R enclosure for outdoor use

DIMENSIONS

WEIGHT

31.43 lb

WARRANTY

18 months

DOCUMENTS & RESOURCES

Specification Sheet
Installation Instructions
User Manual

PRODUCT OVERVIEW

The Square D® Homeline® Load Centers Surface Mount CSED, SC1624M125S, provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2.

SPECIFICATIONS

Amperage Rating

125 A

Cover Type

Ring

Feed Type

Overhead/Underground

Hub Size

A

Mounting Type

Surface

Terminal Type

Line/Lug

Type

16-Space 24-Circuit All-In-One Field Installed Rainproof

Voltage Rating

120/240 V AC

Wire Size

6 to 2/0 AWG
